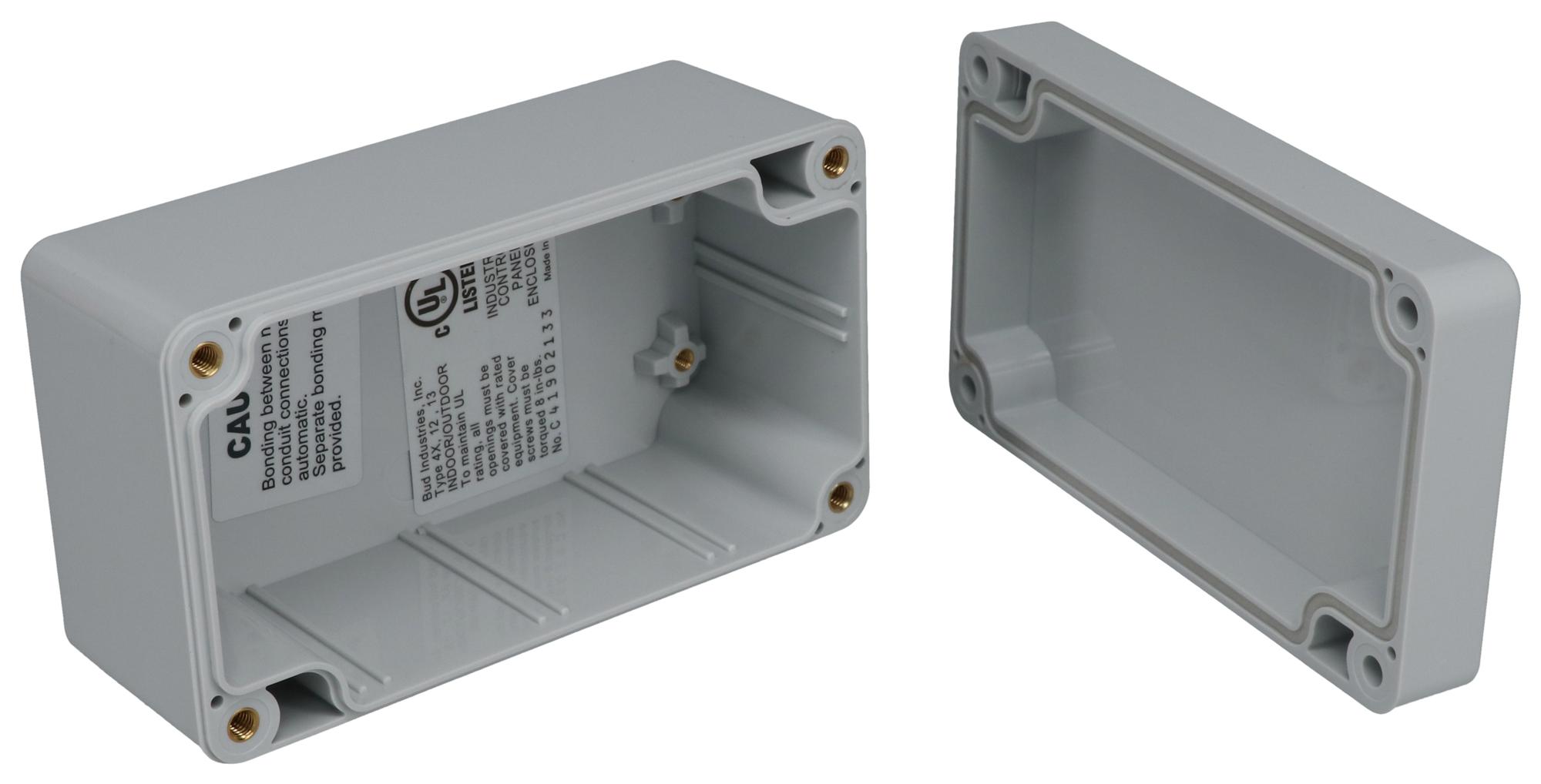

BUD INDUSTRIES PN1322A Sealed Plastic Enclosure
The PN1322A enclosure is a durable non-metallic IP68/NEMA 6P-rated plastic box, designed for outdoor and harsh industrial environments. Made from UV-stabilized polycarbonate, it features a light gray body with a gray or clear cover, stainless steel screws, and molded silicone gaskets for sealing. The enclosure offers wall mounting with external mounting holes and internal guide slots for PCB assembly. It withstands temperatures from -40°C to 120°C, providing reliable protection against moisture, dust, and UV exposure for various industrial applications.
BUD INDUSTRIES PN1322A Sealed Plastic Enclosure Specifications:
- Material: Polycarbonate
- Flammability: UL94-HB
- Color: Light Gray body / Gray or Clear cover
- Sealing: IP68 rated, IEC 529
- Temperature Range: -40°C to 120°C
- Service Temperature Max: 120°C
- Service Temperature Min: -40°C
- Mounting: Wall mounting holes on outside, internal guide slots for PCB mounting
- Screws: Stainless steel, threaded brass inserts
- Gasket Material: Molded Silicone (not installed)
- Enclosure Types: UL508A & NEMA 1, 2, 3, 4, 4x, 6, 6P, 12, 13
- Color Options: Light gray body, gray or clear cover
- UV Resistance: Yes, suitable for outdoor environments
Buy the Bud Industries PN1322A – Reliable Sealed Enclosure for Industrial Applications
Protect your sensitive electronics with the PN1322A sealed plastic enclosure. Designed for outdoor and industrial use, it features IP68/NEMA 6P sealing, UV stabilization, and easy wall mounting. Made from durable polycarbonate with stainless steel screws and molded silicone gasket, it withstands extreme temperatures from -40°C to 120°C. Perfect for outdoor installations, it prevents moisture, dust, and UV exposure. Order online now to secure your project with dependable, high-quality enclosures that meet UL and NEMA standards.
Order your Bud Industries PN1322A series outdoor sealed enclosure today and ensure your industrial projects are protected with reliable IP68-rated quality.
