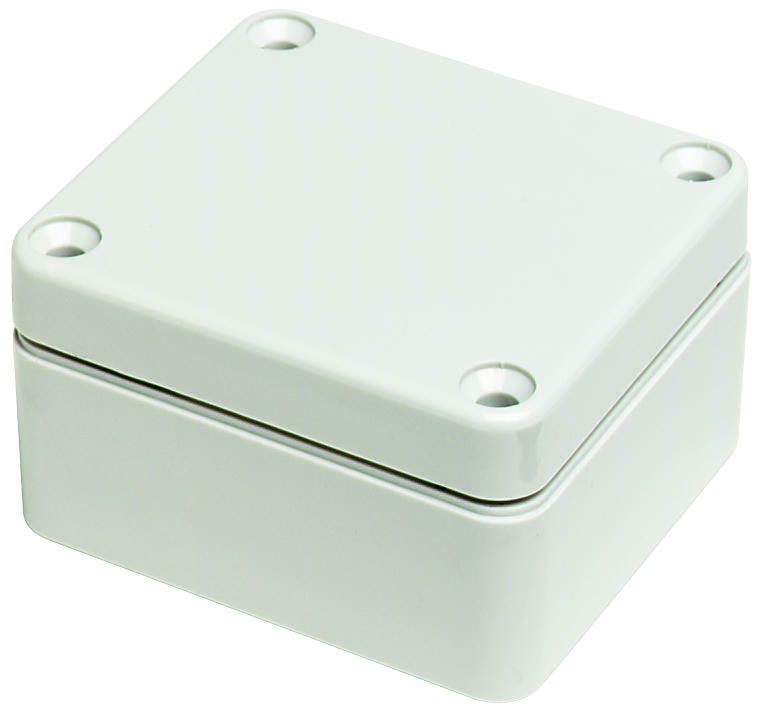

BUD INDUSTRIES PN1324 Polycarbonate Enclosure
The PN-1324 enclosure is a durable polycarbonate housing designed for electrical and electronic applications. Its light gray finish and silicone gasket ensure protection against moisture and dust, meeting NEMA 4X standards. Suitable for PCB enclosures and junction boxes, it features external mounting holes and internal bosses to facilitate horizontal PCB mounting or terminal connections. Rated UL94-HB for flammability and operating from -40°C to 120°C, it offers exceptional thermal stability. Secured with M-4 stainless steel screws into brass inserts, this enclosure provides IP65/NEMA 4X protection, ideal for demanding industrial environments.
BUD INDUSTRIES PN1324 Polycarbonate Enclosure Specifications:
- Material: Polycarbonate with silicone gasket
- Finish: Light gray body and cover
- Flammability Rating: UL94-HB
- Protection Rating: NEMA 4X, IP65
- Operating Temperature Range: -40°C to +120°C
- Mounting: External wall mounting holes
- Internal Features: Bosses for PCB mounting and terminal connections
- Cover Securing: M-4 stainless steel screws threaded into brass inserts
- Dimensions and Tolerances: Dimensions with ±0.015 tolerance unless specified
- Standards: Meets NEMA 1, 2, 4, 4X, 12, 13 enclosures
Buy the Polycarbonate Enclosure 1324 – Reliable Industrial Enclosure for Electrical Applications
Secure your electrical components with the Polycarbonate Enclosure PN1324, a reliable and cost-effective solution. Featuring a durable light gray finish, silicone gasket, and NEMA 4X/IP65 protection, it safeguards against dust and moisture in harsh environments. Easy to mount with external holes and internal bosses, it accommodates PCB installations and terminal connections. Operating from -40°C to 120°C, it withstands extreme temperatures. Designed for industrial use, it provides long-lasting protection and complies with UL standards, making it an excellent choice for electrical and electronic projects.
Order your Polycarbonate Enclosure PN1324 today and ensure your electrical projects are protected with a high-quality, robust housing suitable for industrial applications.
Frequently Asked Questions
Where can I buy BUD INDUSTRIES PN1324?
You can click on the BUY or RFQ button to purchase PN1324 from an authorized BUD INDUSTRIES distributor.
How do I troubleshoot issues or seek technical support for part PN1324?
You can download the PN1324 datasheet or visit the BUD INDUSTRIES website for support.
Who is the manufacturer of PN1324?
BUD INDUSTRIES
