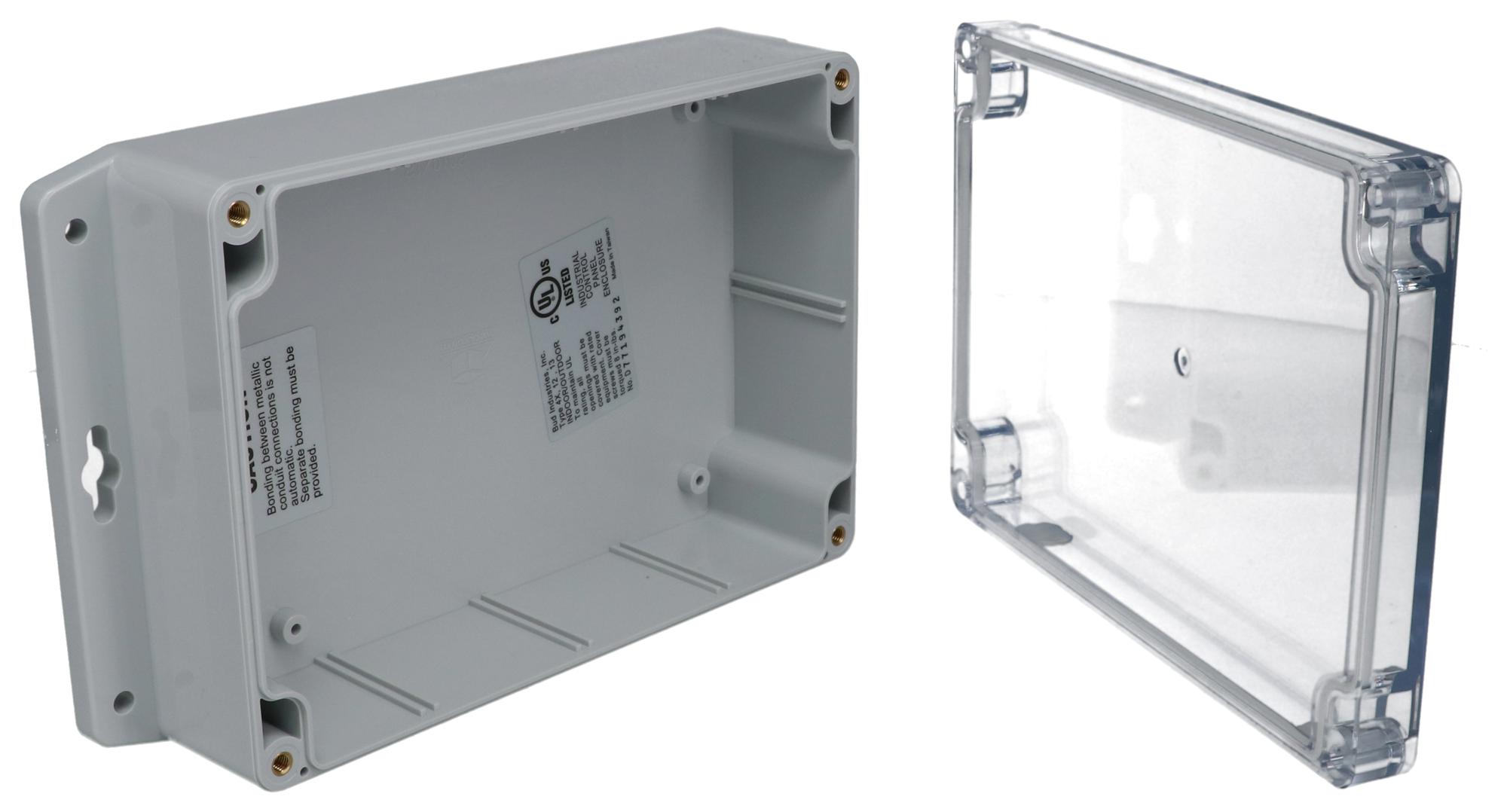

BUD INDUSTRIES PN1324ACMB Outdoor Enclosure
The PN1324ACMB is a durable, non-metallic IP68/NEMA 6P enclosure designed for outdoor use and rugged applications. Made from flame-rated polycarbonate, it features molded silicon gaskets for enhanced sealing against moisture and dust. The enclosure includes wall mounting holes, cover screws, and internal bosses for versatile PCB and terminal mounting. UV stabilized for outdoor environments, it withstands temperatures from -40°C to 120°C. Ideal for automation, controls, and outdoor electrical applications, offering superior protection in harsh conditions.
BUD INDUSTRIES PN1324ACMB Outdoor Enclosure Specifications:
- Material: Polycarbonate
- Flammability Rating: UL94-HB
- Sealing: IP68 of IEC 529
- Enclosure Ratings: UL 508A & NEMA 1, 2, 3, 4, 4x, 6, 6P, 12, 13
- External Dimensions: Length 4.53 inches, Width 2.56 inches, Depth 2.17 inches
- Internal Dimensions: Length 4.29 inches, Width 2.32 inches, Height 1.93 inches
- Wall Mounting Holes and Cover Screws: Outside sealing area
- Temperature Range: -40°C to 120°C
- Service Temperature: Min -40°C, Max 120°C
- Gasket Material: Molded Silicon
- Color: Light Gray body with Gray or Clear cover
- UV Stabilized: Yes
- Certifications: UL Listed E194432
- RoHS Certified: Yes
- Includes internal guide slots for PCB mounting
Buy the Budind Series Enclosure: IP68 NEMA 6P Rugged Plastic Control Box: PN1324ACMB
Order the Budind outdoor enclosure PN1324ACMB online today and ensure your electrical and automation components are protected against harsh outdoor conditions. Crafted from flame-rated polycarbonate, this IP68/NEMA 6P rated enclosure is UV stabilized and suitable for both indoor and outdoor applications. Featuring versatile mounting options, molded silicon gasket for enhanced sealing, and stainless steel screws, it guarantees robust performance and long-lasting reliability. Perfect for outdoor control panels, internet equipment, and automation systems, this enclosure combines superior protection with easy installation, making it the ideal choice for your rugged environmental needs.
Buy Budind PN1324ACMB outdoor enclosure now and experience unmatched durability and protection for your control and automation projects.
