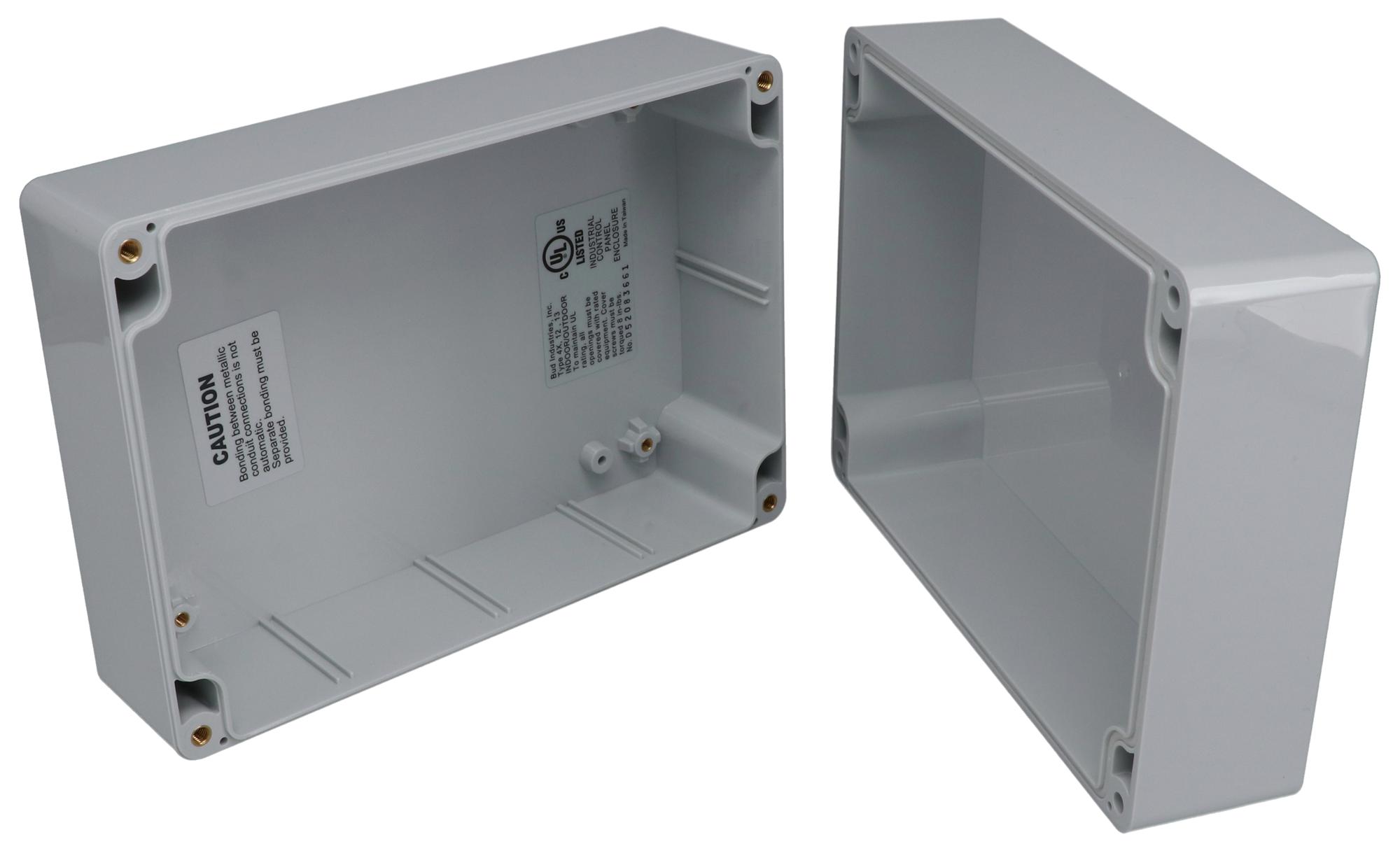

BUD INDUSTRIES PN1327A outdoor waterproof enclosure
The PN1327A is a high-quality non-metallic IP68 NEMA 6P enclosure made from durable polycarbonate. Designed for outdoor applications, it features wall mounting holes, stainless steel screws, and molded silicon gasket for moisture and dust resistance. Suitable for PCB mounting, it withstands service temperatures from -40°C to 120°C, making it reliable and versatile for various industrial and outdoor uses. The enclosure ensures a sealed, UV-resistant, and UL-listed solution for electrical or electronic project needs, providing excellent protection against environmental elements.
BUD INDUSTRIES PN1327A outdoor waterproof enclosure Specifications:
- Material: Polycarbonate
- Flammability Rating: UL94-HB
- Service Temperature Min: -40°C
- Service Temperature Max: 120°C
- Enclosure Ratings: UL 508A, NEMA 1, 2, 3, 4, 4x, 6, 6P, 12, 13
- Color: Light Gray body with Gray or Clear cover
- Protection Level: IP68 IEC 529
- External Dimensions: 6.73 inches length, 4.76 inches width, 2.17 inches depth
- Internal Mounting Features: Guide slots and bosses for PCB and terminal mounting
- Screws: Stainless steel, non-magnetic, into threaded brass inserts
- Gasket: Molded Silicon (not installed)
- Typical applications: Outdoor electronic housing, industrial control enclosures
Buy the Buy Bud Industries PN1327A Enclosure Part Number PN1327A Online
Enhance your project with the durable, UV-resistant, and waterproof PN1327A enclosure available online. Perfect for outdoor and industrial use, it offers IP68 sealing, easy PCB mounting, stainless steel screws, and a molded silicon gasket for moisture and dust protection. Its polycarbonate construction withstands extreme temperatures from -40°C to 120°C, ensuring long-lasting protection for electronics, controls, and sensitive components. Easy to install and compliant with UL standards, this versatile enclosure is essential for outdoor control panels and electronic housings.
Order your Bud Industries Series PN1327A outdoor waterproof enclosure today and secure your electronic projects with reliable IP68 protection.
Frequently Asked Questions
Where can I buy BUD INDUSTRIES PN1327A?
You can click on the BUY or RFQ button to purchase PN1327A from an authorized BUD INDUSTRIES distributor.
How do I troubleshoot issues or seek technical support for part PN1327A?
You can download the PN1327A datasheet or visit the BUD INDUSTRIES website for support.
Who is the manufacturer of PN1327A?
BUD INDUSTRIES
