BUD INDUSTRIES PN1327C Electrical Enclosure

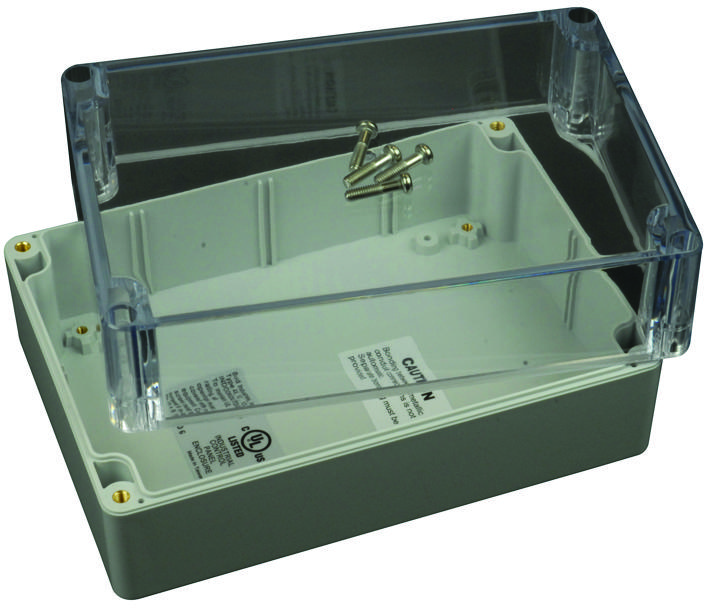

The PN-1327-C is a polycarbonate box enclosure with a light grey body and a clear cover, designed to meet NEMA 1, 2, 4, 4X, 12, and 13 standards. It is ideal for housing printed circuit boards, junction boxes, and electrical components. The enclosure features support bosses for PCB or terminal mounting, external cover screws to prevent ingress, and a silicone gasket for sealing against moisture and dust. It is UL94-HB rated, operates from -40°C to 120°C, and provides IP65 and NEMA-4X protection, suitable for demanding industrial environments.
BUD INDUSTRIES PN1327C Electrical Enclosure Specifications:
- Material: Polycarbonate body with a clear cover or high-impact ABS dark gray enclosure
- Flammability Rating: UL94-HB (UL file #£41613 for polycarbonate, #£56070 for ABS)
- Temperature Range: -40°C to +120°C for polycarbonate, -40°C to +80°C for ABS
- Protection Rating: NEMA 4X, IP65
- Dimensions: Wall mounting holes with 0.238-inch diameter, support bosses for M25 or #4 screws
- Seal: Silicon sponge gasket for moisture and dust prevention
- Fasteners: M4 x 20mm (0.787 inches) stainless steel screws (not supplied), brass inserts included
- Design Features: Support bosses for PCB and terminal mounting, external cover screws, flat top cover
Buy the Polycarbonate Series Enclosure: PN1327C
Order the Polycarbonate Enclosure PN1327C online today and experience the perfect combination of durability, corrosion resistance, and flexibility. Designed to meet rigorous industry standards, it offers superb protection against moisture, dust, and mechanical impacts, making it ideal for electrical and electronic component housing. The enclosure's robust construction, support bosses for easy PCB or terminal mounting, and sealed design ensure optimal performance in demanding environments. Purchase now for fast delivery and reliable performance in your applications.
Get Polycarbonate Series Enclosure PN1327C today—built for durability, corrosion resistance, and reliable protection in industrial environments.
