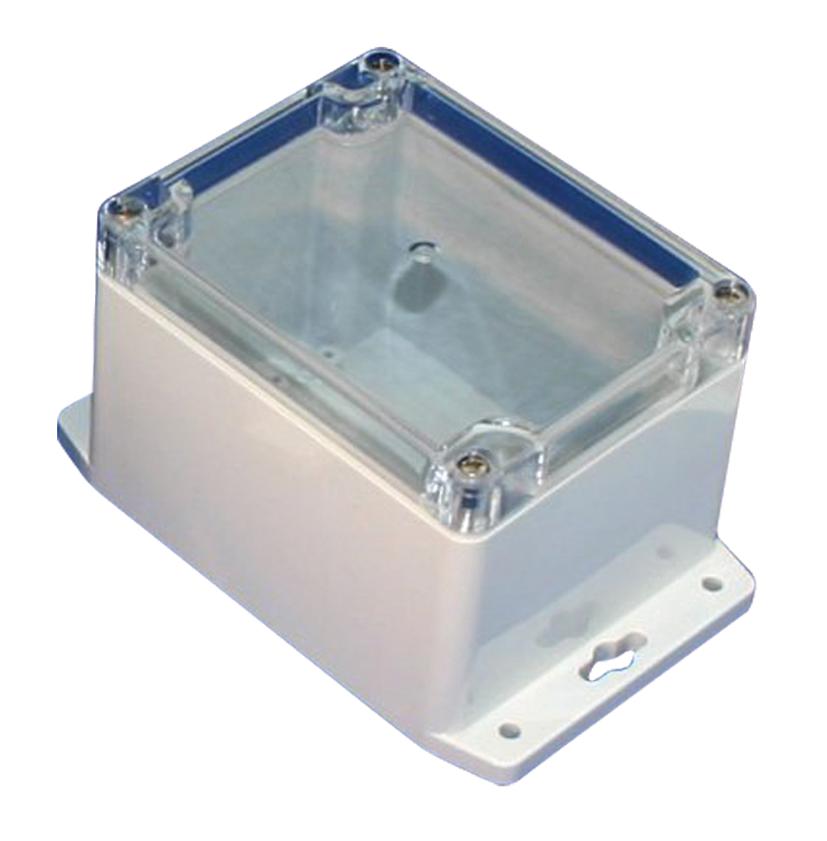

BUD INDUSTRIES PN1331CMB Electrical Enclosure
This NEMA 4X plastic box features a durable UV-stabilized polycarbonate or ABS body with a clear or dark gray cover, respectively. Designed for harsh environments, it meets standards like NEMA 1, 2, 4, 4X, 12, and 13, as well as IEC 529-IP66. The box includes four M4 stainless steel screws for assembly, with dimensions optimized for easy installation. Suitable for outdoor and indoor electrical applications, it offers excellent temperature range (-40°C to +120°C for polycarbonate, -40°C to +80°C for ABS), ensuring reliable performance in demanding conditions.
BUD INDUSTRIES PN1331CMB Electrical Enclosure Specifications:
- Material: Polycarbonate UL94-HB, UV stabilized, service temperature -40°C to +120°C
- Material: ABS UL94-HB, service temperature -40°C to +80°C
- Cover: Clear (CMB) or Dark Gray (DGMB)
- Body & Cover Color: Light Gray (MB) or Dark Gray (DGMB)
- Standards Complied: NEMA 1, 2, 4, 4X, 12, 13, IEC529-IP66
- Screws: Four M4 stainless steel screws included
- Hole Tolerance: +0.005[.12], all other dimensions +0.015[.38]
- Dimensions: Length and width vary per model, designed for easy mounting
- Temperature Range: -40°C to +120°C for polycarbonate, -40°C to +80°C for ABS
- Design: Draft angles 1° outside, 0.5° inside for efficient sealing and fit
Buy the Buy Polycarbonate NEMA 4X Plastic Box Part Number PN1331-CMB Online
Enhance your electrical installations with this robust NEMA 4X plastic enclosure, available in polycarbonate or ABS with UV stabilization. It provides excellent protection against dust, water, and harsh environmental conditions, meeting strict industry standards including NEMA and IEC. Easy to install with included stainless steel screws, it is suitable for outdoor and indoor applications. Its versatile design ensures reliable sealing, with a temperature tolerance for demanding environments, making it the ideal choice for safe, durable electrical systems.
Order your Polycarbonate NEMA 4X Plastic Box PN1331-CMB today and ensure your electrical installations are protected with reliable, durable enclosures.
Frequently Asked Questions
Where can I buy BUD INDUSTRIES PN1331CMB?
You can click on the BUY or RFQ button to purchase PN1331CMB from an authorized BUD INDUSTRIES distributor.
How do I troubleshoot issues or seek technical support for part PN1331CMB?
You can download the PN1331CMB datasheet or visit the BUD INDUSTRIES website for support.
Who is the manufacturer of PN1331CMB?
BUD INDUSTRIES
