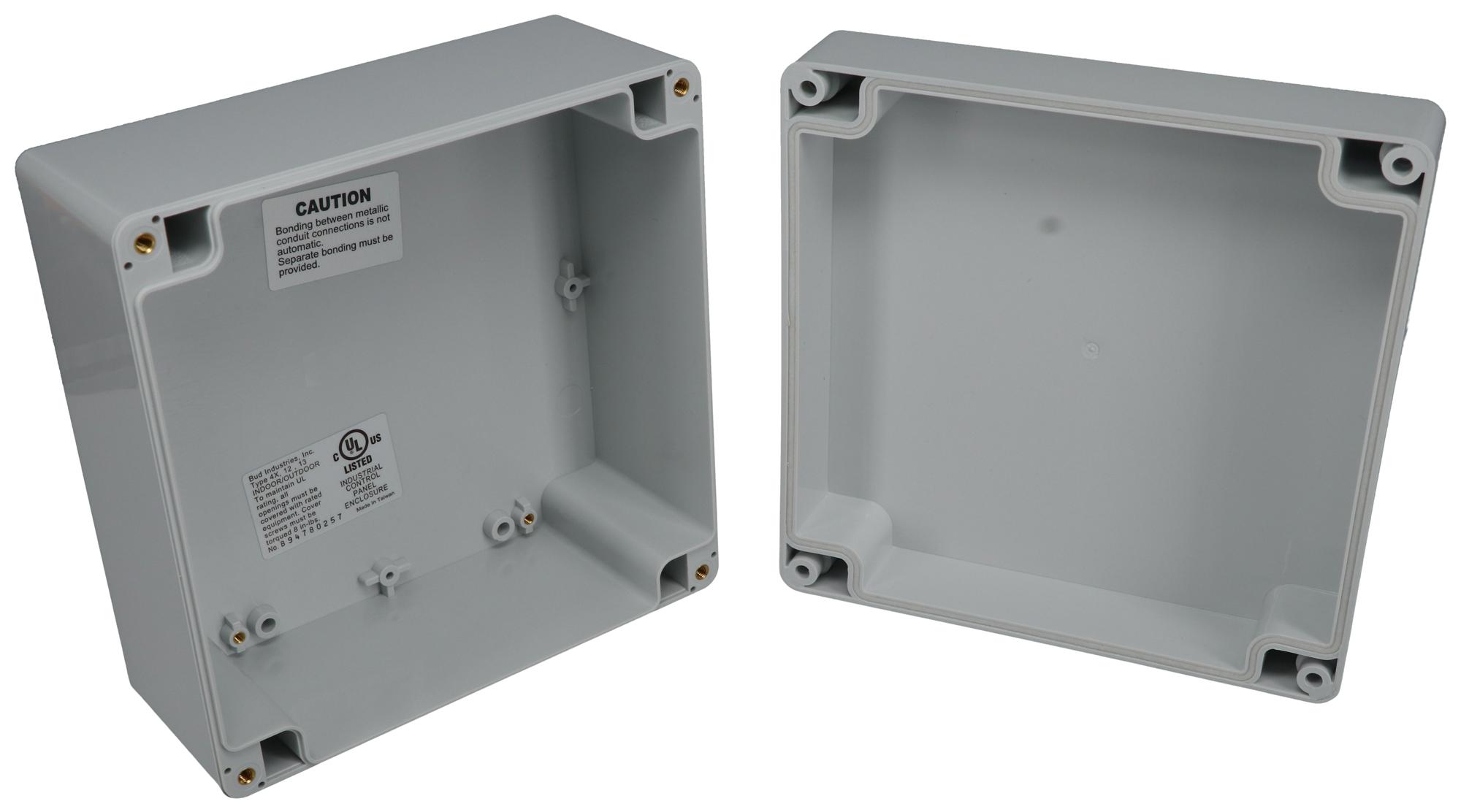

BUD INDUSTRIES PN1339A Outdoor Enclosure
The PN1339A enclosure is a durable, non-metallic, UV-resistant, IP68/NEMA 6P rated polycarbonate box designed for outdoor applications. It features wall mounting holes, external cover screws, and internal guide slots for PCB mounting. The enclosure maintains a service temperature of -40°C to 120°C, with molded silicon gasket material for sealing. Suitable for industrial and electrical projects, it offers reliable protection against moisture, dust, and UV exposure, making it ideal for outdoor equipment housing and control system applications. It combines ruggedness with ease of installation and compliance with UL54-HB flammability standards.
BUD INDUSTRIES PN1339A Outdoor Enclosure Specifications:
- UL508A & NEMA 1, 2, 3, 4, 4x, 6, 6P, 12, and 13 enclosure specifications
- Designed to IP68 of IEC 529
- UL Listed (E194432 Vol 1)
- Wall mounting holes and cover screws outside sealing area
- Internal guide slots for PCB mounting vertically
- Internal bosses for horizontal PCB mounting or terminal connection
- Cover screws are stainless steel, non-magnetic, threaded into brass inserts
- Gasket Material: molded Silicon (not installed)
- Color: Light Gray body / Gray or Clear cover
- Service Temperature Min: -40°C
- Service Temperature Max: 120°C
- Type of Plastic: Polycarbonate
- Flammability Rating: UL94-HB
- UV Resistant for outdoor use
- Overall dimensions vary, suitable for outdoor electrical and control applications
Buy the Bud Industries PN1339A – Reliable Outdoor Enclosure for Industrial Applications
Choose the PN1339A outdoor enclosure for your industrial and outdoor electrical projects. Made of durable polycarbonate, it offers IP68/NEMA 6P protection, UV resistance, and easy mounting options. Its sealed design prevents moisture and dust ingress, ensuring reliable operation in harsh conditions. The enclosure's service temperature ranges from -40°C to 120°C, providing versatility in various climates. With internal guide slots for PCB mounting and stainless steel screws, it combines robustness with ease of installation. Ideal for housing sensitive electrical and control equipment outdoors.
Order your Bud Industries PN1339A outdoor polycarbonate enclosure today and secure your electrical components with a rugged, UV-resistant housing designed for outdoor environments.
Frequently Asked Questions
Where can I buy BUD INDUSTRIES PN1339A?
You can click on the BUY or RFQ button to purchase PN1339A from an authorized BUD INDUSTRIES distributor.
How do I troubleshoot issues or seek technical support for part PN1339A?
You can download the PN1339A datasheet or visit the BUD INDUSTRIES website for support.
Who is the manufacturer of PN1339A?
BUD INDUSTRIES
