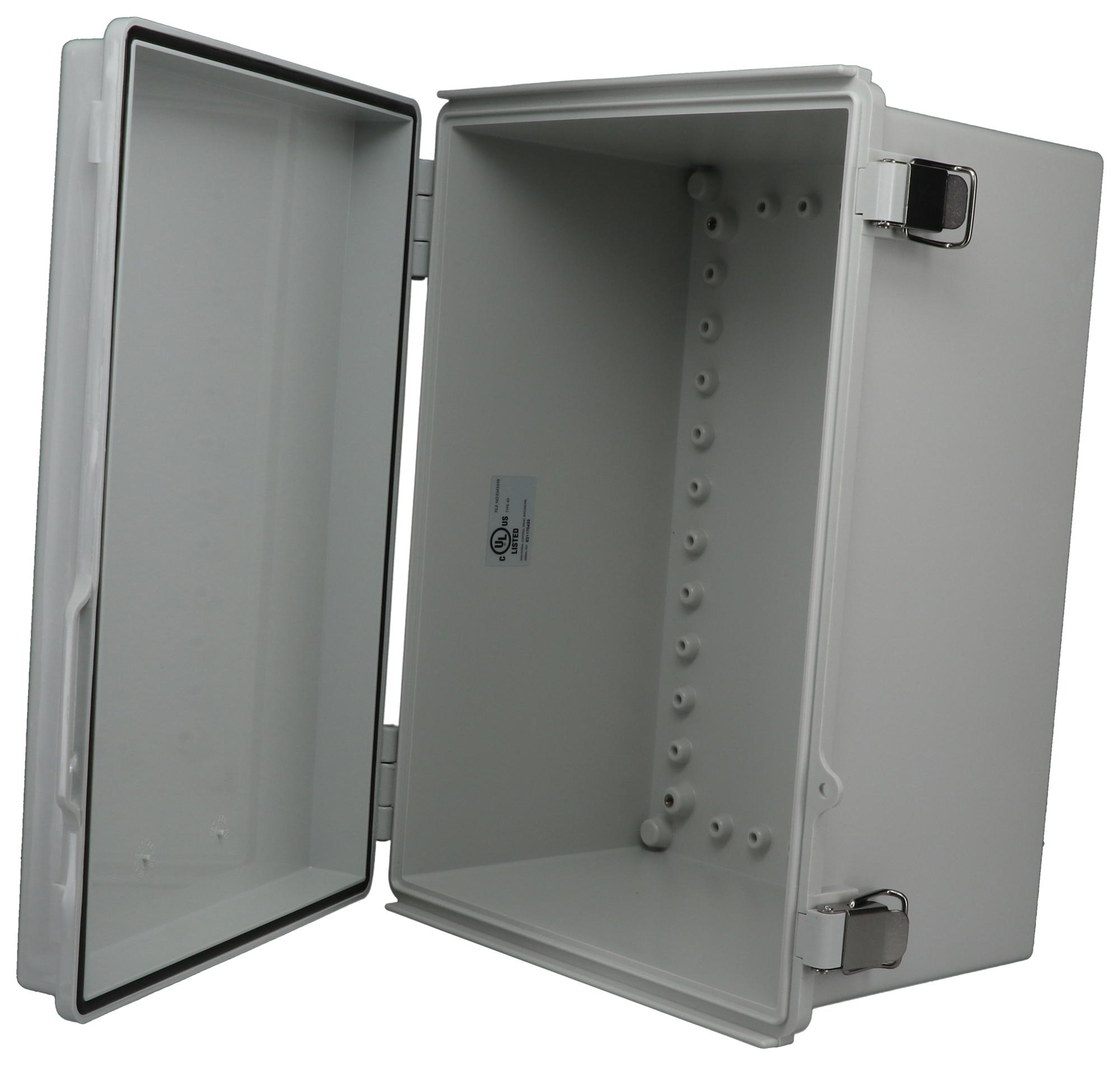

BUD INDUSTRIES PTQ11062 Fiberglass Enclosure
The PTQ Series fiberglass enclosures are made from gray polycarbonate resin filled with 10% glass fiber, combining high impact resistance and durability. Designed for outdoor and harsh environments, these enclosures are rated IP-67 and UL 508, CE, and NEMA 4X/6 compliant, ensuring protection against dust, water, and immersion. Suitable for control boxes, radio housings, lighting, and wash-down environments, they feature nonmetallic captive screws, gasket seals, and options for internal and external mounting. These lightweight yet strong enclosures are ideal for industrial, pharmaceutical, and chemical applications, offering excellent chemical resistance and UV protection.
BUD INDUSTRIES PTQ11062 Fiberglass Enclosure Specifications:
- Body Material: Gray Polycarbonate (PC) resin with 10% glass fiber fill
- Cover Material: Gray Polycarbonate (PC)
- External Dimensions: Varies by model, e.g., PTQ-11062-C is 9.84 inches long, 13.78 inches wide, 7.09 inches deep
- Internal Dimensions: Corresponding internal measurements, e.g., 9.59 inches length, 13.53 inches width, 6.84 inches depth
- Impact Resistance: High impact resistance due to polycarbonate construction
- Rating: IP-67, NEMA type 4X and 6, UL508, CE, RoHS compliant
- Temperature Range: -40°C to +95°C extended exposure
- Seals: Continuous gasket for water and dust resistance
- Fasteners: Non-metallic captive screws
- Accessories: Steel internal mounting plate, external mounting brackets (steel or plastic)
- Application Environments: Control boxes, outdoor equipment, wash-down areas, chemical plants
Buy the Budind Series PTQ Fiberglass Enclosure: PTQ11062-C
Order the Budind PTQ11062-C fiberglass enclosure online today to secure your industrial, chemical, or outdoor control needs. Crafted from impact-resistant polycarbonate with a durable glass fiber fill, this enclosure offers exceptional protection against dust, water, UV light, and chemical exposure. Suitable for control boxes, radio housings, and wash-down environments, it features a continuous gasket, captive screws, and versatile mounting options. With UL, CE, and NEMA ratings, this lightweight yet robust enclosure ensures long-lasting performance and safety in demanding industrial settings. Purchase now to enhance your project’s reliability.
Buy Budind PTQ11062-C fiberglass enclosure now and experience reliable protection for outdoor and industrial control applications.
Frequently Asked Questions
Where can I buy BUD INDUSTRIES PTQ11062?
You can click on the BUY or RFQ button to purchase PTQ11062 from an authorized BUD INDUSTRIES distributor.
How do I troubleshoot issues or seek technical support for part PTQ11062?
You can download the PTQ11062 datasheet or visit the BUD INDUSTRIES website for support.
Who is the manufacturer of PTQ11062?
BUD INDUSTRIES
