BULGIN LIMITED PX0443 Mini USB B connector
This front panel-mounted Mini USB Type B socket features a 5-way crimp connection for reliable PC header connections, providing IP68 water and dustproof protection. Made of durable materials with sealing caps to maintain IP ratings when disconnected, it is suitable for harsh environments, including marine applications. The connector mates with compatible cables PX0441 and PX0442, and ensures high noise immunity with epoxy overmoulding. It withstands cyclic salt mist tests, supporting long-term reliability in demanding industrial, marine, and outdoor settings, with an operational temperature range of -55°C to +70°C.
BULGIN LIMITED PX0443 Mini USB B connector Specifications:
- Waterproof and dustproof to IP68 (EN60529), suitable for submersion up to 10m depth for 2 weeks
- Operating temperature from -55°C to +70°C, salt mist resistant, marine severity level 1
- No. of poles: 4 and 5, Current rating: 1A, Voltage rating: 30Vac, 42Vde
- Contact resistance: 50 milliohm max, USB version 2.0 performance up to 480Mbps
- Shell material: steel with nickel plating, Contact material: copper alloy with 50 micro inch gold plating
- Connector body: UL94V-0 rated PVC, Sealing: O-rings for IP68 sealing, Mating cycles: 5,000
- Cable jacket: PVC (black), Screen: Tinned copper braid, Insulation: Polyphen
- Cable construction includes 2x28AWG or 2x24AWG conductors, diameter varies from 4.8mm to 5.2mm
- Enclosure features a sealing cap to maintain IP rating when disconnected, compatible with screening can for EMC shielding
- Designed for high noise immunity, corrosion resistance, and secure connection in industrial and marine applications

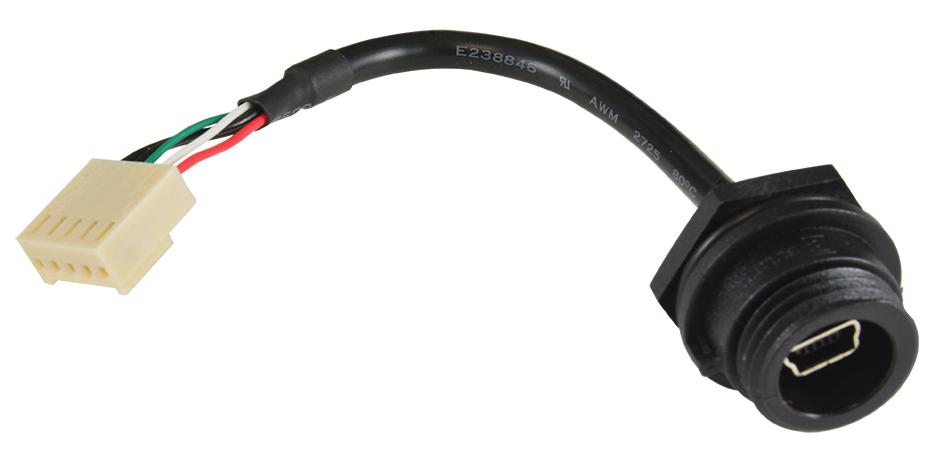

Buy the Bulgin Series 400 USB Sealed Connector: PX0443
Secure your equipment with the rugged, IP68-rated Mini USB B connector from Bulgin Series 400. Designed for front panel mounting, it offers excellent waterproof and dustproof protection, making it ideal for industrial, marine, and outdoor environments. With a reliable 5-way crimp connection, this connector mates seamlessly with PX0441 and PX0442 cables, ensuring high-speed data transfer up to 480Mbps. Its durable materials and sealing features guarantee long-term performance even under cyclic salt mist exposure, providing peace of mind in demanding conditions.
Order your Bulgin Series 400 USB Sealed Connector PX0443 today and ensure your projects benefit from waterproof, dustproof, and reliable USB connections.
Frequently Asked Questions
Where can I buy BULGIN LIMITED PX0443?
You can click on the BUY or RFQ button to purchase PX0443 from an authorized BULGIN LIMITED distributor.
How do I troubleshoot issues or seek technical support for part PX0443?
You can download the PX0443 datasheet or visit the BULGIN LIMITED website for support.
Who is the manufacturer of PX0443?
BULGIN LIMITED
