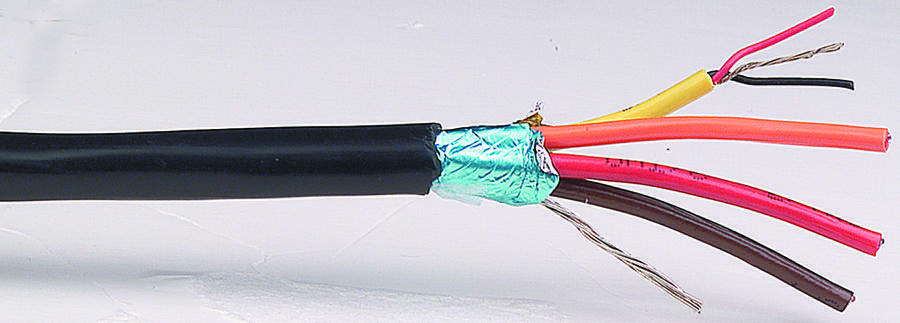

BELDEN 1220BB591000 Multi-Conductor Cable
The BELDEN 1220B B591000 multi-conductor cable is a versatile solution for data transmission and power distribution in industrial environments. Its 22 AWG stranded conductor, combined with Datalene insulation and Beldfoil shielding, ensures reliable signal integrity and minimizes signal loss. The bonded pair jackets and shields simplify installation and maintenance, while the PVC outer jacket provides durability and protection. This cable is ideal for applications requiring flexibility, low capacitance, and robust performance.
BELDEN 1220BB591000 Multi-Conductor Cable Specifications:
- Conductor AWG: 22
- Number of Pairs: 12
- Conductor Stranding: 7x30
- Conductor Material: TC - Tinned Copper
- Insulation Material: FHDPE - Foam High Density Polyethylene
- Insulation Wall Thickness (in.): 0.015
- Insulation Dia. (in.): 0.060
- Inner Shield Material: Aluminum Foil-Polyester Tape
- Inner Shield Coverage (%): 100
- Inner Shield Drain Wire AWG: 22
- Inner Shield Drain Wire Stranding: 7x30
- Inner Shield Drain Wire Conductor Material: TC - Tinned Copper
- Inner Jacket Material: PVC - Polyvinyl Chloride
- Inner Jacket Nom Wall (in.): 0.015
- Inner Jacket Nom. Dia. (in.): 0.153
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Wall Thickness (in.): 0.074
- Overall Nominal Diameter: 0.760 in.
- Operating Temperature Range: -20°C To +60°C
- Non-UL Temperature Rating: 60°C
- Bulk Cable Weight: 271 lbs/1000 ft.
- Max Recommended Pulling Tension: 328 lbs
- Min Bend Radius/Minor Axis: 7.750 in.
- EU RoHS Compliant: Yes
- Plenum: No
- m. Inductance (µH/ft): 0.20
- m. Capacitance Conductor to Conductor (pF/ft): 19
- m. Capacitance Cond. to Other Conductor & Shield (pF/ft): 35
- VP (%): 78
- m. Conductor DC Resistance (Ohm/1000 ft): 15
- Ind Pair Nominal Shield DC Resistance @ 20 Deg. C: 10.600 Ohm/1000 ft
- x. Operating Voltage - Non-UL (V RMS): 150/300
