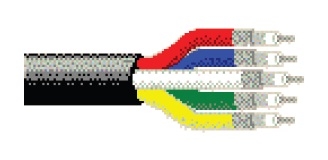

BELDEN 1417BBLK1000 RGB Video Coax Cable
The BELDEN 1417B-BLK-1000 RGB Video Coax Cable is a premium solution for transmitting RGB video signals. Constructed with 26 AWG stranded bare copper conductors, foam HDPE insulation, and a Duofoil +95% tinned copper braid shield, this cable ensures minimal signal loss and interference. The flexible PVC jacket allows for easy routing in tight spaces, making it suitable for a wide range of applications including professional audio-visual setups, broadcast equipment, and industrial video systems. Its 75 Ohm characteristic impedance and robust construction guarantee reliable performance and longevity.
BELDEN 1417BBLK1000 RGB Video Coax Cable Specifications:
- Conductor AWG: 26
- Stranding: 7x34
- Conductor Material: Bare Copper
- Conductor Diameter: 0.019 in
- Number of Conductors: 5
- Insulation Material: Foam Polyethylene
- Insulation Diameter: 0.089 in
- Inner Shield Type: Tri-laminate (Alum+Poly+Alum)
- Inner Shield Coverage: 100%
- Inner Shield Material: Duofoil®
- Inner Shield Material Trade Name: Duofoil®
- Inner Jacket Material: PVC
- Inner Jacket Diameter: 0.146 in
- Outer Jacket Material: PVC
- Outer Jacket Diameter: 0.477 in
- Separator Material: Polyester Tape
- Conductor DCR: 41.5 Ohm/1000ft
- Nominal Inner Shield DCR: 8.6 Ohm/1000ft
- Outer Conductor DCR: 8.6 Ohm/1000ft
- Capacitance: 17.3 pF/ft
- Nominal Characteristic Impedance: 75 Ohm
- Minimum Return Loss (RL): 25 dB (10-40 MHz)
- Insertion Loss (1 MHz): 0.6 dB/100ft
- Insertion Loss (5 MHz): 1.3 dB/100ft
- Insertion Loss (10 MHz): 1.8 dB/100ft
- Insertion Loss (30 MHz): 3.1 dB/100ft
- Insertion Loss (50 MHz): 3.9 dB/100ft
- Insertion Loss (100 MHz): 5.4 dB/100ft
- Insertion Loss (200 MHz): 7.5 dB/100ft
- Insertion Loss (400 MHz): 10.4 dB/100ft
- Insertion Loss (700 MHz): 13.5 dB/100ft
- Insertion Loss (900 MHz): 15.2 dB/100ft
- Insertion Loss (1000 MHz): 15.9 dB/100ft
- Nominal Velocity of Propagation (VP): 78%
- Non-UL Voltage Rating: 30 V RMS
- Voltage Rating [V]: 150 V RMS
- Non-UL Temp Rating: 60°C
- Operating Temperature Range: -40°C To +60°C
- Bulk Cable Weight: 103 lbs/1000ft
- Max Pull Tension: 172 lbs
- Min Bend Radius/Minor Axis: 4.75 in
- CPR Euroclass: Eca
- RG Type: Mini 59
- Series Type: 59
- Environmental Space: Indoor (Not Riser or Plenum)
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2003/11/EC (BFR): Yes
- EU Directive 2011/65/EU (RoHS 2): Yes
- EU Directive 2012/19/EU (WEEE): Yes
- EU Directive 2015/863/EU (RoHS 2 amendment): Yes
- EU CE Mark: No
