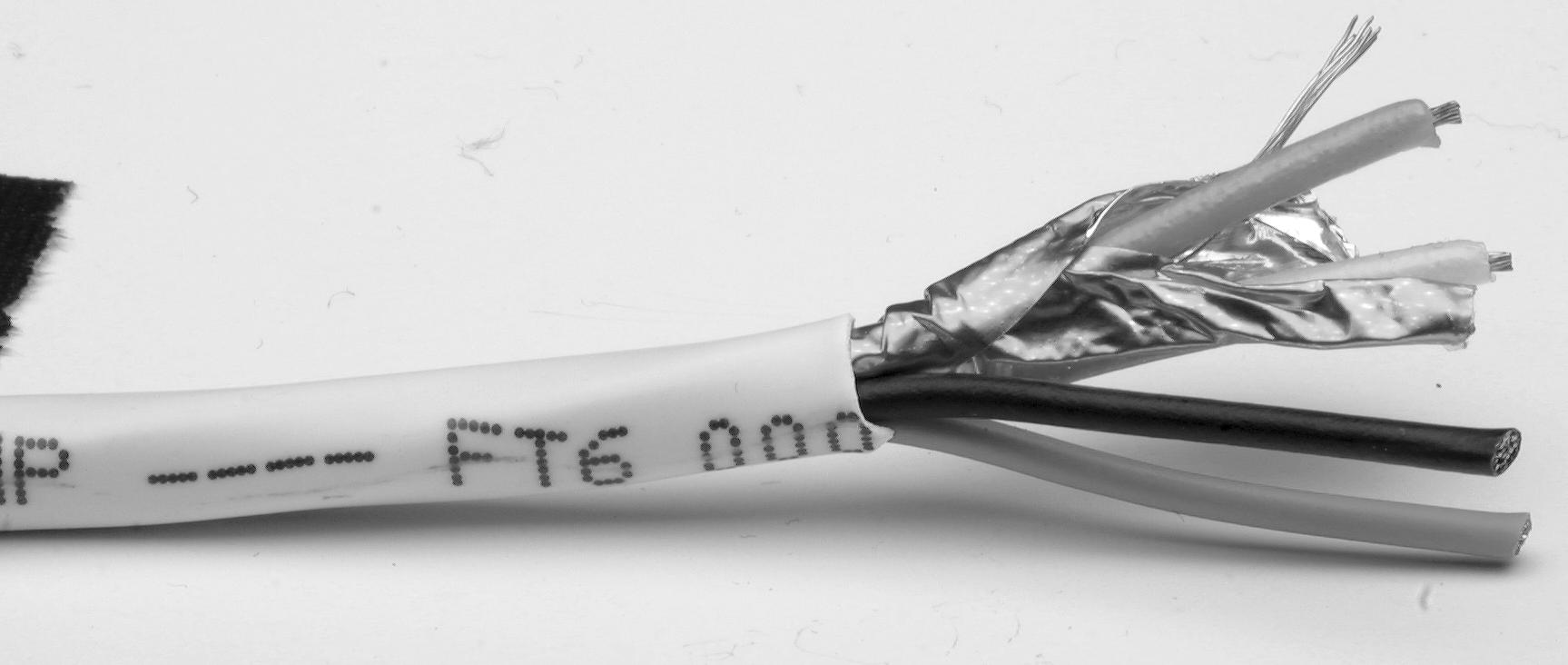

BELDEN 1502R0101000 Multi-Conductor Multimedia Cable
The Belden 1502R Multi-Conductor Multimedia Control Cable is a versatile solution for applications requiring the transmission of both data and power. Constructed with 22 AWG stranded tinned copper conductors for data pairs and 18 AWG conductors for the power pair, this cable offers excellent signal integrity and power delivery capabilities. The FPE insulation on the data pairs minimizes signal loss, while the F-R PVC jacket provides flame retardancy and durability. Common applications include multimedia installations, security systems, and control panels where a single cable solution simplifies installation and reduces clutter. The cable's robust construction and Belden's quality assurance ensure reliable performance in demanding environments.
BELDEN 1502R0101000 Multi-Conductor Multimedia Cable Specifications:
- Conductor AWG: 22, 18
- Conductor Material: TC - Tinned Copper
- Insulation Material: HDFPE - High Density Foam Polyethylene, F-R PVC
- Insulation Wall Thickness (in.): 0.025, 0.013
- Inner Shield Material: Aluminum Foil-Polyester Tape
- Inner Shield Drain Wire AWG: 24
- Outer Jacket Material: F-R PVC - Flame Retardant Polyvinyl Chloride
- Outer Jacket Ripcord: Yes
- Overall Nominal Diameter (in.): 0.250
- Operating Temperature Range: -20°C To +75°C
- Non-UL Temperature Rating: 75°C
- Bulk Cable Weight: 40 lbs/1000 ft.
- Max. Recommended Pulling Tension: 59.800 lbs.
- Min. Bend Radius/Minor Axis: 2.500 in.
- Nominal Characteristic Impedance (Ohm): 100
- Nom. Inductance (µH/ft): 0.232 (22 AWG), 0.168 (18 AWG)
- Nom. Capacitance Conductor to Conductor (pF/ft): 14 (22 AWG Pair), 29 (18 AWG Pair)
- Nom. Conductor DC Resistance (Ohm/1000 ft): 16.3 (22 AWG), 6.9 (18 AWG)
- Max. Operating Voltage - UL: 300 V RMS
- Max. Recommended Current: 3.8 Amps per conductor @ 25°C (22 AWG); 7.2 Amps per conductor @ 25°C (18 AWG)
