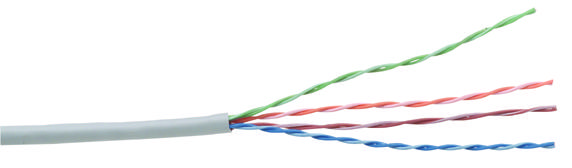

BELDEN 1585LC0091000 Multi-Conductor Cable
The Belden 1585LC Multi-Conductor Cable is a high-performance Category 5e cable designed for demanding premise horizontal cabling applications. Its U/UTP (Unshielded Twisted Pair) construction provides excellent signal integrity while the plenum-rated CMP jacket allows for installation in air handling spaces. Constructed with 24 AWG solid bare copper conductors, FEP insulation, and a FEP jacket, this cable is suitable for Gigabit Ethernet, 100BaseTX, AES/EBU, and digital video applications. The cable is also compliant with various industry standards including TIA 568.C.2 and ISO/IEC 11801 ed 2.1.
BELDEN 1585LC0091000 Multi-Conductor Cable Specifications:
- Conductor AWG: 24
- Number of Pairs: 4
- Conductor Material: BC - Bare Copper
- Total Number of Conductors: 8
- Insulation Material: FEP - Fluorinated Ethylene Propylene
- Outer Jacket Material: FEP - Fluorinated Ethylene Propylene
- Outer Jacket Diameter (in.): 0.184
- Operating Temperature Range: -40°C To +150°C
- Bulk Cable Weight: 25 lbs/1000 ft.
- Max. Recommended Pulling Tension: 35 lbs.
- Min. Bend Radius/Minor Axis: 1 in.
- Min. Bend/Installation: 1.800 in.
- NEC/UL Specification: CMP, FHC 25/50
- EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
- Plenum (Y/N): Yes
- Nominal Mutual Capacitance (pF/ft): 15
- Maximum Capacitance Unbalance (pF/100 m): 330
- Nominal Velocity of Propagation (%): 72
- Maximum Delay (ns/100 m): 510 @ 100MHz
- Maximum Conductor DC Resistance (Ohm/100 m): 9.38
- Maximum DCR Unbalanced (%): 3
- Operating Voltage - UL: 300 V RMS
