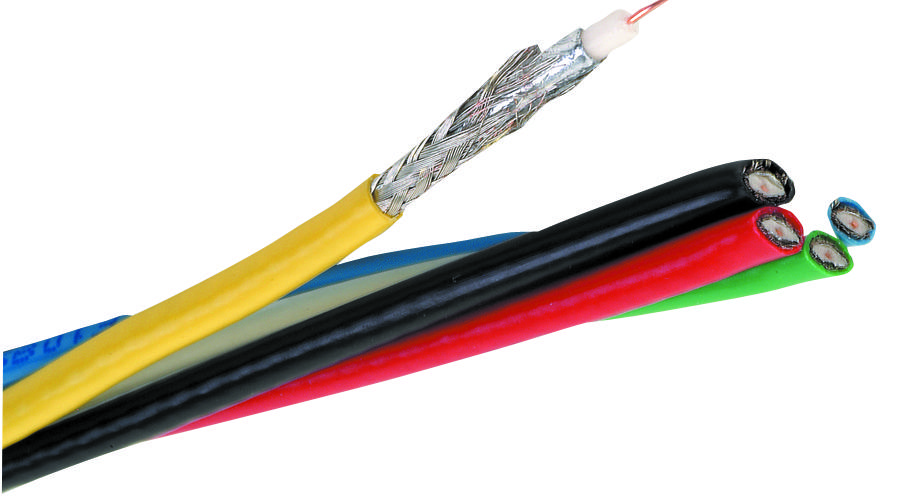

BELDEN 1855S60001000 Coax Bundled Miniature Cable
The BELDEN 1855S6 is a miniature coax cable designed for applications where space is limited but reliable signal transmission is essential. It features 23 AWG solid bare copper conductors, gas-injected foam HDPE insulation, Duofoil shielding (100% coverage) with a tinned copper braid (95% coverage), and an individual PVC jacket. This construction provides excellent signal integrity and durability. The cable is suitable for a wide range of applications including telecommunications, data transmission, and instrumentation where a compact and high-performance coaxial cable is required. It meets various industry standards and is RoHS compliant, ensuring environmental responsibility.
BELDEN 1855S60001000 Coax Bundled Miniature Cable Specifications:
- Conductor AWG: 23
- Number of Coax Conductors: 6
- Conductor Material: BC - Bare Copper
- Conductor Diameter (in.): 0.023
- Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
- Insulation Diameter (in.): 0.102
- Inner Shield Material: Aluminum Foil-Polyester Tape-Aluminum Foil
- Inner Shield Coverage (%): 100
- Braid Material: TC - Tinned Copper
- Braid Coverage (%): 95
- Inner Jacket Material: PVC - Polyvinyl Chloride
- Inner Jacket Diameter (in.): 0.159
- Inner Jacket Color Code: Red, Green, Blue, White, Yellow, Brown
- Outer Jacket Material: Unjacketed
- Overall Nominal Diameter: 0.477 in.
- Operating Temperature Range: -35°C To +75°C
- UL Temperature Rating: 60°C
- Non-UL Temperature Rating: 75°C
- Bulk Cable Weight: 114 lbs/1000 ft.
- Max Recommended Pulling Tension: 216 lbs.
- Min Bend Radius/Minor Axis: 6 in.
- NEC/UL Specification: CMR
- CEC/C(UL) Specification: CMG
- EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
- Nominal Characteristic Impedance (Ohm): 75
- Nominal Inductance (µH/ft): 0.106
- Nominal Capacitance Conductor to Shield (pF/ft): 16.5
- Nominal Velocity of Propagation (%): 83
- Nominal Delay (ns/ft): 1.24
- Nom Conductor DC Resistance (Ohm/1000 ft): 20.1
- Nom Inner Shield DC Resistance (Ohm/1000 ft): 7.6
- Attenuation (dB/100 ft) @ 1 MHz: 0.4
- Attenuation (dB/100 ft) @ 3.6 MHz: 0.8
- Attenuation (dB/100 ft) @ 10 MHz: 1.2
- Attenuation (dB/100 ft) @ 71.5 MHz: 3.1
- Attenuation (dB/100 ft) @ 135 MHz: 3.8
- Attenuation (dB/100 ft) @ 270 MHz: 5.4
- Attenuation (dB/100 ft) @ 360 MHz: 6.2
- Attenuation (dB/100 ft) @ 540 MHz: 7.7
- Attenuation (dB/100 ft) @ 720 MHz: 9.1
- Attenuation (dB/100 ft) @ 750 MHz: 9.5
- Attenuation (dB/100 ft) @ 1000 MHz: 10.5
- Attenuation (dB/100 ft) @ 1500 MHz: 13.0
- Attenuation (dB/100 ft) @ 2500 MHz: 16.9
- Attenuation (dB/100 ft) @ 3000 MHz: 18.5
