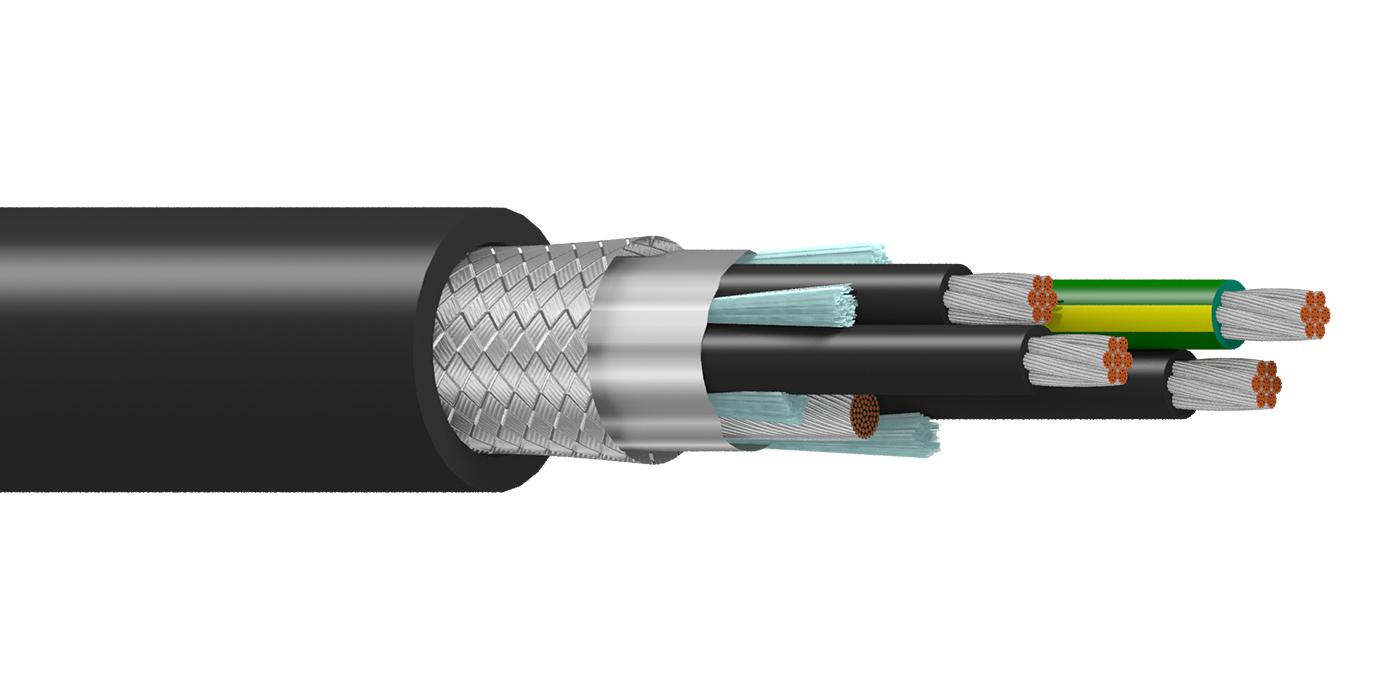

BELDEN 29502F0101000 VFD flexible motor cable
The Belden 29502F VFD flexible motor supply cable is designed for high-performance variable frequency drive applications, allowing reliable connections in harsh environments. It features 3 conductors of 12AWG tinned copper, XLPE insulation, and a TPE outer jacket for optimal flexibility and durability. Suitable for indoor and outdoor use, it withstands exposure to oils, sunlight, and burial conditions. Certified to UL and IEC standards, this 600/1000V cable ensures safe, efficient power delivery for AC motors and drive systems, even in demanding industrial settings.
BELDEN 29502F0101000 VFD flexible motor cable Specifications:
- Conductor Material: Tinned Copper, 12AWG, 7x24x34 strands
- Insulation: XLPE (Cross-Linked Polyethylene)
- Ground Insulation: PVC, Green/Yellow stripe
- Outer Shield: Tape + Braid Tri-Laminate (Alum+Poly+Alum) + Tinned Copper (85%)
- Outer Jacket: TPE (Thermoplastic Elastomer), 0.073in thick
- Cable Diameter: 0.661 in
- Voltage Rating: 600/1000V (UL, IEC compliant)
- Temperature Range: -40°C to +90°C (Dry/Wet)
- Current Capacity: 30 Amps per conductor at 30°C
- Standards & Certifications: UL1685, FT4 flame, UL Flexible Motor Supply, UL/IEC compliance, Prop 65, RoHS, WEEE
- Environmental Resistance: Sunlight, oil, burial, high flex, abrasion
- Applications: Variable Frequency Drives, AC motors, drive systems, hard-to-reach and harsh environments
Buy the Belden Series VFD Flexible Motor Cable: 29502F
Purchase the Belden VFD flexible motor supply cable online today to ensure your electrical systems operate efficiently in demanding industrial environments. This highly flexible, UL-listed cable features XLPE insulation and a TPE outer jacket, providing exceptional durability, oil and sunlight resistance, ideal for indoor and outdoor applications. Its 12AWG tinned copper conductors deliver reliable current capacity up to 30 Amps per conductor, supporting variable frequency drives and AC motors. Secure fast shipping and expert support for all your industrial wiring needs.
Order your Belden Series VFD Flexible Motor Cable today and ensure reliable power delivery for your industrial motor and drive systems.
Frequently Asked Questions
Where can I buy BELDEN 29502F0101000?
You can click on the BUY or RFQ button to purchase 29502F0101000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 29502F0101000?
You can download the 29502F0101000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 29502F0101000?
BELDEN
