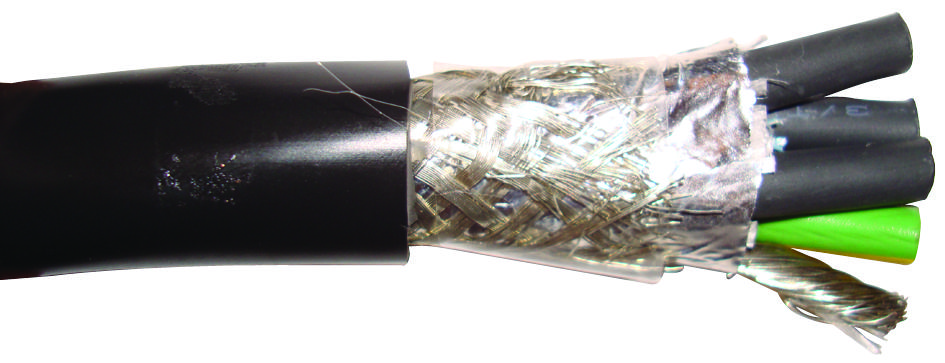

BELDEN 29503010100 Motor Supply Cable
The 29503 010100 is a 30.48-meter, four-core shielded motor supply cable designed for use with variable frequency drives and AC motor drives. It features stranded tinned copper conductors, a PVC-insulated ground wire, an overall Duofoil® shield with 100% coverage, a tinned copper braid shield with 85% coverage, a tinned copper drain wire, and a sun- & oil-resistant PVC jacket. With a maximum pull tension of 591 lbs and suitable for indoor, outdoor, and burial applications, it ensures reliable power delivery in industrial environments.
BELDEN 29503010100 Motor Supply Cable Specifications:
- Number of Conductors: 4 (3 insulated + 1 ground)
- Conductors Material: Tinned Copper
- Ground Wire: PVC Insulation, AWG 0
- Insulation Material: Cross Linked Polyolefin (XLPE), 0.045" thick
- Insulation Resistance: 300 Megaohms/1000 ft
- Outer Shield: Duofoil® Aluminum-Polyester Tape and Tinned Copper Braid (85% coverage)
- Outer Shield Material: Aluminum foil and Tinned Copper Braid
- Outer Jacket: Sun- and oil-resistant PVC, suitable for outdoor and burial use
- Weight: 350 lbs per 1000 ft reel
- Maximum Pulling Tension: 592 lbs
- Bend Radius (Minor Axis): 5.5 inches
- Temperature Range: -40°C to +90°C, UL Rating: 90°C
- Applicable Standards: UL 1685, CSA FT4, IEEE 1202
- Applications: AC motor drives, VFD, variable frequency drives, industrial power supply
- Compliance: RoHS, ELV, WEEE, Prop 65, China RoHS
Buy the Buy Belden 29503010100 Part Number 29503010100 Online
Get your Belden motor supply cable 29503010100 online today for dependable energy transfer in industrial settings. Designed with shielded conductors, durable PVC jacket, and high-temperature rating, this cable ensures long-lasting performance. Its shielded design offers excellent EMI protection, making it ideal for VFDs and motor drives. With UL and CSA approvals, and compliance with RoHS directives, this cable is perfect for outdoor, indoor, and burial applications. Purchase online now for fast delivery and the quality you can trust in demanding environments.
Order your Belden 29503010100 high-durability motor supply cable today and guarantee reliable power and excellent performance for your industrial projects.
