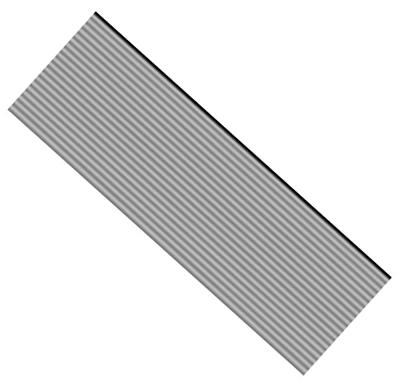

BELDEN 2L28050008H100 Ribbon Cable
Belden's 2L28050 flat gray ribbon cable is designed for disk drive applications utilizing 2.00mm IDC connectors. It features 50 conductors with 0.039 +/- 0.003 inch spacing, PVC insulation resistant to over 10,000 Megaohms, and a total thickness of 0.035 +/- 0.003 inch. Operating from -40°C to +105°C, the cable has a nominal width of 1.964 inches, weighing 57 lbs per 1000 ft. It meets UL and CSA ratings and complies with ROHS II, ELV, and WEEE standards, ensuring safety and environmental compliance. Suitable for high-speed data transmission in electronic systems.
BELDEN 2L28050008H100 Ribbon Cable Specifications:
- Number of Conductors: 50
- Conductor Spacing Center to Center: 0.039 +/- 0.003 inches
- Conductor Spacing Outside Center to Outside Center: 1.920 +/- 0.012 inches
- Insulation Material: PVC
- Insulation Resistance: > 10,000 Megaohms
- Outer Shield: Unshielded
- Overall Thickness: 0.035 +/- 0.003 inches
- Overall Width: 1.964 +/- 0.012 inches
- Operating Temperature Range: -40°C to +105°C
- Cable Weight: 57 lbs/1000 ft
- Nominal Impedance: Not specified
- Nominal Capacitance: 20 pF/m @ 1 kHz, 165 pF/m @ 1 MHz
- Inductance: Not specified
- DC Resistance: 68.2 ohms/1000 ft max
- Dielectric Withstand Voltage: 2,000 V RMS
- Polarity Identification: Black polarity stripe on #1 conductor
- Applicable Standards: UL AWM 2651, CSA IA, RoHS II, ELV, WEEE, Prop 65, China RoHS
- Flame Test: UL and CSA tested
- Plenum Rating: No
- Physical Dimensions: Width 1.964 inches, Thickness 0.035 inches
- Environmental Compliance: RoHS, WEEE, ELV, Prop 65
Buy the Belden Series 2L280 Flat Gray Ribbon Cable: 2L28050
Enhance your electronic projects with Belden's 2L28050 flat gray ribbon cable, featuring 50 conductors and 2mm pitch for reliable disk drive and data system connections. Made with durable PVC insulation, it provides excellent resistance to high temperatures ranging from -40°C to +105°C. The cable's unshielded design simplifies installation, while meeting UL, CSA, and environmental standards like RoHS II and WEEE, guaranteeing safety and compliance. Whether for industrial or consumer electronics, this ribbon cable is designed for high performance and long-lasting reliability. Order online now for fast delivery and professional-grade quality.
Order your Belden Series 2L28050 flat gray ribbon cable today and ensure reliable high-speed data transmission for your disk drive applications.
