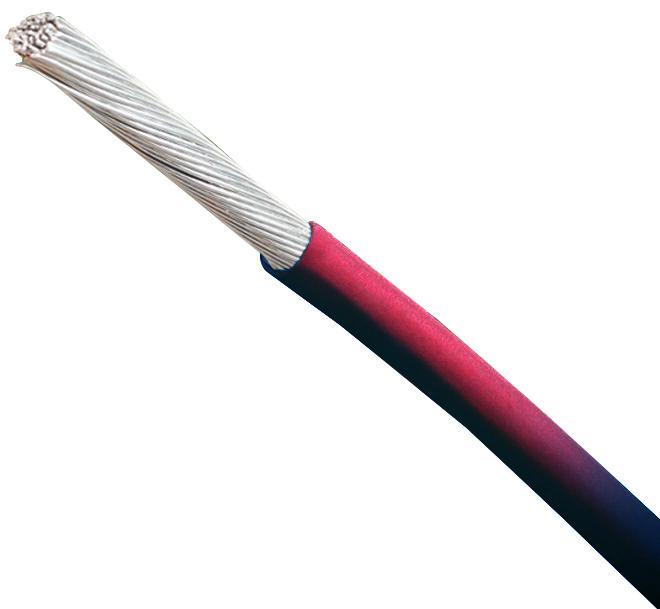

BELDEN 39120001100 Hook-up Wire
The Belden 39120 PPO Hook-up Wire is a high-quality, flexible electrical wire suitable for various electronic and electrical applications. It features 20 AWG stranded tinned copper conductors and PPO insulation rated for 105°C and 600V, with a peak voltage of 2500V. Ideal for electronic circuits, internal wiring, and electrical panels, it provides reliable performance and compliance with UL, RoHS, and other global standards. This halogen-free, non-plenum cable ensures safe, durable, and eco-friendly electrical connections across diverse industries.
BELDEN 39120001100 Hook-up Wire Specifications:
- Conductor: 20 AWG stranded (10x30) tinned copper
- Insulation Material: PPO (Polyphenylene Oxide)
- Overall Insulation Diameter: 0.061 inches
- Temperature Rating: -40°C to +105°C
- Rated Voltage: 600V, Peak Voltage: 2500V
- Bulk Cable Weight: 4.200 lbs per 1000 ft
- UL Rating: 600 V, 105°C
- UL Type: AWM 11028
- Flame Test: UL Flame Test passed
- Plenum/Non-Plenum: Non-plenum (No)
- Compliance: RoHS II, CE, ELV, WEEE, BFR, CA Prop 65, China RoHS
- Operating Temperature Range: -40°C to +105°C
- Recommended Current: Based on UL standards, varies with application
Buy the Buy Belden PPO Hook-up Wire Part Number 39120001100 Online
Order the Belden PPO Hook-up Wire Part Number 39120001100 online today and experience top-quality electrical wiring for electronic and electrical projects. This wire features 20 AWG stranded tinned copper conductors with PPO insulation rated for 105°C and 600V, ensuring durability and safety in diverse applications. Suitable for electrical panels, electronic circuits, and internal wiring, it complies with UL and RoHS standards. Its halogen-free, non-plenum design guarantees environment-friendly, safe, and reliable performance. Purchase now for long-lasting, compliant wiring solutions for industrial and electronic systems.
Get Belden 39120001100 today—built for reliable electrical connections in electronic circuits and wiring applications with high safety and compliance standards.
Frequently Asked Questions
Where can I buy BELDEN 39120001100?
You can click on the BUY or RFQ button to purchase 39120001100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 39120001100?
You can download the 39120001100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 39120001100?
BELDEN
