BELDEN 39122002100 Hook-up Wire
The Belden 39122 hook-up wire features 22 AWG stranded tinned copper conductors with PPO insulation, rated for 105°C and 600V, suitable for electronic circuits and equipment wiring. It complies with UL, RoHS, and CE standards, ensuring safety and environmental compliance. This flexible, halogen-free wire is ideal for electrical panels, electronic and appliance manufacturing, furniture, automotive applications, and internal wiring. With a nominal diameter of 0.053 inches and operating temperature range from -40°C to +105°C, it provides durability and reliable electrical performance in various environments.
BELDEN 39122002100 Hook-up Wire Specifications:
- Conductor: 22 AWG stranded (7x30) tinned copper
- Insulation Material: PPO - Polyphenylene Oxide
- Overall Diameter: 0.053 in.
- Operating Temperature Range: -40°C to +105°C
- Voltage Rating: 600 V
- Peak Voltage: 2500 V
- Bulk Cable Weight: 2.800 lbs/1000 ft.
- UL Rating: 600 V, 105°C
- UL Type: AWG 11028
- Eco Compliance: RoHS II, CE, ELV, RoHS, WEEE, BFR
- Flame Test: UL Flame Test - Wet
- Plenum: No
- Maximum Current: Based on standard conductor ratings

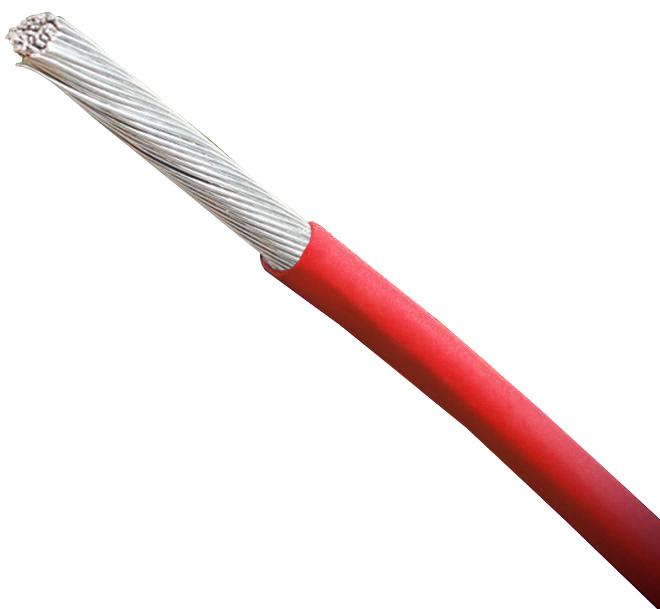

Buy the Buy Belden Hook-up Wire 22 AWG Tinned Copper Part Number 39122002100 Online
Purchase the Belden 39122 hook-up wire online now and enjoy high-quality, UL-rated 22 AWG tinned copper conductors with PPO insulation. Designed for versatility, it’s ideal for electronic circuits, internal wiring, and electrical panels, providing exceptional performance at temperatures up to 105°C and voltages up to 600V. The halogen-free construction ensures safety and environmental compliance, making it suitable for automotive, appliance, furniture, and electronic manufacturers. Secure fast delivery and expert support when you buy directly from our online store today.
Get Belden 39122 hook-up wire today—built for durability, safety, and reliable electronic circuit connections.
Frequently Asked Questions
Where can I buy BELDEN 39122002100?
You can click on the BUY or RFQ button to purchase 39122002100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 39122002100?
You can download the 39122002100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 39122002100?
BELDEN
