BELDEN 5000FE008500 Shielded Audio Cable

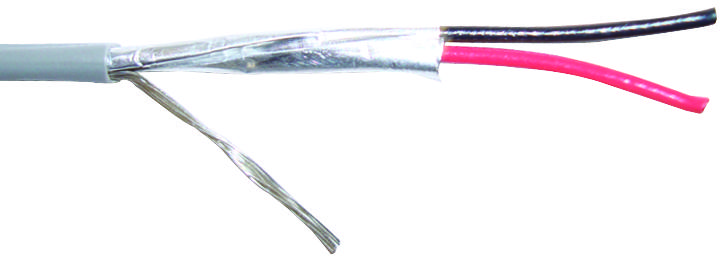

This 152.4-meter shielded cable is ideal for security and commercial audio systems, featuring two copper conductors with polyolefin insulation, Beldfoil® shield, and PVC jacket with ripcord for easy installation. Designed for reliable performance, it withstands temperatures from -20°C to 70°C and a maximum pulling tension of 811.352 N, making it suitable for industrial, commercial, and audio applications. This cable ensures high-quality sound transmission and safety, complying with UL, CSA, and RoHS standards, providing durability and flexibility for various security and entertainment systems.
BELDEN 5000FE008500 Shielded Audio Cable Specifications:
- Nominal Diameter: 0.264 in.
- Conductor Material: Bare Copper
- Insulation Material: Polyolefin
- Shield: Beldfoil® Aluminum Polyester Tape with Shorting Fold
- Outer Jacket Material: PVC
- Overall Length: 152.4 meters (500 feet)
- Operating Temperature Range: -20°C to 70°C
- Maximum Pulling Tension: 811.352 N (approx. 162.4 lbs)
- Conductor Count: 2
- Nominal Capacitance: Conductor to Conductor 64.000 pF/ft, Conductor to Shield 115.250 pF/ft
- Outer Shield Resistance: 7.100 Ω
- UL Flame Test: UL1666 Vertical Shaft, CSA Flame Test: FT4
- Applicable Standards: NEC, RoHS, CE, ELV, WEEE
- Color Code: Red or Gray (varies by reel)
Buy the Belden 5000FE – Reliable Shielded Audio Cable for Industrial Applications
Enhance your security and commercial audio systems with Belden's shielded audio cable, designed for optimal performance and durability. This 152.4-meter cable features two copper conductors with polyolefin insulation, a protective Beldfoil shield, and a rugged PVC jacket with ripcord. Suitable for indoor industrial and entertainment applications, it withstands extreme temperatures and high pulling tensions. Easy to install and compliant with global safety standards, this cable ensures clear audio transmission and long-lasting reliability. Purchase online today for superior connectivity and system integrity.
Buy Belden 5000FE shielded audio cable now and ensure high-quality sound and reliable performance for your security and commercial systems.
