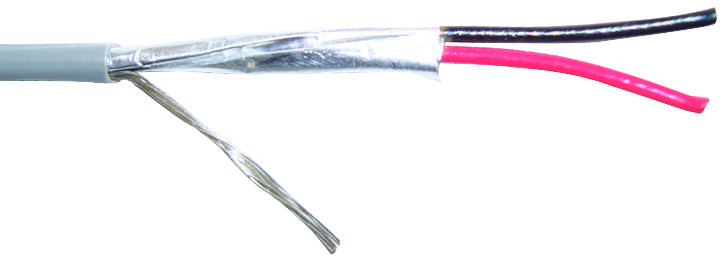

BELDEN 5500FE008500 Security Alarm Cable
The 5500FE 008500 is a 500-foot, 2-conductor shielded cable designed for security and alarm systems. It features 22 AWG bare copper conductors with polypropylene insulation, a Beldfoil aluminum foil-polyester tape shield providing 100% coverage, and a 24 AWG tinned copper drain wire. Encased in a grey PVC jacket with ripcords for easy stripping, it supports low-voltage analog data and signal transmission. Suitable for connecting controllers, sensors, relays, and alarms, it offers excellent flame and environmental resistance, UL1666 flame testing compliance, and reliable performance in commercial and audio system installations.
BELDEN 5500FE008500 Security Alarm Cable Specifications:
- Conductor: 22 AWG bare copper, 7 x 30 strands
- Insulation Material: Polypropylene
- Shield: Beldfoil aluminum foil-polyester tape with shorting fold, 100% coverage
- Drain Wire: 24 AWG tinned copper
- Outer Jacket Material: PVC, grey with ripcord
- Overall Diameter: 0.126 inches
- Operating Temperature Range: 20°C to 75°C
- UL Flame Test: UL1666, vertical shaft, FT4
- Bulk Cable Weight: 9.5 lbs/1000 ft
- Maximum Pulling Tension: 23,700 lbs
- Minimum Bend Radius: 1.25 inches
- Capacitance Conductor to Conductor: 34.5 pF/ft
- Capacitance to Shield: 62 pF/ft
- DC Resistance: 16.1 Ω/1000 ft at 20°C
- Max Operating Voltage: UL standard, specific value not provided
- Suitable for Indoor and Plenum (6500FE)
- Compliance: RoHS, CE, Prop 65, UL, and other relevant standards
Buy the Belden 5500FE – Reliable Security Alarm Cable for Industrial Applications
Purchase the Belden 5500FE multi-conductor shielded cable online today and enjoy fast, reliable delivery. Perfect for security, alarm, and audio systems, this cable features 22 AWG copper conductors with polypropylene insulation, Beldfoil shield for maximum coverage, and a PVC jacket with ripcord for easy installation. Rated for UL1666 flame test and compliant with RoHS and UL standards, it offers excellent environmental resistance and high performance in both indoor and plenum spaces. Get professional-grade wiring solutions hassle-free with our online store.
Order your Belden 5500FE security alarm cable today and ensure your projects benefit from dependable, UL-tested performance in commercial environments.
Frequently Asked Questions
Where can I buy BELDEN 5500FE008500?
You can click on the BUY or RFQ button to purchase 5500FE008500 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 5500FE008500?
You can download the 5500FE008500 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 5500FE008500?
BELDEN
