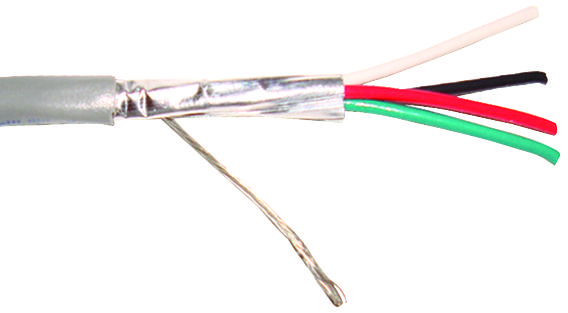

BELDEN 5502FE008500 Security Alarm Cable
This 500-foot shielded security and alarm cable features four 22 AWG bare copper conductors with polypropylene insulation, a Beldfoil aluminum foil shield with polyester tape, and a PVC jacket with ripcord. Designed for low voltage analog data and sensor connections, it supports reliable communication in enclosures for control devices, thermocouples, relays, and alarms. With a capacitance of approximately 22.5 pF/ft between conductors and 40.5 pF/ft to shield, and a DC resistance of about 16.4 Ω/1000 ft, it is UL1666 flame-rated for safety and compliance.
BELDEN 5502FE008500 Security Alarm Cable Specifications:
- Number of Conductors: 4
- Conductor Gauge: 22 AWG (7 strands of 30)
- Insulation Material: Polypropylene
- Outer Shield: Beldfoil aluminum foil and polyester tape with shorting fold
- Outer Shield Material: Aluminum foil-polyester tape
- Drain Wire: 24 AWG Tinned copper
- Outer Jacket Material: PVC
- Outer Jacket Color: Gray
- Overall Diameter: 0.148 inches
- Operating Temperature Range: -20°C to +75°C
- UL Flame Test: UL1666 Vertical Shaft
- CSA Flame Test: FT4
- Capacitance: approximately 22.5 pF/ft (conductor to conductor), 40.5 pF/ft (conductor to shield)
- DC Resistance: about 16.4 Ω/1000 ft (conductor), 16.1 Ω/1000 ft (outer shield)
Buy the Belden Series 5502FE Security Alarm Cable: 5502FE008500
Order the Belden 5502FE008500 security and alarm cable online today. This high-quality, shielded cable features four 22 AWG bare copper conductors, polypropylene insulation, a Beldfoil shield, and a PVC jacket with ripcord. Designed for low voltage signal transmission, it provides dependable connections for controllers, sensors, relays, and alarms within enclosures. With UL1666 flame rating and excellent capacitance and resistance characteristics, this cable ensures safety, durability, and reliable performance for various security and alarm applications.
Get Belden 5502FE008500 today—built for secure connections and long-lasting performance in security and alarm systems.
Frequently Asked Questions
Where can I buy BELDEN 5502FE008500?
You can click on the BUY or RFQ button to purchase 5502FE008500 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 5502FE008500?
You can download the 5502FE008500 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 5502FE008500?
BELDEN
