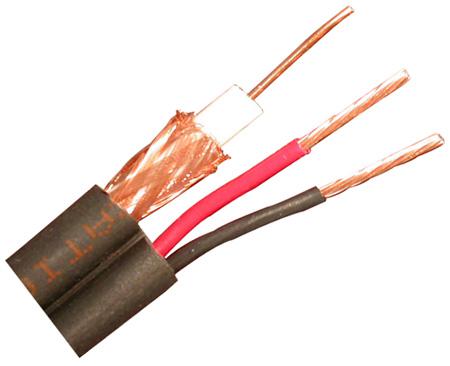

BELDEN 639948877500 RG6 CCTV Cable
The BELDEN 639948 is a high-quality RG6 coaxial cable specifically engineered for CCTV surveillance systems. Its plenum-CMP rating ensures compliance with fire safety standards, making it suitable for in-wall installations. The cable incorporates a 18 AWG solid bare copper conductor, a foam FEP core for optimal signal transmission, and a 95% bare copper braid for robust shielding against interference. The Flamarrest® jacket provides durability and flame resistance. This cable is ideal for connecting security cameras, DVRs, and other surveillance equipment, delivering reliable performance and clear video quality.
BELDEN 639948877500 RG6 CCTV Cable Specifications:
- Suitable Applications: CCTV
- Conductor AWG: 18
- Conductor Material: BC - Bare Copper
- Insulation Material: FFEP - Foam Fluorinated Ethylene Propylene
- Outer Shield Material: BC - Bare Copper
- Outer Shield Coverage: 95%
- Outer Jacket Material: LS PVC - Low Smoke Polyvinyl Chloride
- Nominal Diameter: 0.228 in
- Conductor DCR: 6.4 Ohm/1000ft
- Outer Shield DCR: 2.2 Ohm/1000ft
- Capacitance: 16.3 pF/ft
- Nominal Inductance: 0.097 µH/ft
- Impedance: 75 Ohm
- Max. Delay Skew: 83 ns/100m
- Nominal Velocity of Propagation (VP): 83 %
- UL Voltage Rating: 300 V RMS
- UL Temp Rating: 75°C
- Operating Temp Range: -20°C To +75°C
- Bulk Cable Weight: 38 lbs/1000ft
- Max Recommended Pulling Tension: 84 lbs
- Min Bend Radius/Minor Axis: 2.25 in
- NEC Articles: 800
- NEC/(UL) Specification: CMP
- CEC/C(UL) Specification: CMP
- RG Type: RG-6/U Type
- Series Type: Series 6
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2003/96/EC (BFR): Yes
- EU Directive 2011/65/EU (ROHS II): Yes
- EU Directive 2012/19/EU (WEEE): Yes
- EU Directive 2015/863/EU: Yes
- EU Directive Compliance: EU Directive 2003/11/EC (BFR)
- EU CE Mark: Yes
- EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
- Flammability: FT6
- UL Flammability: NFPA 262 Plenum Flame Test (UL910)
- Plenum: Yes
Buy the 639948 BELDEN RG6 CCTV Cable | myMectronic
Securely purchase the BELDEN 639948 RG6 CCTV cable and ensure your surveillance system operates flawlessly.
Buy Now
Frequently Asked Questions
Where can I buy BELDEN 639948877500?
You can click on the BUY or RFQ button to purchase 639948877500 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 639948877500?
You can download the 639948877500 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 639948877500?
BELDEN
