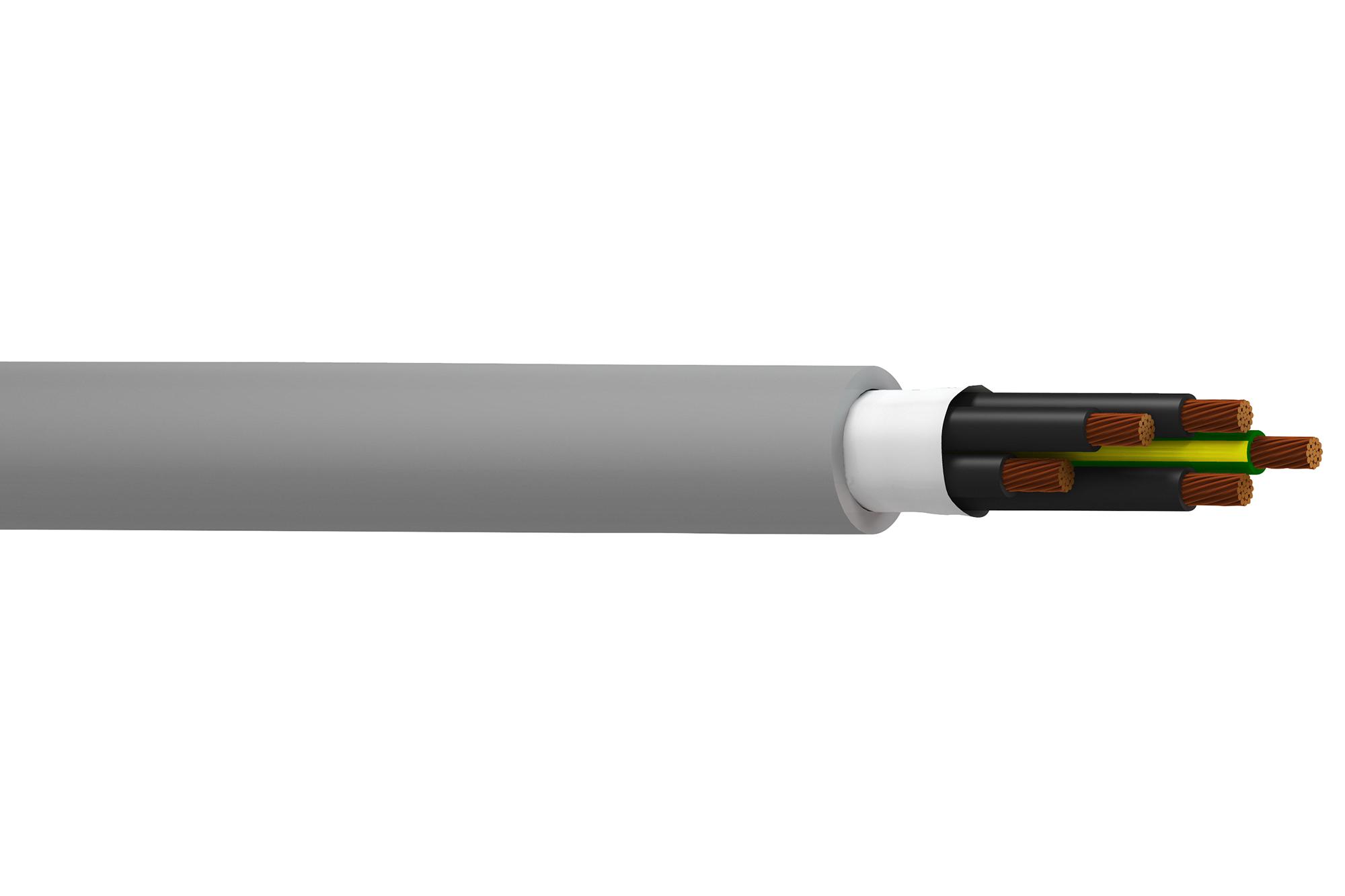

BELDEN 73002W008500 Multi-Conductor Cable
The 73002W unshielded multi-conductor cable is designed for light to moderate flexing applications up to 1 million flex cycles. It features 20 AWG stranded bare copper conductors with PVC insulation and oil-resistant PVC jacket. Suitable for various electrical installations, it offers a maximum voltage of 600V and complies with UL 2587 and CSA standards. The cable has a nominal diameter of 0.238 inches, weighs 50 lbs per 1000 ft, and supports a minimum bend radius of 1.2 inches. Ideal for industrial and control wiring, it provides reliable performance in challenging environments.
BELDEN 73002W008500 Multi-Conductor Cable Specifications:
- Conductor: 20 AWG stranded (10x30), bare copper
- Insulation Material: PVC
- Outer Jacket Material: Oil-resistant PVC
- Outer Diameter: 0.238 inches
- Weight: 50 lbs per 1000 ft
- Maximum Operating Voltage: 600 V
- Flex Cycle Rating: 1 million
- Minimum Bend Radius: 1.2 inches
- Storage Temperature Range: -40°C to +90°C
- Installation Temperature Range: -8°C to +90°C
- UL Style: 2587 (600 V 90°C)
- CSA: 600 VAWM IN AB
- RoHS Compliant: Yes
- Flame Test: CSA FT
- Applicable Standards: VDE 0472, Section 603, EU Directive 2011/65/EU
Buy the Belden 73002W – Reliable Multi-Conductor Cable for Industrial Applications
Purchase the Belden 73002W unshielded multi-conductor cable online today and enjoy fast delivery of high-quality wiring solutions. This 20 AWG cable offers excellent flexibility with a flex cycle rating of 1 million, making it ideal for industrial, control, and automation applications. Featuring PVC insulation and an oil-resistant jacket, it guarantees safety and durability in harsh conditions. Widely compliant with UL, CSA, and RoHS standards, this cable ensures reliable performance and easy installation for your electrical projects. Buy now and enhance your wiring systems with trusted quality.
Order your Belden 73002W multi-conductor cable today and ensure your projects benefit from reliable, high-quality wiring designed for demanding industrial environments.
