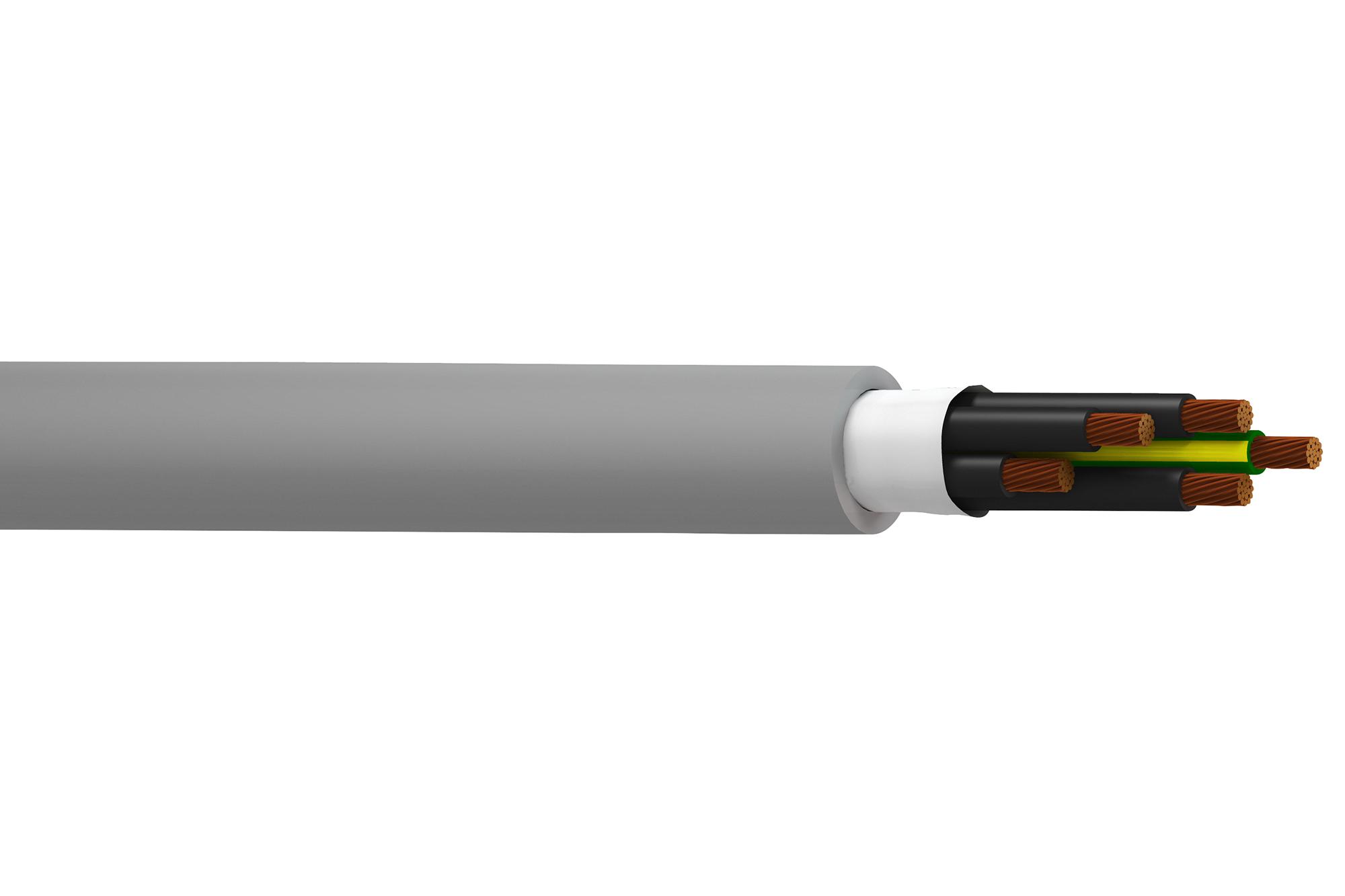

BELDEN 73007W008100 Multi-Conductor Cable
The Belden 73007W Multi-Conductor cable is a robust, unshielded 20 AWG stranded copper wire designed for light to moderate flexing applications, supporting up to 1 million flex cycles. It features PVC insulation and an oil-resistant PVC jacket, making it ideal for versatile industrial and electrical setups. With a maximum operating voltage of 600V, this cable complies with UL and CSA standards, offering excellent fire safety ratings and environmental compliance, including RoHS. Available in various lengths, it is suitable for burial, flexible installations, and demanding environments requiring reliable electrical performance.
BELDEN 73007W008100 Multi-Conductor Cable Specifications:
- Conductor: 20 AWG stranded (10x30) copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Jacket Material: PE (Polyethylene)
- Outer Diameter: 0.327 inches
- Overall Lengths Available: 100 ft, 500 ft, 7000 ft
- Weight: 116 lbs per 1000 ft
- Operating Voltage: 600V
- Storage Temperature Range: -40°C to +90°C
- Installation Temperature Range: -8°C to +90°C
- Max. Pulling Tension: 55 lbs
- Flexible Cycles Rating: 1 million
- Compliance: UL Style 2587, CSA 600V, RoHS, VDE 0472, UL Flame Test FT
- Suitable for burial and flexing applications
- Min. Bend Radius (continuous flexing): 1.600 inches
- Electrical Capacitance: Max. conductor-to-conductor por eon
- DC Resistance: 10.800 ohms per 1000 ft
Buy the Belden Series LDEN Multi-Conductor: 73007W
Purchase the Belden 73007W multi-conductor cable online today to ensure high-quality, flexible wiring solutions for industrial and electrical projects. Its unshielded design, 20 AWG stranded copper conductors, and PVC insulation make it perfect for applications requiring durability, flexibility, and safety up to 600V. Whether for burial, flexible setups, or harsh environments, this cable supports up to 1 million flex cycles. Order now for fast delivery and enjoy the confidence of working with a trusted brand known for quality and compliance.
Get Belden 73007W today—designed for light to moderate flexing and reliable electrical performance in demanding environments.
Frequently Asked Questions
Where can I buy BELDEN 73007W008100?
You can click on the BUY or RFQ button to purchase 73007W008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 73007W008100?
You can download the 73007W008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 73007W008100?
BELDEN
