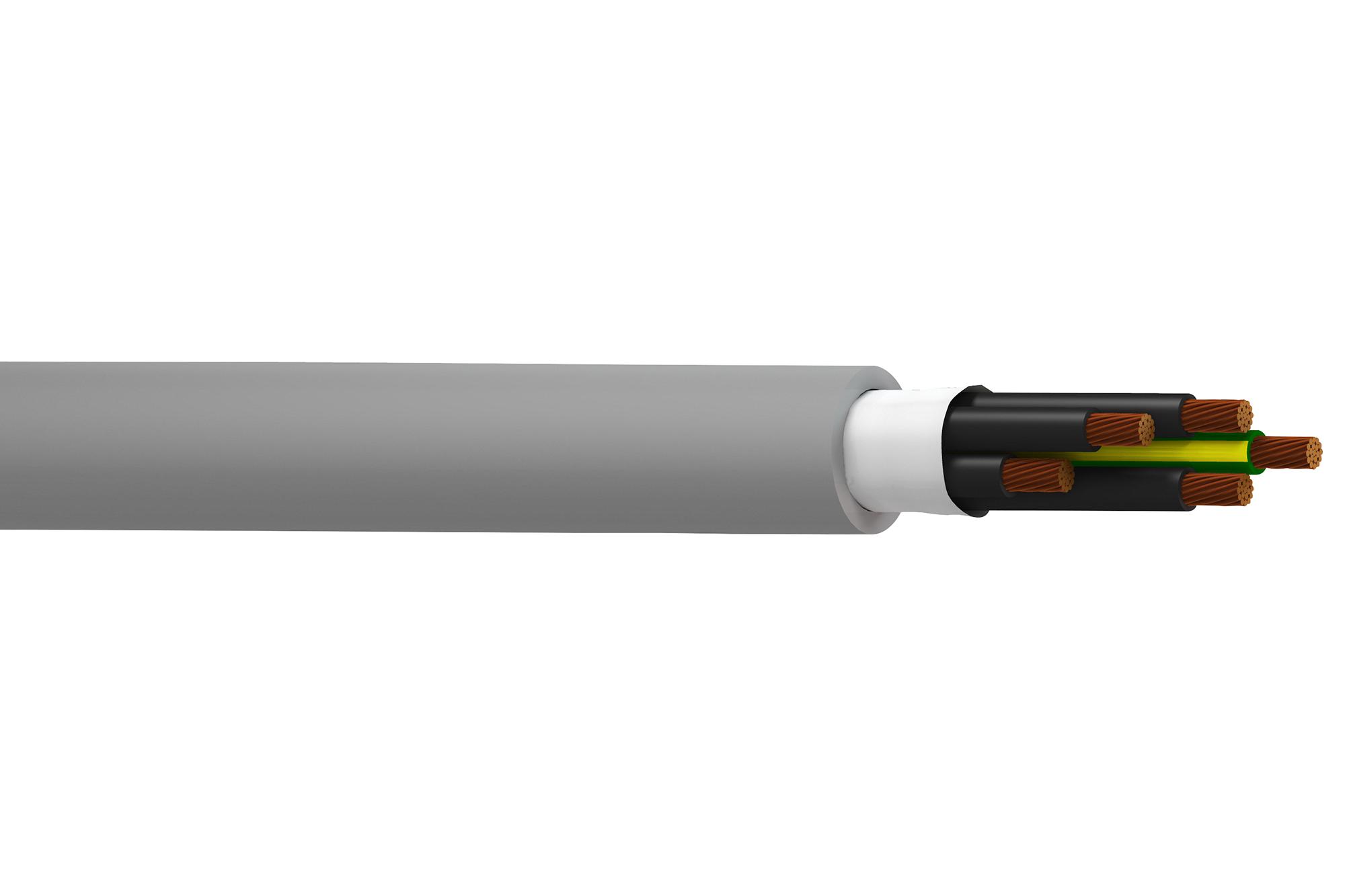

BELDEN 73402W008100 Multi-Conductor Cable
The 73402W multi-conductor cable is designed for unshielded, light to moderate flexing applications, rated at 600V with a high flex cycle durability of up to 1 million cycles. It features 14 AWG stranded bare copper conductors with PVC insulation and oil-resistant PVC jackets, ideal for industrial wiring, control panels, and automation systems. The cable is UL and CSA compliant, RoHS, and EU Directive certified, ensuring safety and environmental standards. Its overall diameter is 0.330 inches, suitable for various installation environments, with a maximum recommended pulling tension of 64 lbs.
BELDEN 73402W008100 Multi-Conductor Cable Specifications:
- Conductors: 14 AWG stranded (41x30) bare copper
- Insulation Material: PVC
- Outer Jacket Material: Oil-resistant PVC
- Overall Diameter: 0.330 in.
- Storage Temperature Range: -40°C to +90°C
- Installation Temperature Range: -8°C to +90°C
- Bulk Cable Weight: 112 lbs/1000 ft
- Max. Recommended Pulling Tension: 64 lbs
- Flex Cycle Rating: 1 million flexes
- Nominal Capacitance: Max. conductor to conductor
- Max Voltage Rating: 600 V UL
- Applicable Standards: UL Style 2587, CSA 600 V AWG IN AB
- Certifications: RoHS, REACH, EU Low Voltage Directive
- Min. Bond Radius: 1.700 in.
Buy the Belden 73402W – Reliable Multi-Conductor for Industrial Applications
Purchase Belden 73402W multi-conductor cable online now for reliable, high-performance wiring solutions in industrial environments. Designed for light to moderate flexing, it features 14 AWG stranded bare copper conductors with durable PVC insulation and oil-resistant jackets. Rated at 600V with a flex life of one million cycles, it ensures long-lasting, flexible performance suitable for automation, control panels, and machinery. Easy to install with a maximum pull tension of 64 lbs, order today for quick delivery and dependable operation.
Get Belden 73402W today—built for durability and flexible industrial wiring needs.
Frequently Asked Questions
Where can I buy BELDEN 73402W008100?
You can click on the BUY or RFQ button to purchase 73402W008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 73402W008100?
You can download the 73402W008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 73402W008100?
BELDEN
