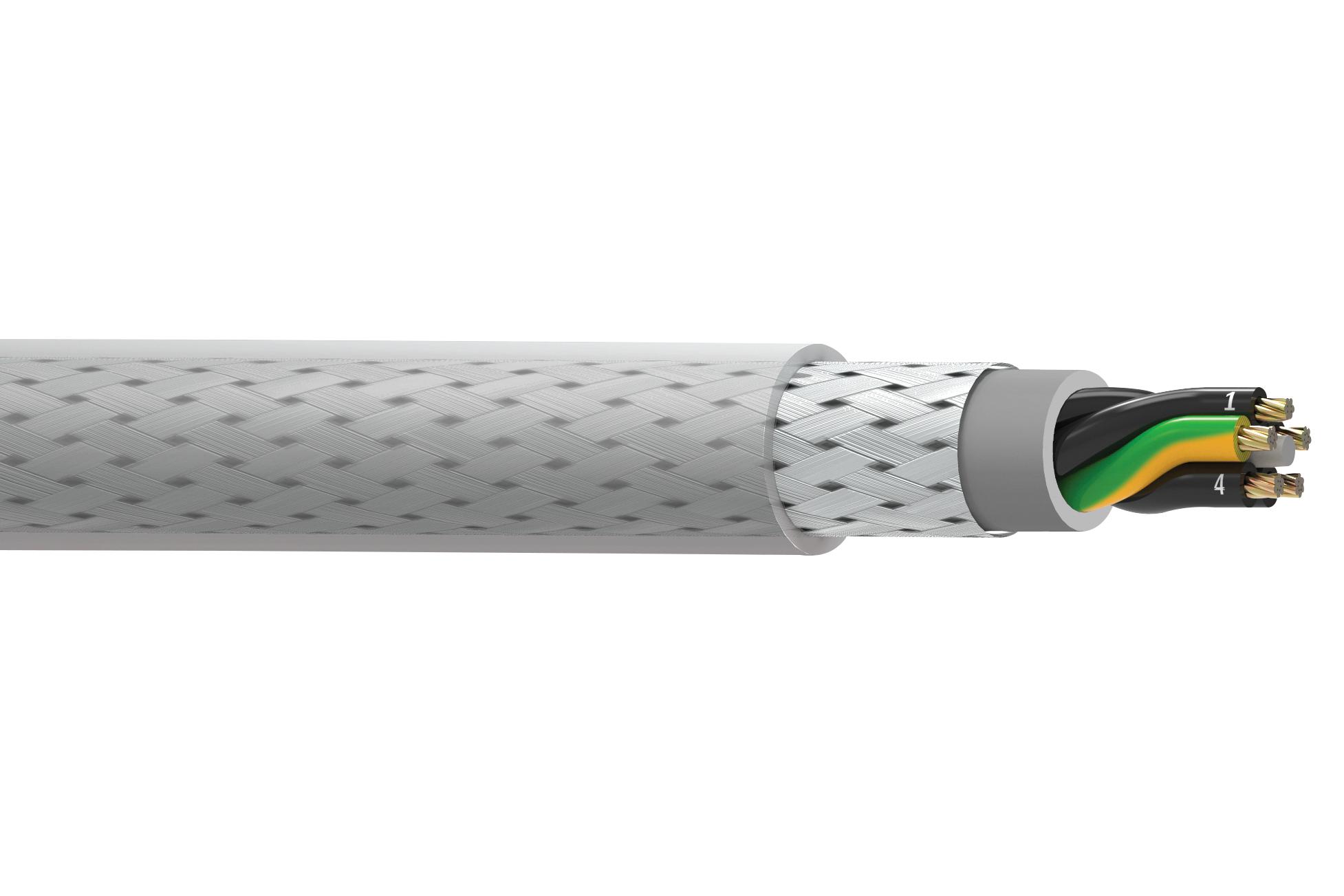

BELDEN 73404WS008100 Shielded Multi-Conductor Cable
This shielded multi-conductor cable features 14 AWG stranded bare copper conductors with PVC insulation, oil-resistant inner jacket, and a tinned copper braid shield offering 85% coverage. Designed for light to moderate flexing applications up to 1 million flex cycles, it provides reliable electrical performance with a nominal overall diameter of 0.486 inches. Suitable for use in environments requiring flexible, durable wiring, the cable supports 600V voltage rating and is compliant with UL, CSA, VDE, and RoHS standards, making it ideal for industrial and commercial electrical installations.
BELDEN 73404WS008100 Shielded Multi-Conductor Cable Specifications:
- Total Conductors: 4
- Ground Wire: Yes, 14 AWG, 41x30 stranding, Bare Copper, PVC insulation
- Inner Jacket Material: PVC
- Outer Shield Material: Tinned Copper Braid, 85% coverage
- Outer Jacket Material: Oil-resistant PVC
- Overall Diameter: 0.486 inches
- Storage Temperature Range: -40°C to +90°C
- Operating & Flexing Temperature Range: -8°C to +90°C
- Bulk Cable Weight: 322 lb/1000 ft
- Max Recommended Pulling Tension: 136 lb
- Min Bend Radius (Flexible): 2.400 inches
- Flex Cycle Rating: 1,000,000 cycles
- Applicable Standards: UL Style 2587, CSA 600V AWM, VDE 0472, RoHS II, REACH, Prop 65
- Nominal Capacitance: 7.7 pF/ft
- Nominal Resistance: 0.00328 Ohms/ft
Buy the Buy Belden 73404WS Part Number 73404WS008100 Online
Purchase the Belden shielded multi-conductor cable online today for high-quality, durable, and flexible wiring solutions suitable for industrial and commercial environments. With 14 AWG stranded copper conductors, 85% copper braid shielding, and oil-resistant PVC jacket, this cable supports 600V applications and is rated for up to 1 million flex cycles. It's compliant with UL, CSA, VDE, and RoHS standards, providing a safe, reliable, and versatile wiring option for various electrical installations requiring durability and flexibility.
Order your Belden Series73404WS shielded multi-conductor cable today and ensure reliable performance in your industrial wiring projects.
