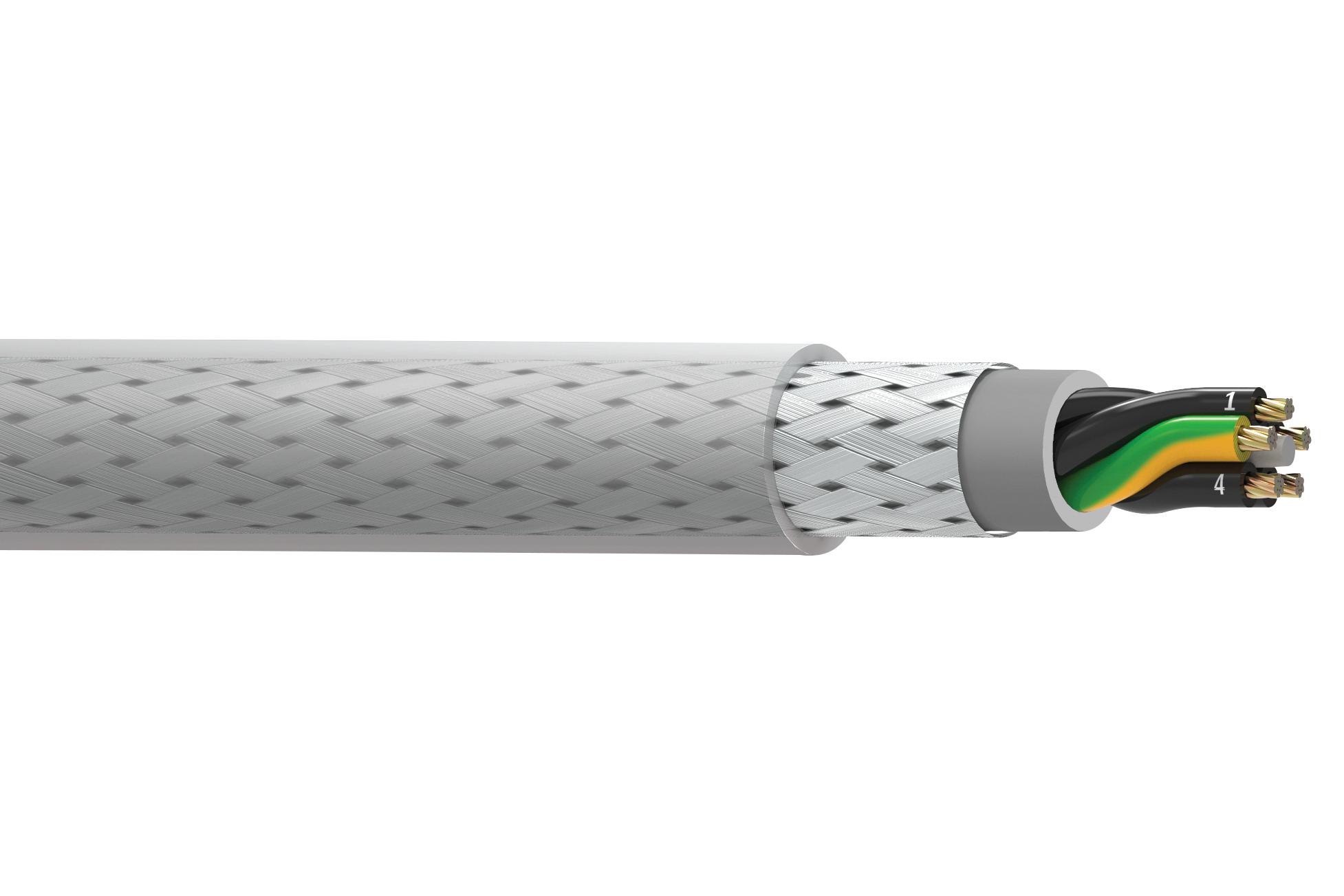

BELDEN 73404WS008500 Shielded Multi-Conductor Cable
The 73404WS multi-conductor cable is rated for 600V, ideal for light to moderate flexing applications with a flex cycle life of 1 million cycles. It features four 14 AWG stranded bare copper conductors insulated with PVC, oil-resistant inner jacket, and tinned copper braid shield with 85% coverage. The cable has an overall diameter of 0.486 inches, with a flexible, oil-resistant PVC outer jacket. Designed for durability, it supports a maximum pulling tension of 136 lbs and operates in temperatures from -40°C to +90°C, making it suitable for industrial wiring and control systems.
BELDEN 73404WS008500 Shielded Multi-Conductor Cable Specifications:
- Number of Conductors: 4
- Conductor AWG: 14
- Conductor Material: Bare Copper
- Insulation Material: PVC
- Inner Jacket Material: PVC
- Outer Shield Material: Tinned Copper Braid, 85% coverage
- Outer Jacket Material: Oil-resistant PVC
- Overall Diameter: 0.486 inches
- Maximum Tensile Load: 136 lbs
- Operating Temperature Range: -40°C to +90°C
- Flexing Life: 1 Million Cycles
- Storage Temperature Range: -40°C to +90°C
- Approximate Weight: 322 lbs per 1000 ft
- Minimum Bend Radius: 2.4 inches
Buy the Buy Belden 73404WS Part Number 73404WS008500 Online
Order the Belden 73404WS shielded multi-conductor cable online for your industrial wiring needs. With 4 AWG stranded bare copper conductors, PVC insulation, an oil-resistant jacket, and a tinned copper braid shield, this cable ensures high flexibility, durability, and long life for applications requiring up to 1 million flex cycles. It meets UL, CSA, and VDE standards, operates reliably from -40°C to +90°C, and supports a maximum pull tension of 136 lbs, making it ideal for control panels, automation systems, and heavy-duty environments.
Get Belden 73404WS today—built for high durability, flexibility, and reliable industrial performance.
