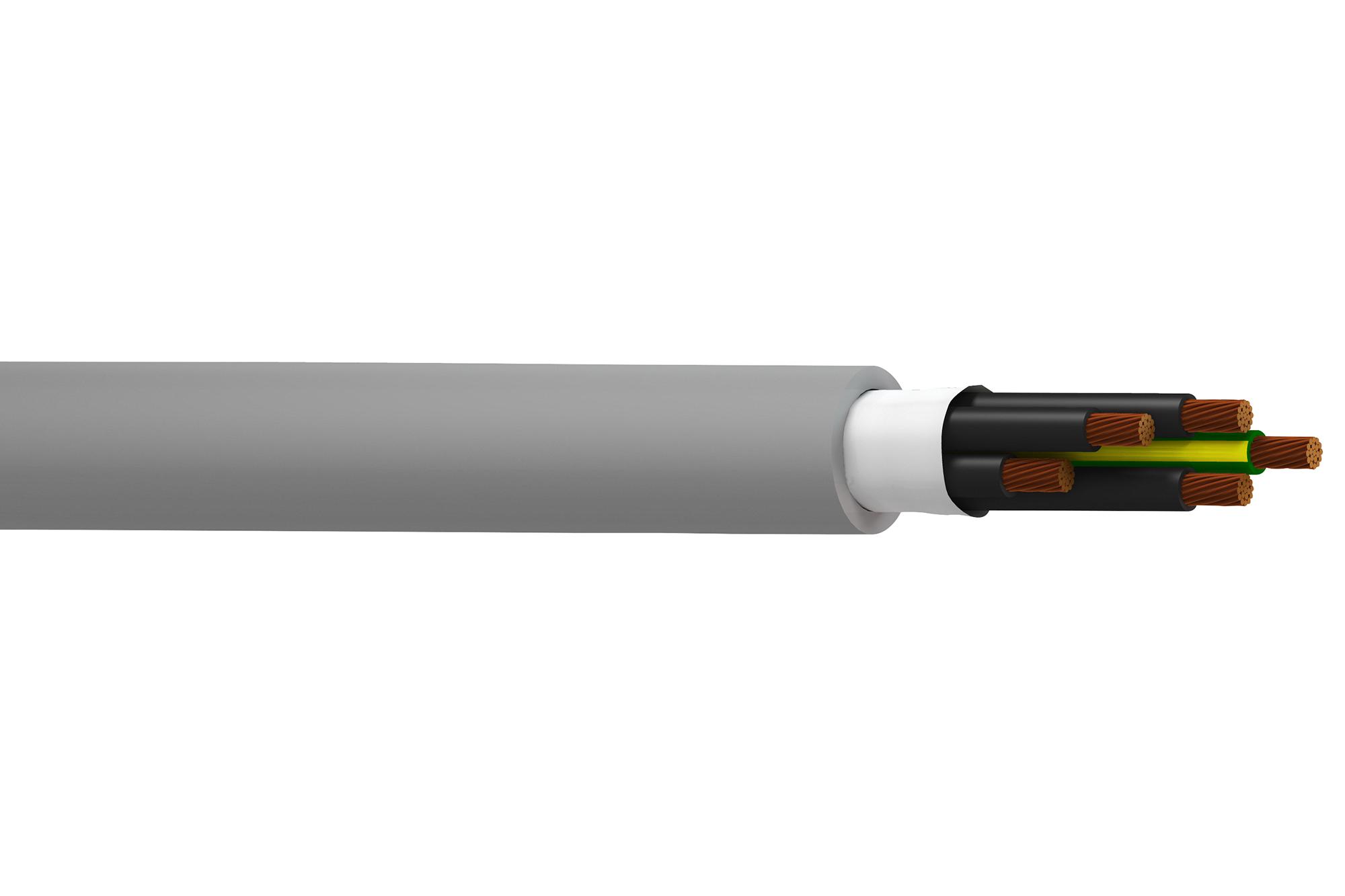

BELDEN 73405W008100 multi-conductor cable
The 73405W Multi-Conductor cable is designed for unshielded, light to moderate flexing applications up to 1 million flex cycles. Featuring 14 AWG stranded bare copper conductors with PVC insulation and an oil-resistant PVC jacket, it is suitable for carrying 600V. With a nominal diameter of 0.439 inches, this cable offers excellent flexibility, durability, and compliance with UL, CSA, and various environmental standards including RoHS and REACH. Its robust construction makes it ideal for industrial and control system applications requiring reliable performance over extensive flexing cycles.
BELDEN 73405W008100 multi-conductor cable Specifications:
- AWG: 14
- Total Conductors: 41
- Ground Wire: No
- Insulation Material: PVC
- Outer Jacket Material: PVC
- Overall Diameter: 0.439 in.
- Storage Temperature Range: -40°C To +90°C
- Installation Temperature Range: -8°C To +90°C
- Bulk Cable Weight: 258 lbs/1000 ft.
- Max. Pulling Tension: 161 lbs.
- Min. Bend Radius: 2.200 in.
- Flex Cycle Rating: 1 Million Flexes
- Applicable Standards: UL Style 2587, CSA 600 V, RoHS, REACH
- Flame Test: CSA FT
- Suitability - Burial: Yes
Buy the Belden Series 73405W Multi-Conductor Cable: 73405W
Order the Belden 73405W multi-conductor cable online today for reliable performance in light to moderate flexing environments. Designed with 14 AWG stranded bare copper conductors, PVC insulation, and an oil-resistant PVC jacket, it supports 600V and up to 1 million flex cycles. Perfect for industrial and control systems, this unshielded cable complies with UL, CSA, RoHS, and REACH standards. Its robust build ensures durability, flexibility, and safety, making it ideal for demanding applications requiring long-lasting, dependable wiring solutions.
Buy Belden 73405W multi-conductor cable now and experience unmatched durability, flexibility, and reliability for demanding industrial applications.
