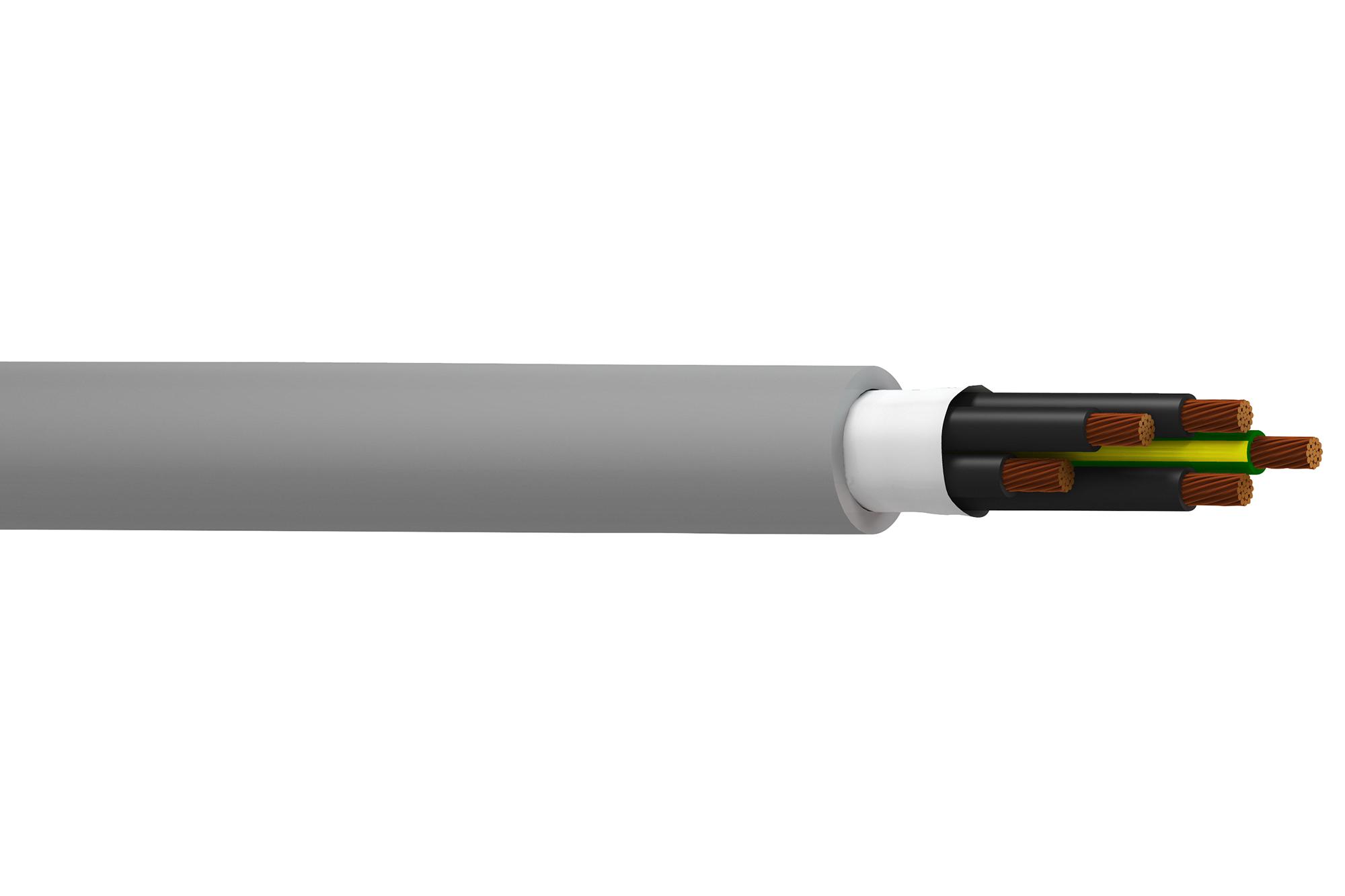

BELDEN 73409W008100 Multi-Conductor Cable
This multi-conductor cable is rated for 600V and features unshielded, flexible construction suitable for light to moderate flexing applications with up to 1 million flex cycles. Constructed with 14 AWG stranded bare copper conductors and PVC insulation, it offers excellent oil resistance and durability. The outer jacket is made from PVC, and the overall cable diameter is approximately 0.609 inches. Designed with UL 2587 and CSA standards compliance, it is ideal for industrial wiring, flexible power distribution, and challenging environments where reliable electrical performance and flexibility are essential.
BELDEN 73409W008100 Multi-Conductor Cable Specifications:
- Conductor: 14 AWG stranded (41x30) bare copper
- Insulation Material: PVC
- Outer Jacket Material: PVC
- Overall Diameter: 0.609 in.
- Flex Cycle Rating: 1 million flexes
- Storage Temperature Range: -40°C to +90°C
- Installation Temperature Range: -8°C to +90°C
- Bulk Cable Weight: 500 lbs/1000 ft
- Max Pulling Tension: 200 lbs.
- Min Bond Radius: 3 inches
- Nominal Capacitance: Max 0.170 μF/m
- DC Resistance: specified per conductors
- Max Operating Voltage UL: 600 V
- Applicable Standards: UL Style 2587, CSA 600 V
- Flame Test: VDE 0472, Section 803
- RoHS Compliant: Yes
- Suitable for burial: Yes
Buy the Belden 73409W – Reliable Multi-Conductor for Industrial Applications
Purchase the Belden 73409W multi-conductor cable online today to ensure your industrial projects have dependable, high-quality wiring. Designed for light to moderate flexing applications with a 1 million flex cycle rating, the 14 AWG cable features oil-resistant PVC insulation, a durable outer jacket, and UL and CSA compliance. Whether for power distribution or flexible wiring needs, this cable offers superior performance, flexibility, and safety standards. Get yours now and keep your operations running smoothly and securely.
Order your Belden 73409W multi-conductor cable today and equip your projects with durable, flexible wiring suitable for light to moderate flexing environments.
