BELDEN 73602W008100 Multi-Conductor Cable
The Belden 73602W multi-conductor cable is designed for unshielded, light to moderate flexing applications with a flex life of up to 1 million cycles. It features 16 AWG stranded bare copper conductors with PVC insulation and oil-resistant PVC jacket, ensuring durability and flexibility. The overall diameter is approximately 0.284 inches, suitable for various industrial wiring needs. Compliant with UL and CSA standards, the cable is ideal for low-voltage power and control applications requiring high flexibility and long service life, including burial and flexible installations.
BELDEN 73602W008100 Multi-Conductor Cable Specifications:
- Conductor Gauge: 16 AWG, stranded (26x30) bare copper
- Insulation Material: PVC
- Outer Jacket Material: Oil-resistant PVC
- Overall Diameter: 0.284 inches
- Voltage Rating: 600 V
- Flex Life: Up to 1 million cycles
- Storage Temperature Range: -40°C to +90°C
- Installation Temperature Range: -8°C to +90°C
- Bulk Lengths Available: 100 ft, 500 ft, 7000 ft
- Weight: Approximately 80 lbs per 1000 ft
- Max. Pulling Tension: 41 lbs
- Min Bend Radius: 1.400 inches
- Applicable Standards: UL Style 2587, CSA, VDE 0472, RoHS, REACH
- Flame Test: CSA FT
- Suitable for burial and flexible routing
- Electrical Characteristics: Nominal Impedance and inductance not specified
- Capacitance conductor to conductor: Not specified
- Conductor resistance, voltage, and other electrical parameters: Not specified

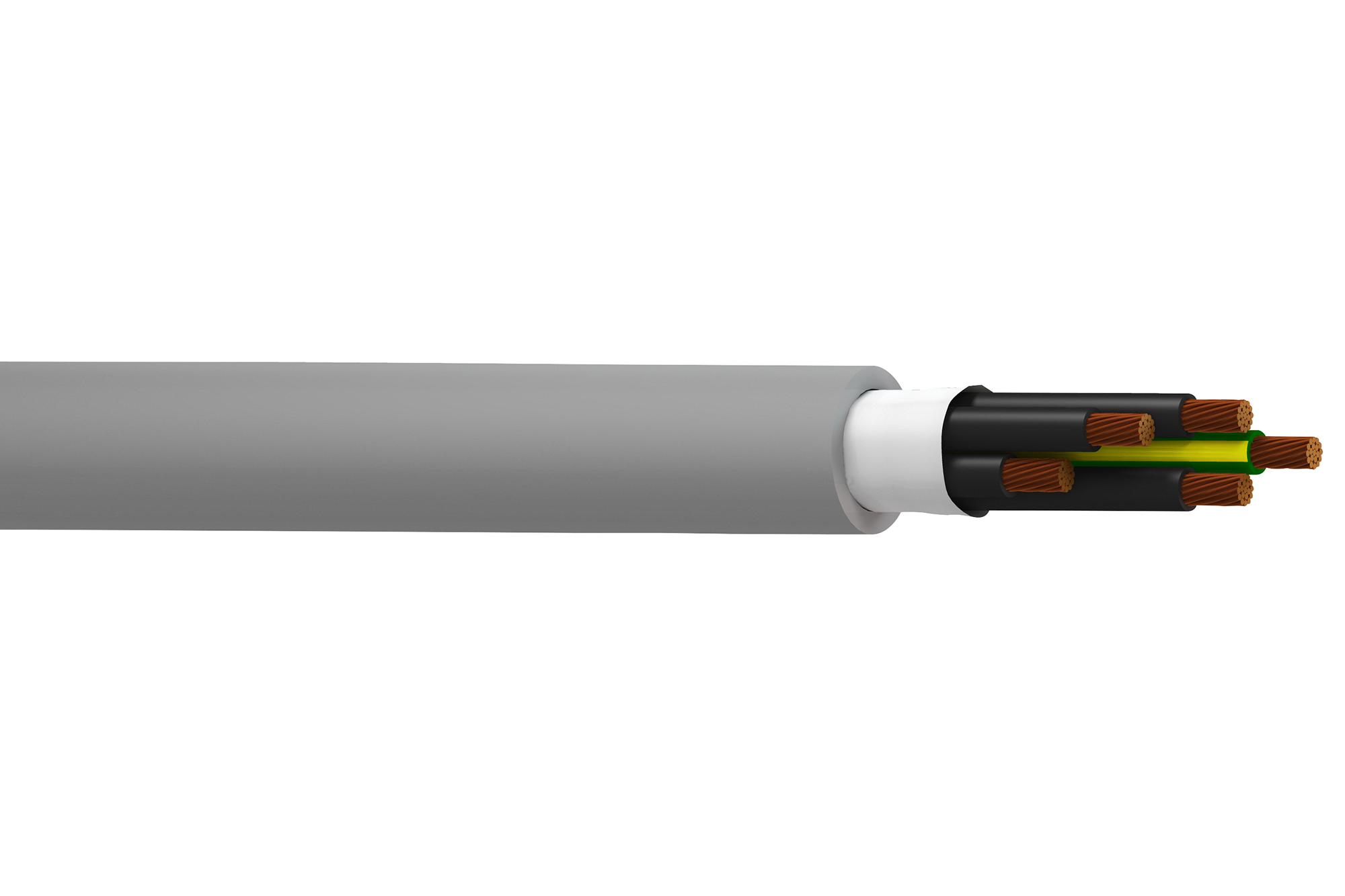

Buy the Buy Belden Cable Part Number 73602W008100 Online
Purchase the Belden 73602W multi-conductor cable online to enjoy fast delivery and ensure your electrical and industrial projects benefit from durable, UL-rated wiring. With 16 AWG stranded bare copper conductors, PVC insulation, and oil-resistant PVC jacket, this cable offers excellent flexibility and long-lasting performance in demanding environments. Its high flex life of up to 1 million cycles makes it ideal for dynamic applications such as flexible routing, machinery wiring, and industrial control systems. Order now and secure reliable power transmission for your needs.
Order your Belden 73602W lightweight multi-conductor cable today and ensure your projects benefit from high flexibility, durability, and reliable performance.
Frequently Asked Questions
Where can I buy BELDEN 73602W008100?
You can click on the BUY or RFQ button to purchase 73602W008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 73602W008100?
You can download the 73602W008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 73602W008100?
BELDEN
