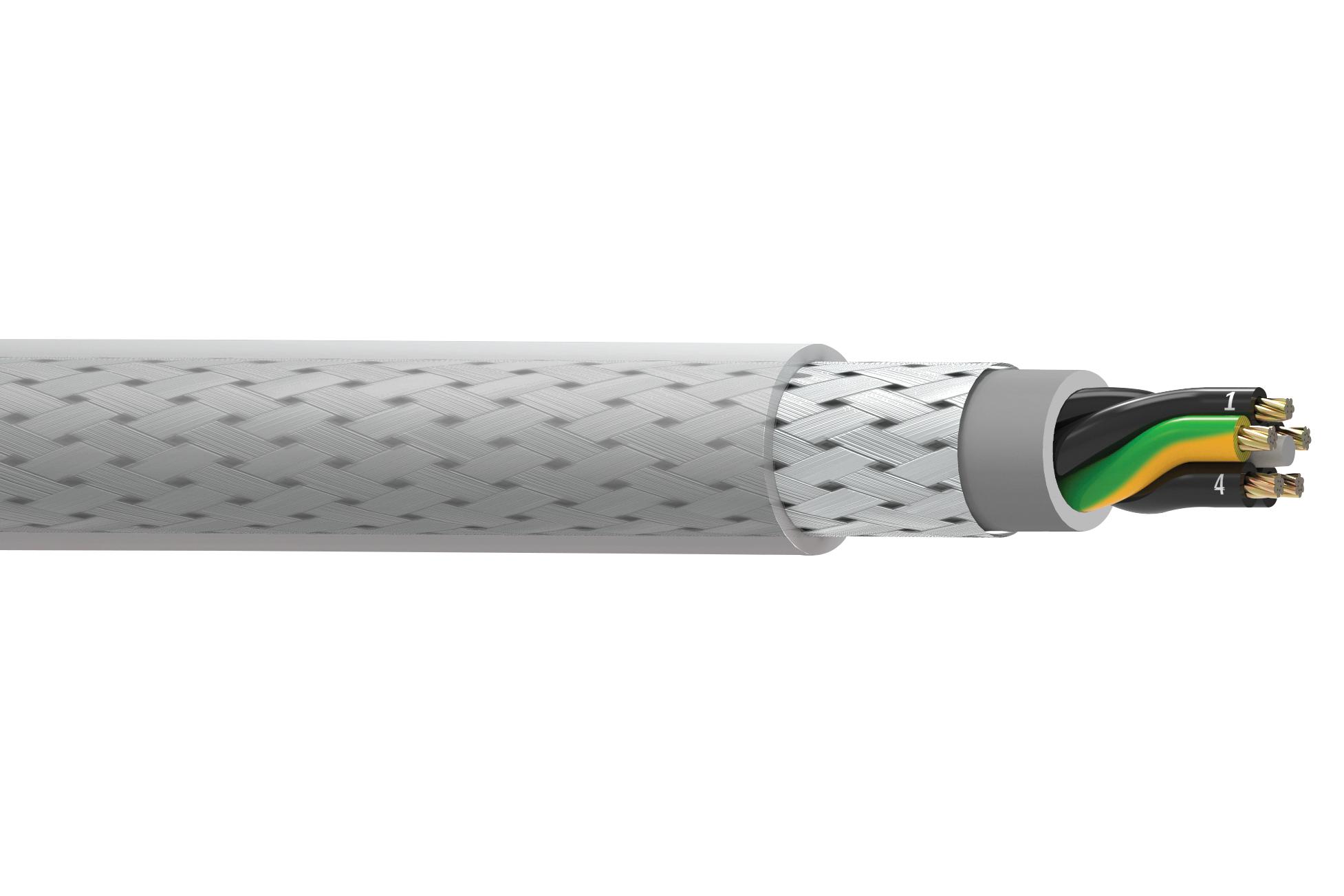

BELDEN 73603WS008100 Multi-Conductor Shielded Cable
The 73603WS cable is a shielded multi-conductor designed for light to moderate flexing applications up to 1 million flex cycles. It features 16 AWG stranded bare copper conductors with PVC insulation, an oil-resistant PVC inner jacket, a tinned copper braid shield with 85% coverage, and an overall PVC jacket. Suitable for industrial signal transmission, this cable offers excellent flexibility, durability, and compliance with standards like UL and CSA, making it ideal for control panels, automation, and instrumentation where reliable performance in dynamic environments is required.
BELDEN 73603WS008100 Multi-Conductor Shielded Cable Specifications:
- Conductor: 16 AWG stranded (26x30) bare copper, PVC insulation
- Inner Jacket: Oil-resistant PVC
- Outer Shield: Tinned copper braid, 85% coverage
- Outer Jacket: Oil-resistant PVC
- Overall Diameter: 9.855 mm
- Storage Temperature Range: -40°C to +90°C
- Operating Temperature Range: -8°C to +90°C
- Installation Temperature Range: -8°C to +90°C
- Bulk Cable Weight: 288.711 kg/km
- Max Pulling Tension: 311.378 N
- Min Bend Radius (Minor Axis): 48.260 mm
- Flex Cycle Rating: Up to 1 million flexes
- Applicable Standards: UL (THHN/THWN), CSA, RoHS II, VDE 0472
- Conductor Resistance: Specified resistances consistent with 16 AWG copper wire
- Capacitance and inductance values: As per standard multi-conductor cables
- Color Code: Gray, 500, 100 ft lengths available
- Certifications: UL Listed, CSA Certified, RoHS II compliant
Buy the Belden 73603WS – Reliable Multi-Conductor Shielded Cable for Industrial Applications
Purchase the Belden 73603WS shielded multi-conductor cable online today and benefit from superior flexibility, durability, and compliance with industry standards. Designed for light to moderate flexing applications, this cable features 16 AWG stranded copper conductors with oil-resistant PVC insulation, and a tinned copper braid shield for enhanced EMI protection. Its oil-resistant PVC outer jacket makes it suitable for demanding environments, while the specified flex cycle rating ensures long-lasting performance in dynamic industrial settings. Secure your supply of reliable, high-quality cable now for your automation and control systems.
Order your Belden 73603WS multi-conductor shielded cable today and ensure robust, flexible performance for your industrial control and automation projects.
Frequently Asked Questions
Where can I buy BELDEN 73603WS008100?
You can click on the BUY or RFQ button to purchase 73603WS008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 73603WS008100?
You can download the 73603WS008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 73603WS008100?
BELDEN
