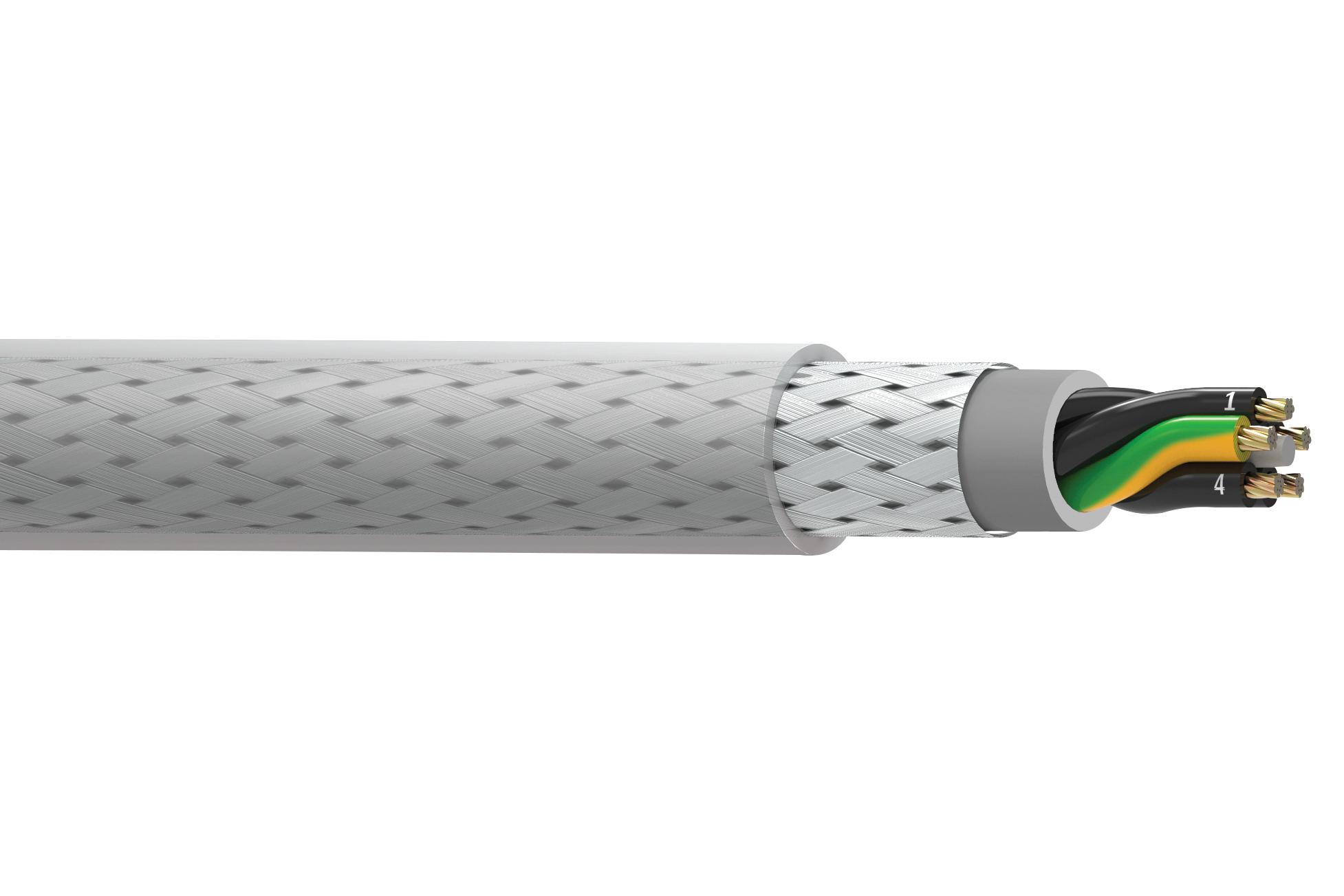

BELDEN 73607WS0081000 Shielded Multi-Conductor Cable
The 73607WS multi-conductor shielded cable is designed for 600V applications, offering reliable performance in light to moderate flexing environments with a flex life of up to 1 million cycles. It features 16 AWG stranded bare copper conductors with PVC insulation, oil-resistant inner jacket, and a tinned copper braid shield with 85% coverage. The outer jacket is made of oil-resistant PVC, ensuring durability in demanding environments. Suitable for industrial automation, control systems, and wiring requiring high flexing endurance and shielded protection, this cable ensures consistent electrical performance and safety compliance.
BELDEN 73607WS0081000 Shielded Multi-Conductor Cable Specifications:
- Conductors: 16 AWG stranded (26x30) bare copper
- Insulation Material: PVC
- Inner Jacket Material: PVC
- Outer Shield Material: Tinned Copper
- Outer Jacket Material: Oil-resistant PVC
- Overall Cable Weight: 335 lbs/1000 ft.
- Maximum Pulling Tension: 157 lbs.
- Minimum Bend Radius: 2.400 inches
- Storage Temperature Range: -40°C to +90°C
- Installation Temperature Range: -6°C to +190°C
- Operating Flexing Temperature Range: 56°C to +190°C
- Flex Cycle Rating: 1 million cycles
- Compliance: UL (UL Style 2587), CSA (600 V AWM), RoHS II, VDE 0472, California Proposition 65
- Flame Test: CSA FT
- Operational Capacitance: 0.180 uF/m
- DC Resistance (Conductors): Specified, exact value not provided
- Outer Shield DC Resistance: Specified, exact value not provided
Buy the Belden Series Shielded Cables: 73607WS 600V Multi-Conductor
Discover the high-performance Belden shielded multi-conductor cable designed for 600V applications, offering exceptional flexibility with up to 1 million flex cycles. It features 16 AWG stranded copper conductors, PVC insulation, oil-resistant inner jacket, and a tinned copper braid shield with 85% coverage. The outer PVC jacket resists oil and abrasion, making it suitable for industrial automation, control panels, and flexible wiring where durability, shielded protection, and electrical safety are critical. Purchase online easily to ensure quality and compliance in your electrical projects.
Get Belden 73607WS today—built for high flex endurance, shielded protection, and reliable electrical performance in industrial environments.
Frequently Asked Questions
Where can I buy BELDEN 73607WS0081000?
You can click on the BUY or RFQ button to purchase 73607WS0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 73607WS0081000?
You can download the 73607WS0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 73607WS0081000?
BELDEN
