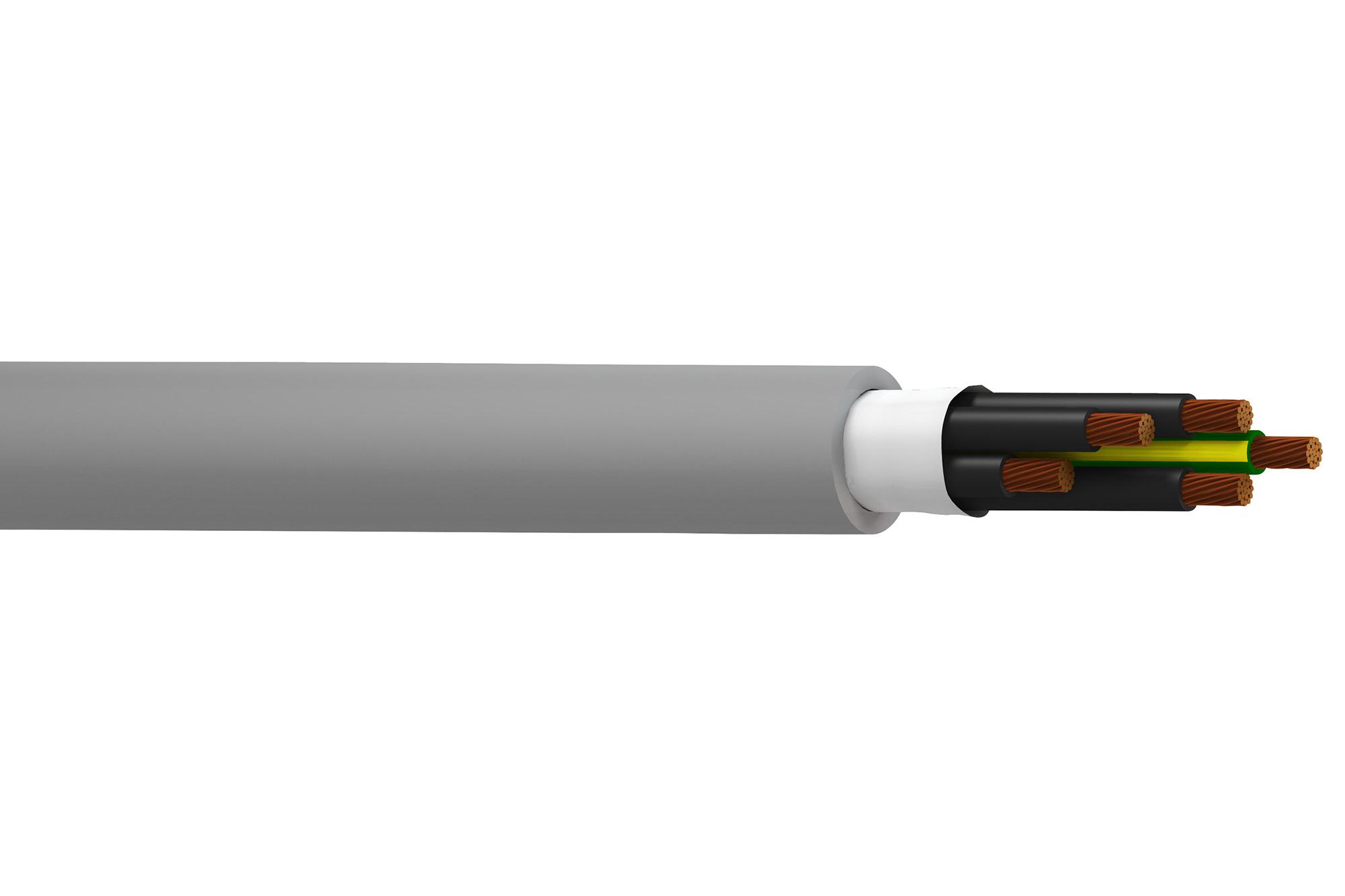

BELDEN 73804W0081000 Multi-Conductor Cable
The Belden 73804W 0081000 multi-conductor cable is a versatile solution for various industrial applications requiring flexibility and durability. Constructed with 18 AWG stranded bare copper conductors, PVC insulation, and an oil-resistant PVC jacket, this cable is designed to withstand up to 1 million flex cycles. Its unshielded design makes it suitable for applications where shielding is not required, while its 600V rating ensures safe operation in demanding environments. Commonly used in control systems, automation equipment, and power distribution, the 73804W 0081000 offers reliable performance and long-lasting durability.
BELDEN 73804W0081000 Multi-Conductor Cable Specifications:
- Conductor AWG: 18
- # Conductors: 4
- Conductor Stranding: 16x30
- Conductor Material: BC - Bare Copper
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.559
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Nominal Diameter (mm): 7.518
- Storage Temperature Range (°C): -40 To +90
- Installation Temperature Range (°C): -5 To +90
- Bulk Cable Weight (Kg/Km): 157.749
- Max. Recommended Pulling Tension (N): 222.410
- Min. Bend Radius (mm): 38.100
- Flex Cycle Rating: 1 Million Flexes
- AWM Specification: UL Style 2587 (600 V 90°C)
- CSA Specification: 600 V AWM I/II A/B
- EU RoHS Compliant: Yes
- MII Order #39 (China RoHS): Yes
- Max. Capacitance (pF/m) @ 0.001 MHz: 101.711
- Nominal Conductor DC Resistance (Ohm/km): 21.983
- Max. Operating Voltage (UL): 600V
- Putup (FT): 1000
- Ship Weight (LB): 110.000
- Color: GRAY
