BELDEN 73804WS0081000 Multi-Conductor Shielded Cable

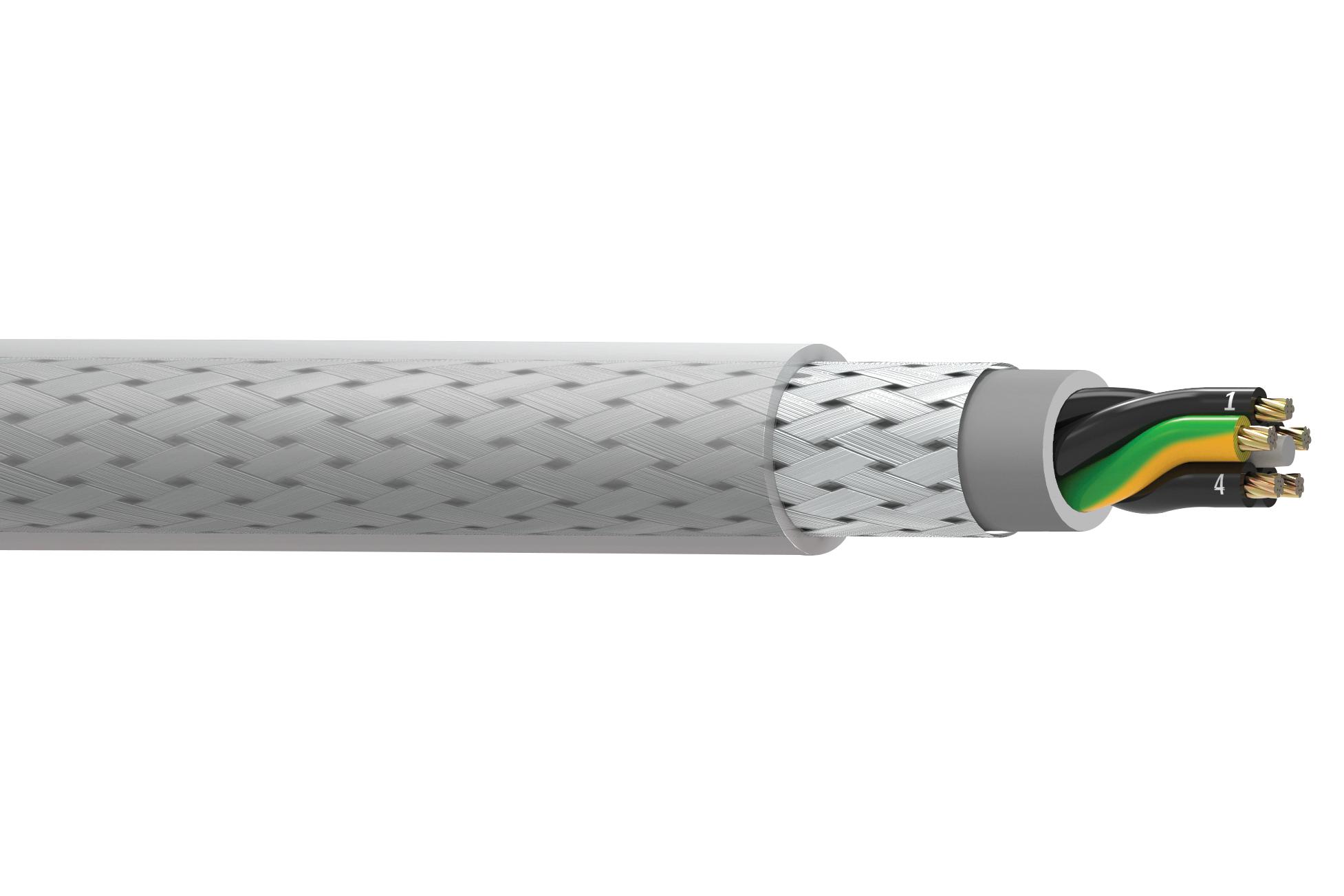

The Belden 73804WS is a robust multi-conductor shielded cable suitable for a wide range of industrial applications requiring flexibility and protection. Constructed with 18 AWG stranded bare copper conductors, PVC insulation, and an oil-resistant PVC inner jacket, this cable provides excellent signal transmission and resistance to environmental factors. The tinned copper braid shield offers effective electromagnetic interference (EMI) protection, while the overall PVC jacket ensures durability and longevity. Ideal for applications involving light to moderate flexing, this cable is designed to withstand up to 1 million flex life cycles, making it a reliable choice for dynamic environments.
BELDEN 73804WS0081000 Multi-Conductor Shielded Cable Specifications:
- Conductor AWG: 18
- Number of Conductors: 4
- Conductor Stranding: 16x30
- Conductor Material: BC - Bare Copper
- Overall Nominal Diameter: 0.384 in.
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness: 0.022 in.
- Insulation Diameter: 0.091 in.
- Inner Jacket Material: PVC - Polyvinyl Chloride
- Inner Jacket Wall Thickness: 0.030 in.
- Inner Jacket Diameter: 0.286 in.
- Outer Shield Material: TC - Tinned Copper
- Shield Coverage: 85.000%
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Wall Thickness: 0.035 in.
- Storage Temperature Range: -40°C To +90°C
- Installation Temperature Range (Flexing): -5°C To +90°C
- Operating Temperature Range (Flexing): -5°C To +90°C
- Bulk Cable Weight: 184 lbs/1000 ft.
- Max Recommended Pulling Tension: 59 lbs.
- Min Bend Radius (Minor Axis): 1.920 in.
- Min Bend Radius (Continuous Flexing): 1.920 in.
- Flex Cycle Rating: 1 Million Flexes
- NEC/UL Specification: THHN/THWN Singles
- AWM Specification: UL Style 2587 (600 V 90°C)
- CSA Specification: 600 V AWM I/II A/B
- EU Directive 2011/65/EU (ROHS II): Yes
- Nominal Inductance: 0.190 µH/ft
- Nominal Capacitance (Cond to Cond): 44.000 pF/ft
- Nominal Capacitance (Cond to Ground): 79.000 pF/ft
- Nominal Conductor DC Resistance (DCR @ 20°C): 6.600 Ohm/1000 ft
- Nominal Outer Shield DC Resistance (DCR @ 20°C): 2.260 Ohm/1000 ft
