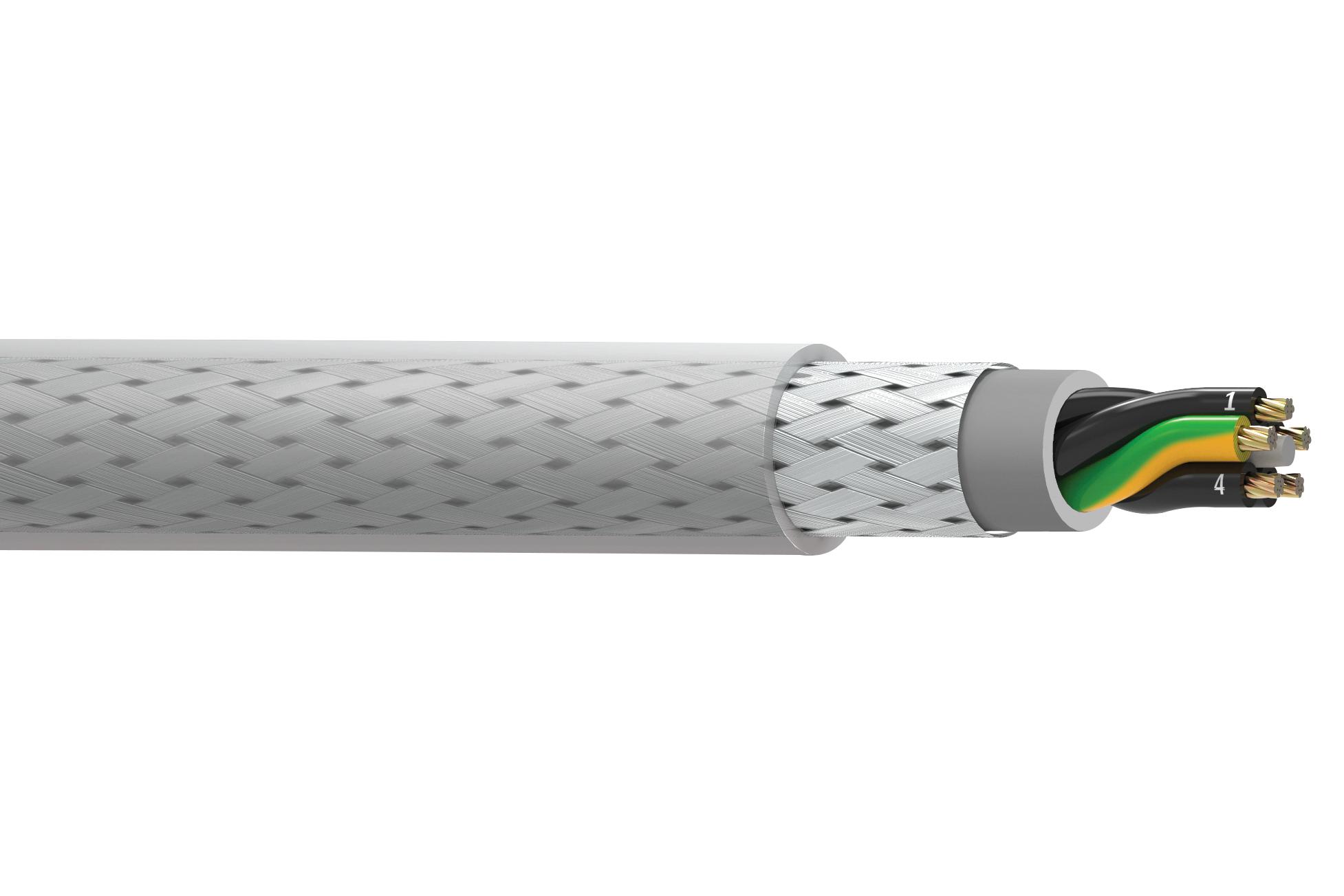

BELDEN 73805WS0081000 Multi-Conductor Shielded Cable
The Belden 73805WS 0081000 is a robust multi-conductor shielded cable engineered for demanding environments. Constructed with 18 AWG stranded bare copper conductors, PVC insulation, and an oil-resistant PVC inner jacket, this cable provides excellent electrical performance and durability. The tinned copper braid shield ensures effective signal protection against electromagnetic interference, while the overall PVC jacket offers resistance to oils and abrasion. Ideal for applications such as industrial automation, control systems, and data transmission where flexibility and signal integrity are critical, the 73805WS 0081000 is designed to withstand up to 1 million flex life cycles. It meets various industry standards including UL, CSA, and EU directives.
BELDEN 73805WS0081000 Multi-Conductor Shielded Cable Specifications:
- Conductor AWG: 18
- Number of Conductors: 5
- Ground Wire AWG: 18
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.559
- Overall Nominal Diameter (mm): 10.516
- Inner Jacket Material: PVC - Polyvinyl Chloride
- Inner Jacket Nominal Wall Thickness (mm): 0.762
- Outer Shield Material: TC - Tinned Copper
- Shield Coverage (%): 85.000
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nominal Wall Thickness (mm): 0.889
- Storage Temperature Range (°C): -40 To +90
- Installation Temperature Range (°C): -5 To +90 (Flexing)
- Operating Temperature Range (°C): -5 To +90 (Flexing)
- Bulk Cable Weight (Kg/Km): 322.939
- Max. Recommended Pulling Tension (N): 320.270
- Min. Bend Radius (mm): 52.578
- Flex Cycle Rating: 1 Million Flexes
- NEC/UL Specification: THHN/THWN Singles
- AWM Specification: UL Style 2587 (600 V 90°C)
- CSA Specification: 600 V AWM I/II A/B
- EU Directive 2011/65/EU (ROHS II): Yes
- Nominal Inductance (µH/m): 0.623
- Nominal Capacitance Cond. to Other Cond. & Ground (pF/m): 144.364
- Nominal Conductor DC Resistance (Ohm/km): 21.655
- Nominal Outer Shield DC Resistance (Ohm/km): 8.104
