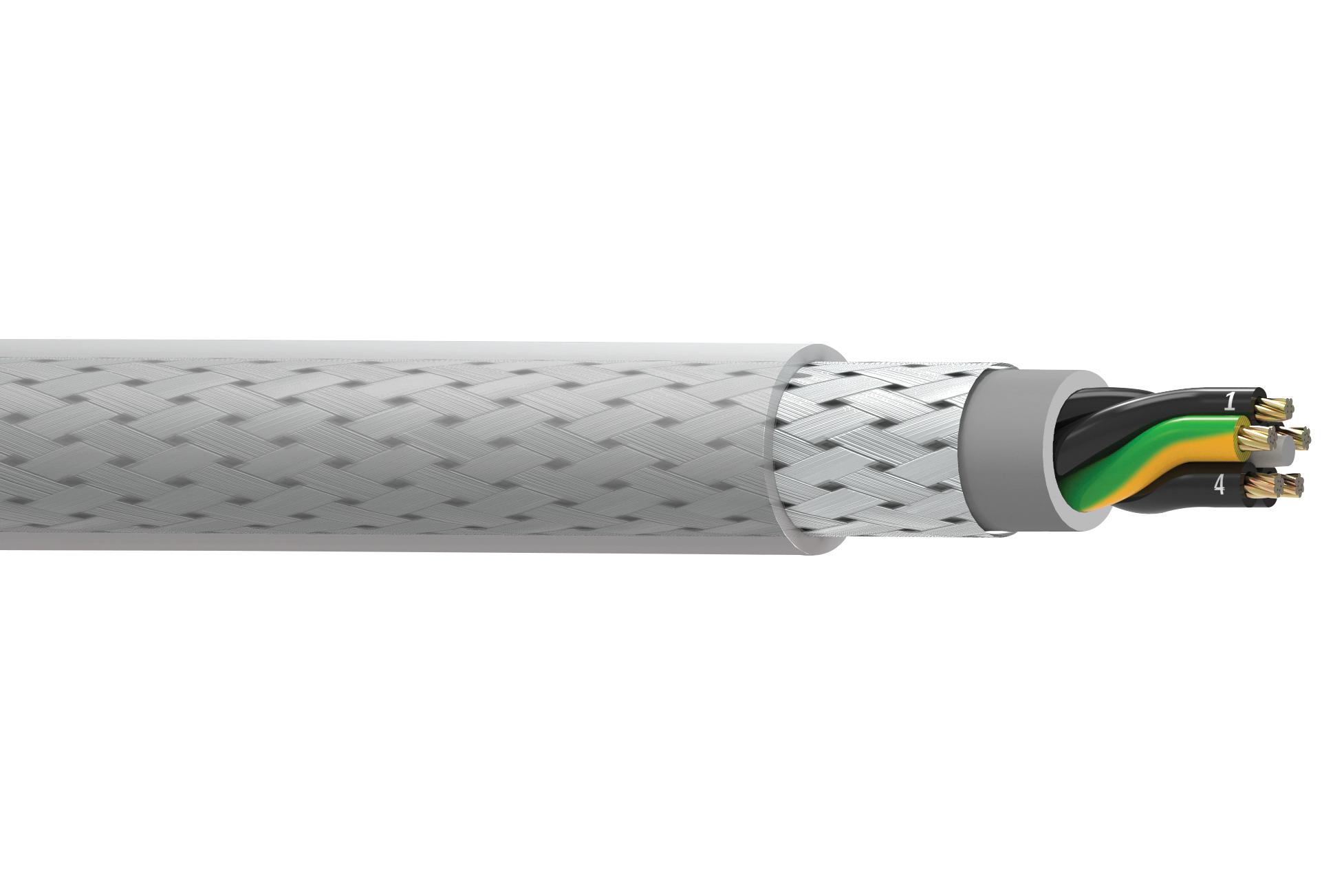

BELDEN 73807WS0081000 Multi-Conductor Shielded Cable
The Belden 73807WS is a robust multi-conductor shielded cable suitable for a variety of industrial applications requiring flexibility and protection from electromagnetic interference. Constructed with 18 AWG stranded bare copper conductors, PVC insulation, an oil-resistant PVC inner jacket, and a tinned copper braid shield providing 85% coverage, this cable offers excellent signal integrity and durability. The overall PVC jacket provides resistance to oils and abrasion, making it suitable for demanding environments. Its design supports up to 1 million flex life cycles, making it ideal for applications involving continuous movement or flexing. It meets various industry standards including UL, CSA, and EU directives.
BELDEN 73807WS0081000 Multi-Conductor Shielded Cable Specifications:
- Overall Nominal Diameter: 0.439 in.
- Conductor AWG: 18
- Number of Conductors: 7
- Ground Wire AWG: 18
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (in.): 0.022
- Insulation Dia. (in.): 0.091
- Inner Jacket Material: PVC - Polyvinyl Chloride
- Inner Jacket Nom Wall (in.): 0.030
- Inner Jacket Nom. Dia. (in.): 0.341
- Outer Shield Material: TC - Tinned Copper
- Outer Shield Coverage (%): 85.000
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Wall Thickness (in.): 0.035
- Storage Temperature Range: -40°C To +90°C
- Installation Temperature Range (Flexing): -5°C To +90°C
- Operating Temperature Range (Flexing): -5°C To +90°C
- Bulk Cable Weight: 253 lbs/1000 ft.
- Max Recommended Pulling Tension: 97 lbs.
- Min Bend Radius/Minor Axis: 2.200 in.
- Min Bend/Installation: 2.200 in.
- Min Bend Radius (Continuous Flexing): 2.200 in.
- Flex Cycle Rating: 1 Million Flexes
- NEC/UL Specification: THHN/THWN Singles
- AWM Specification: UL Style 2587 (600 V 90°C)
- CSA Specification: 600 V AWM I/II A/B
- EU Directive 2011/65/EU (ROHS II): Yes
- Nom Inductance (µH/ft): 0.190
- Nom Capacitance Cond to Other Cond & Ground (pF/ft): 44.000
- Nom Capacitance Ground (pF/ft): 79.000
- Nom Conductor DC Resistance (Ohm/1000 ft): 6.600
- Nominal Outer Shield DC Resistance (Ohm/1000 ft): 2.600
