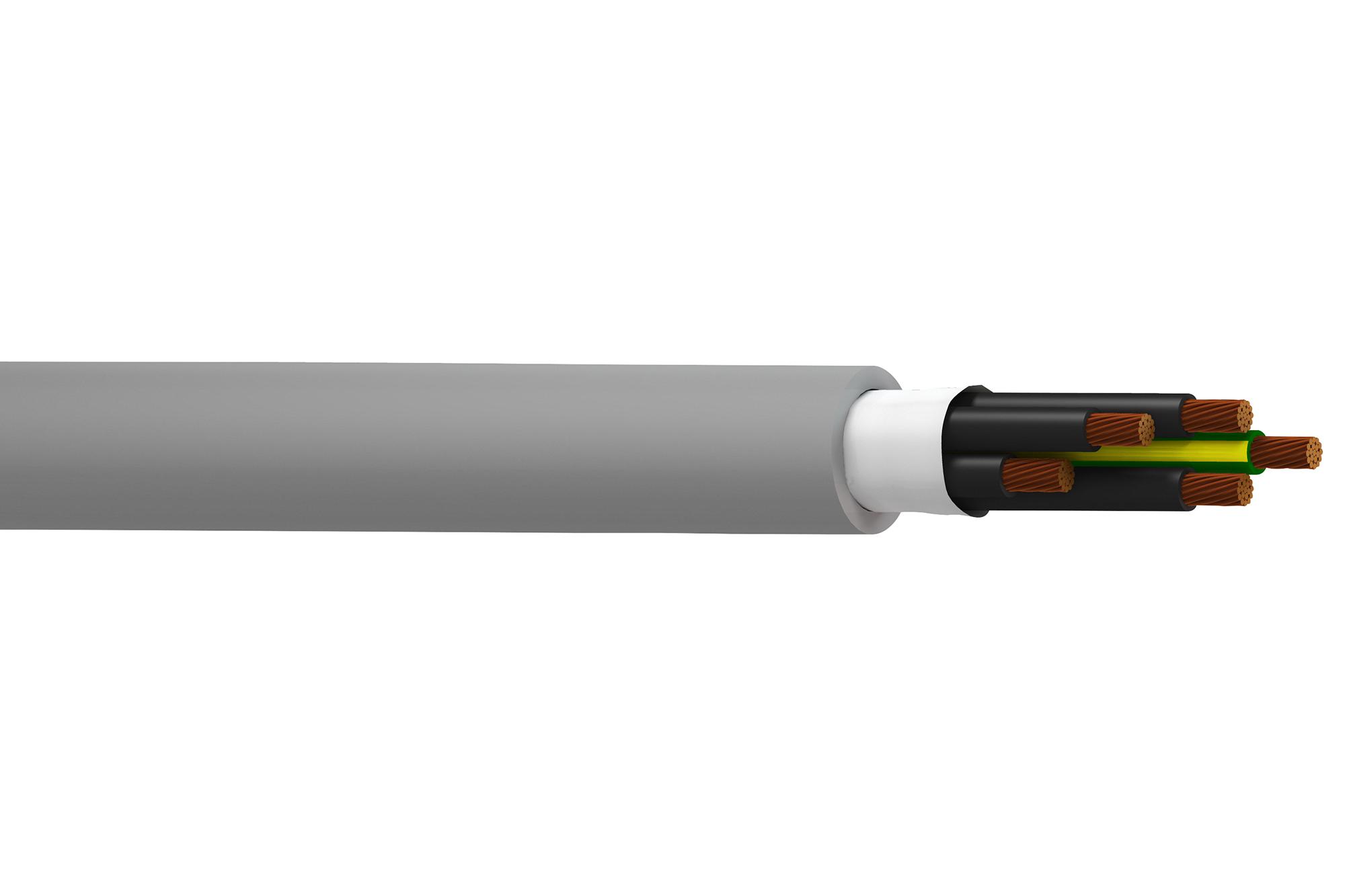

BELDEN 73809W008100 Multi-Conductor Cable
The Belden 73809W 008100 multi-conductor cable is a versatile solution for various industrial applications requiring flexibility and durability. Constructed with 18 AWG stranded bare copper conductors, PVC insulation, and a PVC jacket, this cable is designed to withstand light to moderate flexing up to 1 million cycles. Its 600V rating makes it suitable for a range of electrical applications. The cable also includes a ground wire for added safety and grounding capabilities. It is RoHS compliant and meets various industry standards, making it a reliable choice for demanding environments.
BELDEN 73809W008100 Multi-Conductor Cable Specifications:
- Conductor AWG: 18
- Number of Conductors: 9
- Conductor Stranding: 16x30
- Conductor Material: BC - Bare Copper
- Ground Wire AWG: 18
- Ground Wire Stranding: 16x30
- Ground Wire Conductor Material: BC - Bare Copper
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.559
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Nominal Outer Jacket Thickness (mm): 0.889
- Overall Nominal Diameter (mm): 11.303
- Storage Temperature Range (°C): -40 to +90
- Installation Temperature Range (°C): -5 to +90 (Flexing)
- Bulk Cable Weight (Kg/Km): 446.460
- Max Recommended Pulling Tension (N): 502.647
- Min Bend Radius (mm): 55.880
- Flex Cycle Rating: 1 Million Flexes
- AWM Specification: UL Style 2587 (600 V 90°C)
- CSA Specification: 600 V AWM I/II A/B
- EU RoHS Compliant: Yes
- MII Order #39 (China RoHS): Yes
- DCR @ 20°C (Ohm/km): 21.983
- Max Operating Voltage - UL (V): 600
- Inductance (µH/m): 0.623
- Capacitance (pF/m) @ 0.001 MHz: 101.711
