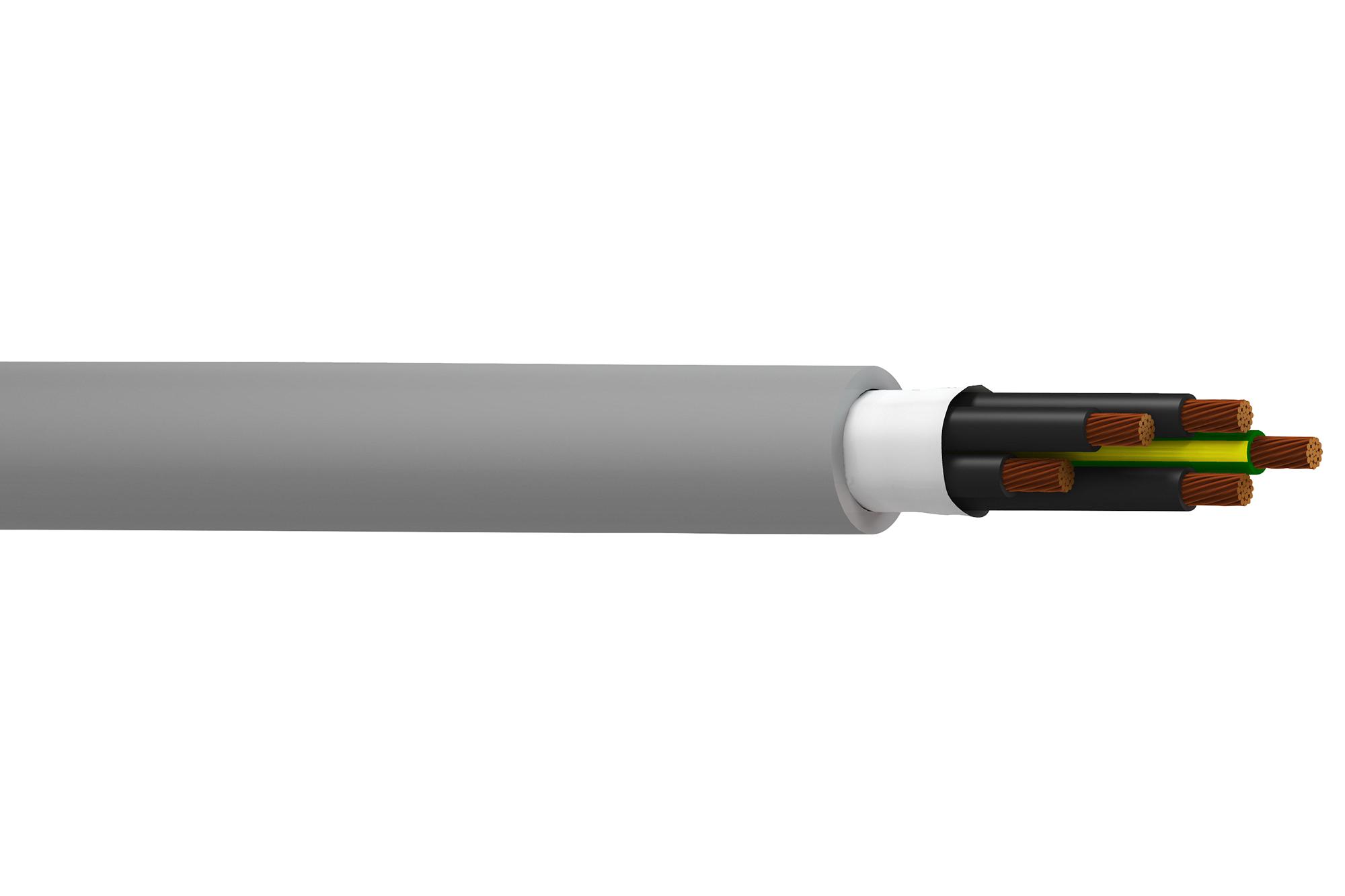

BELDEN 73812W008100 Multi-Conductor Cable
The BELDEN 73812W 008100 is a versatile multi-conductor cable designed for a range of industrial applications requiring flexibility and durability. Constructed with 18 AWG stranded bare copper conductors, PVC insulation, and an oil-resistant PVC jacket, this cable offers excellent performance in environments with light to moderate flexing. It is rated for 600V and supports up to 1 million flex life cycles, making it suitable for applications in machinery, control systems, and power distribution. The cable's unshielded design makes it ideal for applications where shielding is not required, reducing weight and cost.
BELDEN 73812W008100 Multi-Conductor Cable Specifications:
- Conductor AWG: 18
- # Conductors: 12
- Conductor Stranding: 16x30
- Conductor Material: BC - Bare Copper
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.559
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Nominal Diameter (mm): 11.938
- Storage Temperature Range: -40°C To +90°C
- Installation Temperature Range: Flexing: -5°C To +90°C
- Bulk Cable Weight: 565.516 Kg/Km
- Max. Recommended Pulling Tension: 671.678 N
- Min. Bend Radius/Minor Axis: 60.960 mm
- Flex Cycle Rating: 1 Million Flexes
- AWM Specification: UL Style 2587 (600 V 90°C)
- CSA Specification: 600 V AWM I/II A/B
- EU Directive 2011/65/EU (ROHS II): Yes
- MII Order #39 (China RoHS): Yes
- Nominal Inductance (µH/m): 0.623
- Capacitance (pF/m): 101.711
- DCR @ 20°C (Ohm/km): 21.983
- Max. Operating Voltage - UL: 600V
- Putup: 100 FT
- Ship Weight: 33.500 LB
- Color: GRAY
