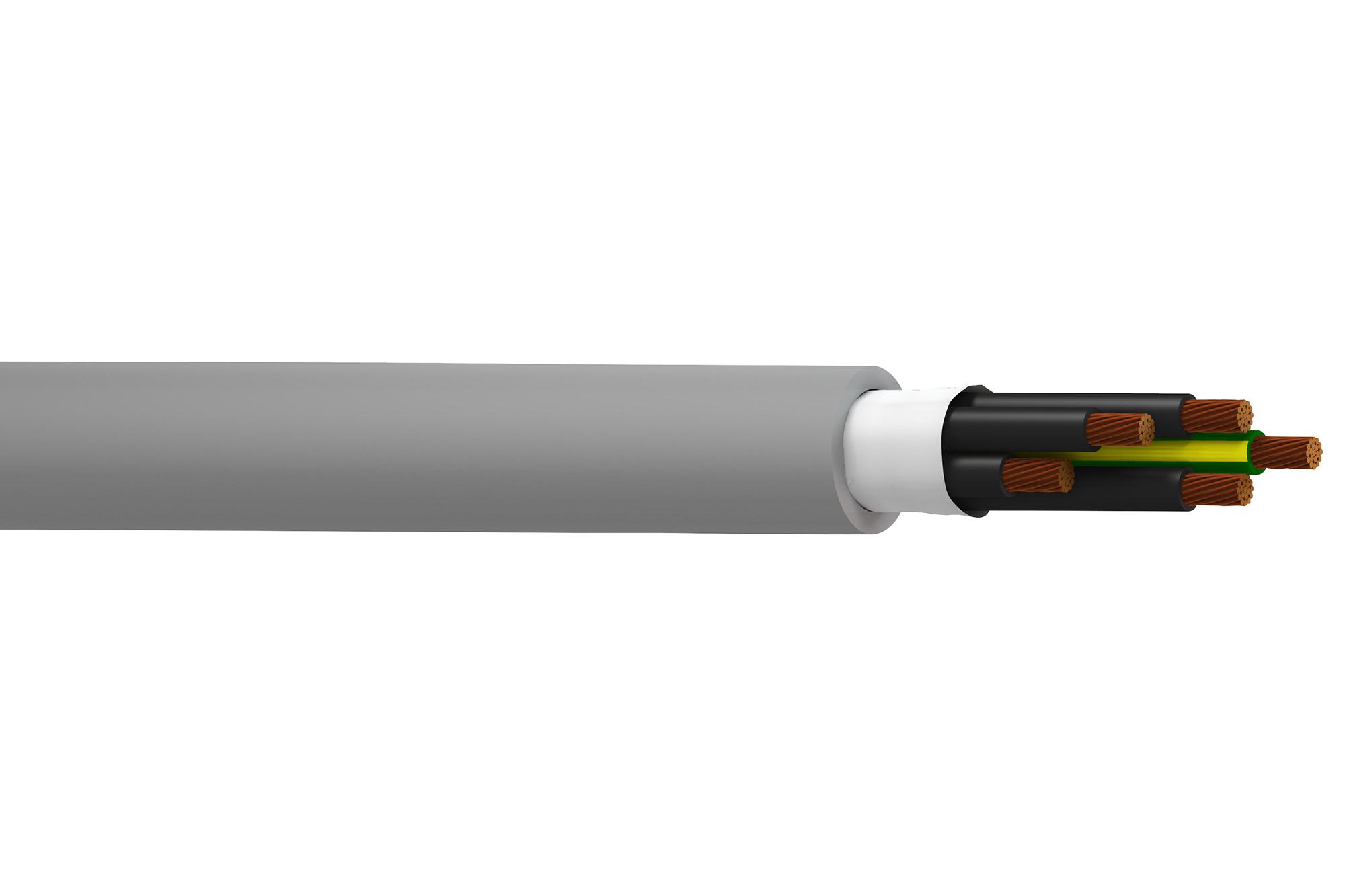

BELDEN 73812W0081000 Multi-Conductor Cable
The Belden 73812W multi-conductor cable is a robust solution for applications requiring flexibility and durability. Constructed with 18 AWG stranded bare copper conductors, PVC insulation, and an oil-resistant PVC jacket, this cable is designed to withstand up to 1 million flex cycles. It is suitable for a variety of industrial applications, including those requiring moderate flexing and 600V operation. The cable's construction ensures reliable signal transmission and protection against environmental factors, making it a dependable choice for demanding environments.
BELDEN 73812W0081000 Multi-Conductor Cable Specifications:
- Conductor AWG: 18
- # Conductors: 12
- Conductor Stranding: 16x30
- Conductor Material: BC - Bare Copper
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.559
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Wall Thickness (mm): 1.092
- Overall Nominal Diameter: 11.938 mm
- Storage Temperature Range: -40°C To +90°C
- Installation Temperature Range: Flexing: -5°C To +90°C
- Bulk Cable Weight: 565.516 Kg/Km
- Max. Recommended Pulling Tension: 671.678 N
- Min. Bend Radius/Minor Axis: 60.960 mm
- Min. Bend/Installation: 60.960 mm
- Min. Bend Radius (Continuous Flexing): 60.960 mm
- Flex Cycle Rating: 1 Million Flexes
- AWM Specification: UL Style 2587 (600 V 90°C)
- CSA Specification: 600 V AWM I/II A/B
- EU Directive 2011/65/EU (ROHS II): Yes
- MII Order #39 (China RoHS): Yes
- Nominal Inductance (µH/m): 0.623
- Max. Capacitance Conductor to Conductor (pF/m): 101.711
- Nom. Conductor DC Resistance (Ohm/km): 21.983
- Max. Operating Voltage - UL: 600V
- Putup: 1000 FT
- Ship Weight: 294.000 LB
