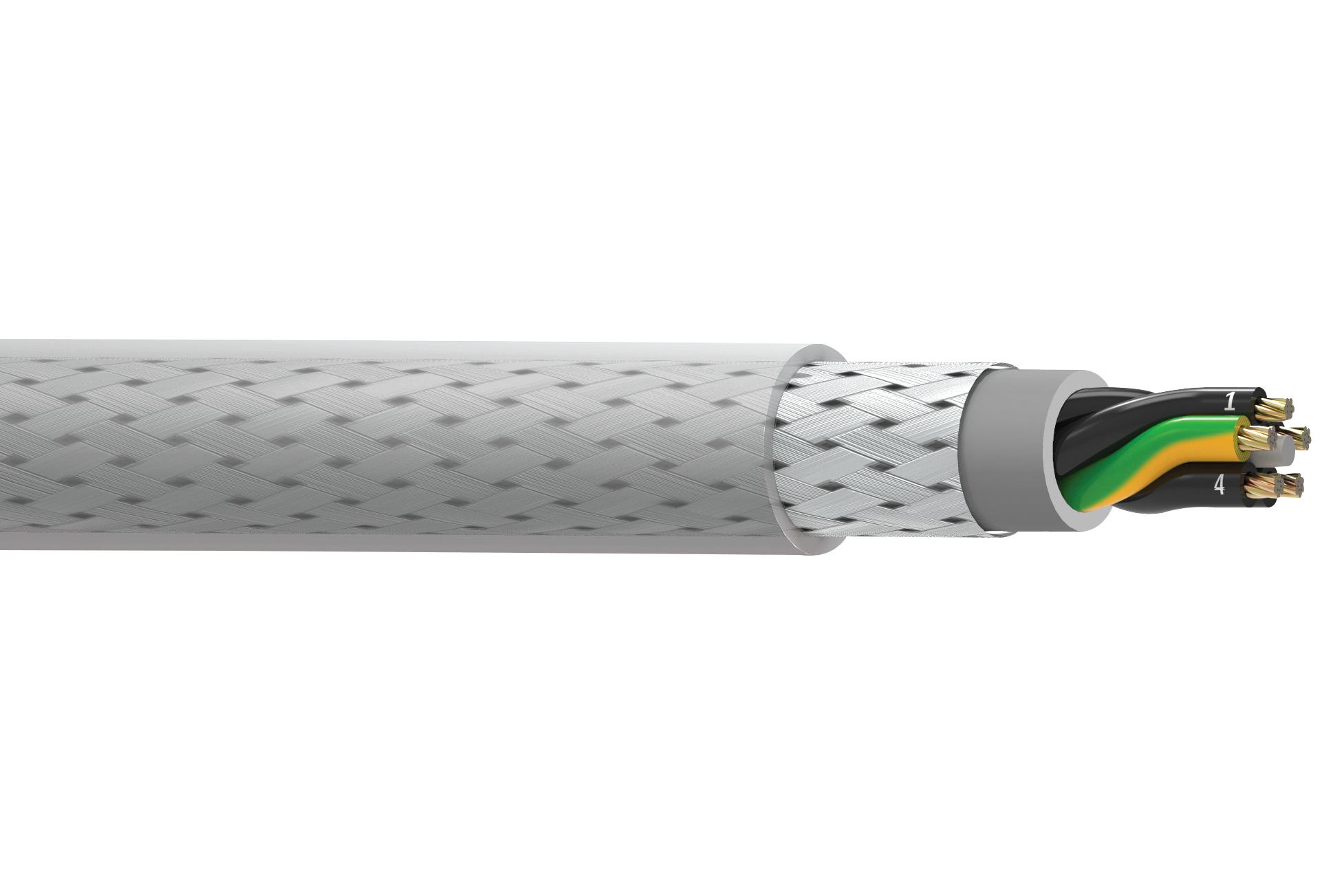

BELDEN 73812WS008100 Multi-Conductor Shielded Cable
The BELDEN 73812WS 008100 is a robust multi-conductor shielded cable engineered for demanding applications requiring flexibility and signal integrity. Constructed with 18 AWG stranded bare copper conductors, PVC insulation, an oil-resistant PVC inner jacket, a tinned copper braid shield (85% coverage), and an overall oil-resistant PVC jacket, this cable provides excellent protection against environmental factors and electromagnetic interference. Its design allows for up to 1 million flex life cycles, making it suitable for dynamic environments. Commonly used in industrial control systems, automation equipment, and data transmission applications where flexibility and reliable signal transmission are critical.
BELDEN 73812WS008100 Multi-Conductor Shielded Cable Specifications:
- Conductor AWG: 18
- Number of Conductors: 7
- Ground Wire AWG: 18
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.559
- Overall Nominal Diameter (mm): 14.427
- Inner Jacket Material: PVC - Polyvinyl Chloride
- Inner Jacket Nominal Wall Thickness (mm): 0.762
- Outer Shield Material: TC - Tinned Copper
- Shield Coverage (%): 85.000
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nominal Wall Thickness (mm): 1.143
- Storage Temperature Range: -40°C To +90°C
- Installation Temperature Range (Flexing): -5°C To +90°C
- Operating Temperature Range (Flexing): -5°C To +90°C
- Bulk Cable Weight (Kg/Km): 630.997
- Max Recommended Pulling Tension (N): 733.953
- Min Bend Radius/Minor Axis (mm): 72.136
- Min Bend/Installation (mm): 72.136
- Min Bend Radius (Continuous Flexing) (mm): 72.136
- Flex Cycle Rating: 1 Million Flexes
- NEC/UL Specification: THHN/THWN Singles
- AWM Specification: UL Style 2587 (600 V 90°C)
- CSA Specification: 600 V AWM I/II A/B
- EU Directive 2011/65/EU (ROHS II): Yes
- Nominal Inductance (µH/m): 0.623
- Nominal Capacitance Cond. to Other Cond. & Ground (pF/m): 144.364
- Nominal Conductor DC Resistance (Ohm/km): 21.655
- Nominal Outer Shield DC Resistance (Ohm/km): 5.643
