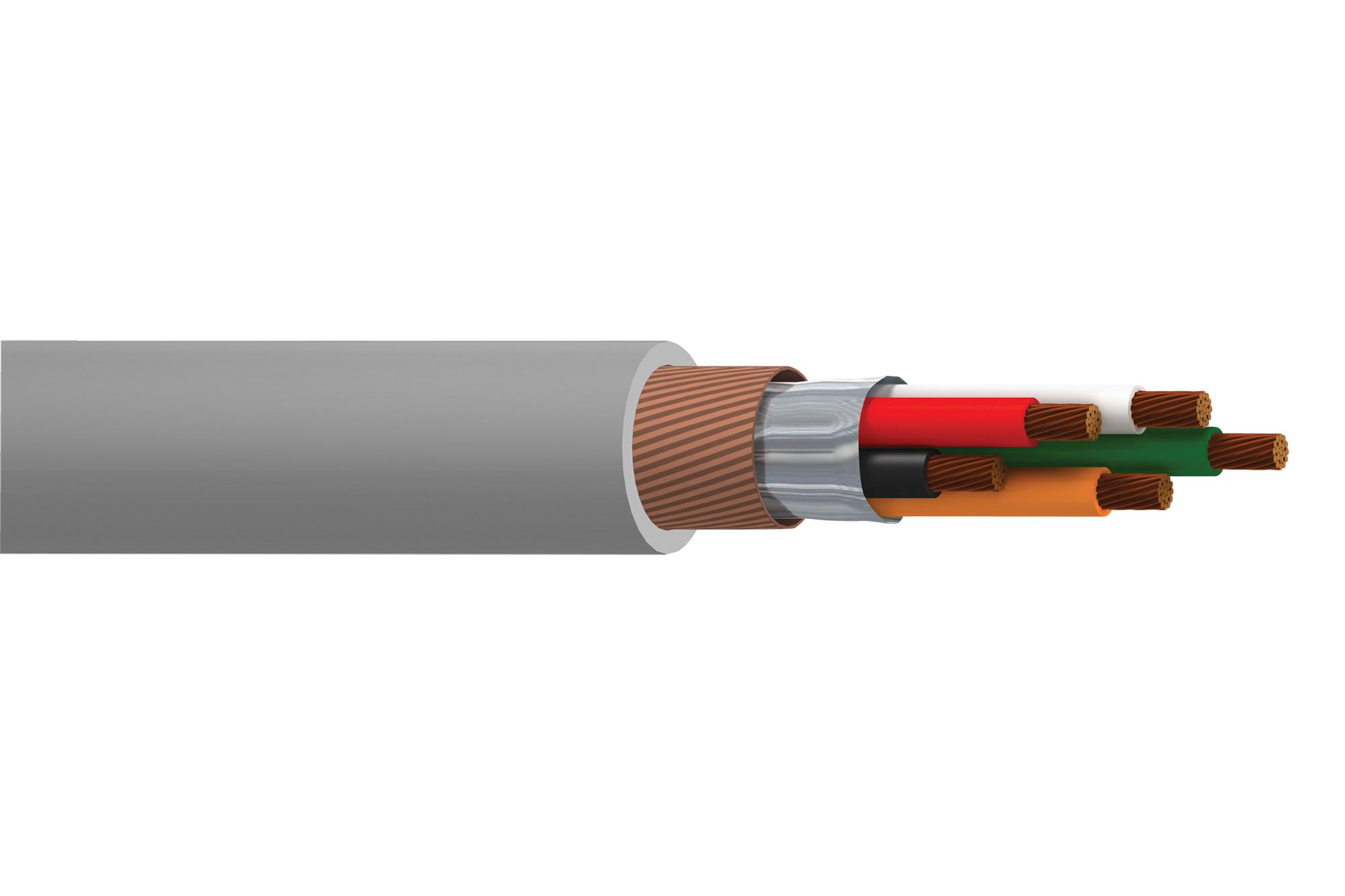

BELDEN 76007WS008100 Industrial Data Cable
The MachFlex 76007WS Series Multiconductor Data Cable with foil and spiral shielding is engineered for industrial environments requiring flexible, durable, and reliable data transmission. Supporting continuous flexing up to 6 million cycles, it features 28 AWG stranded tinned copper conductors, PVC insulation, and oil-resistant PVC jackets that withstand harsh conditions. The cable's 90% coverage foil and spiral shields provide excellent EMI protection. It operates within a temperature range of -10°C to 105°C (static) and +5°C to 105°C (dynamic), with a maximum voltage rating of 300V, suitable for automation, industrial control, and factory automation systems.
BELDEN 76007WS008100 Industrial Data Cable Specifications:
- Conductors: 28 AWG stranded (7x36) tinned copper
- Insulation Material: PVC, 0.010 in thickness
- Outer Shield Material: Aluminum/Polyester foil, Spiral shield with 90% coverage
- Outer Jacket: Oil-resistant PVC, overall diameter 0.223 in.
- Mechanical: Weight 31 lbs/1000 ft, Max pulling tension 14,800 lbs, Min bend radius 1.800 in.
- Electrical: Nominal capacitance unspecified, Resistance 66.000 ohms, Operating voltage 300V, Temperature range -10°C to 105°C static, +5°C to 105°C dynamic.
- Standards & Compliance: UL, RoHS, Reach, CSA flame test, suitable for burial, Mil Order #39 (China RoHS)
Buy the Buy Belden Data Cable Part Number 76007WS008100 Online
Purchase the Belden 76007WS series multiconductor data cable online and benefit from high flexibility with support for 6 million flex cycles. Designed for demanding industrial environments, it features foil and spiral shields for excellent EMI protection, a robust oil-resistant PVC jacket, and reliable DC resistance. This versatile cable supports operations within temperatures from -10°C to 105°C, with a voltage rating of 300V, making it perfect for automation, factory automation, and process control applications. Buy online today for seamless integration into your systems and ensure dependable performance.
Order your Belden Series76007WS 008100 durable data cable today and ensure reliable data transmission for your industrial automation and control projects.
Frequently Asked Questions
Where can I buy BELDEN 76007WS008100?
You can click on the BUY or RFQ button to purchase 76007WS008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76007WS008100?
You can download the 76007WS008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76007WS008100?
BELDEN
