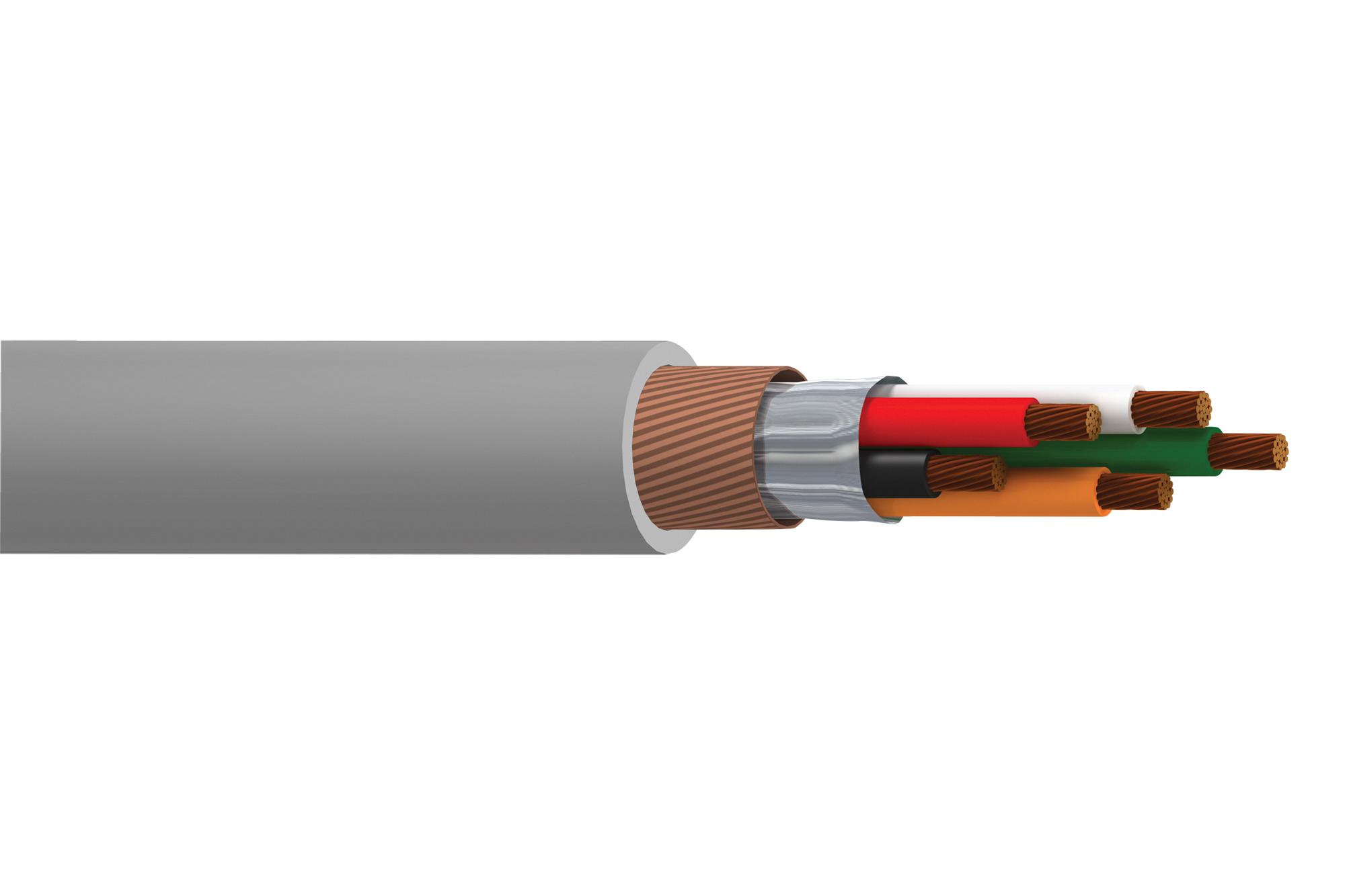

BELDEN 76018WS0081000 Data Transmission Cable
The Belden 76018WS multi-conductor cable is designed for data applications requiring high flex life, featuring 28 AWG tinned copper conductors, PVC insulation, aluminum/polyester foil shield, and a tinned copper spiral shield with 90% coverage. It withstands continuous flexing with an impressive 6 million flex cycles, making it ideal for demanding environments. The cable's outer jacket is oil-resistant PVC, offering durability and protection. Suitable for burial and compliant with RoHS, UL, CSA, and environmental standards, it ensures reliable performance in various electrical and data transmission applications.
BELDEN 76018WS0081000 Data Transmission Cable Specifications:
- Conductor: 28 AWG stranded (7x36) tinned copper
- Insulation: PVC, color-coded
- Outer Shield: Aluminum/Polyester foil, 90% coverage
- Shield Material: Tinned copper spiral shield
- Outer Jacket: Oil-resistant PVC
- Overall Nominal Diameter: 7.163 mm
- Bulk Cable Weight: 81.851 Kg/Km
- Max. Recommended Pulling Tension: 137.894 N
- Min. Bend Radius: 58.420 mm
- Flex Cycle Rating: 6 Million flexes
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Applicable Standards: UL, CSA FT4 Flame Test, RoHS, REACH, California Proposition 65
- Suitable for burial, oil-resistant, compliant with environmental regulations
Buy the Buy Belden Data Cable Part Number 76018WS0081000 Online
Purchase the Belden 76018WS high-flex data cable online today to ensure superior performance and durability for your complex data and industrial applications. Designed with 28 AWG stranded tinned copper conductors, this cable features a robust foil and spiral shield with 90% coverage, providing excellent EMI protection. Its oil-resistant PVC jacket ensures longevity in challenging environments. Suitable for continuous flexing with a rated flex life of 6 million cycles, it guarantees reliable signal transmission and physical flexibility for demanding projects. Order now to enhance your wiring solutions with this high-quality cable.
Order your Belden Series76018WS 300V Data Cable today and ensure your data transmission needs are met with reliable, flexible, and durable cable solutions.
Frequently Asked Questions
Where can I buy BELDEN 76018WS0081000?
You can click on the BUY or RFQ button to purchase 76018WS0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76018WS0081000?
You can download the 76018WS0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76018WS0081000?
BELDEN
