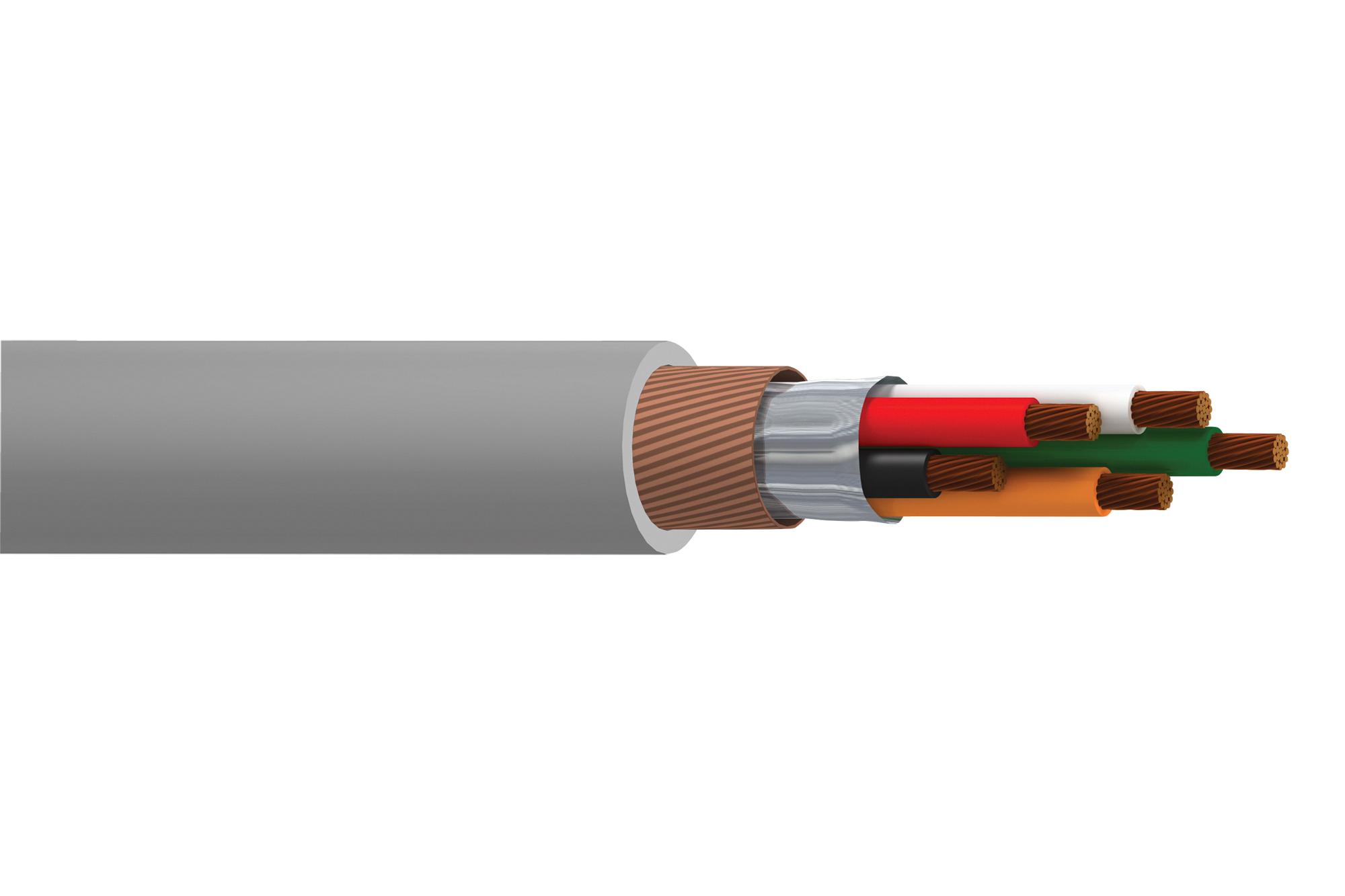

BELDEN 76103WS008100 Multiconductor Data Cable
The MachFlex™ 76000WS Series Multiconductor Foil/Spiral Shielded Data Cable is designed for flexible motion and space-constrained industrial environments. It features 26 AWG stranded tinned copper conductors with PVC insulation, aluminum/polyester foil shield, and a tinned copper spiral shield with 90% coverage. The cable's oil-resistant PVC jacket ensures durability in demanding applications. Suitable for continuous flexing up to 6 million cycles, it operates within -10°C to 105°C (static) and +5°C to 105°C (dynamic), rated at 300V, ideal for industrial automation, factory automation, and process control systems. The overall diameter is approximately 4.775 mm, with a weight of 32.740 kg/km and maximum pull tension of 47.596 N.
BELDEN 76103WS008100 Multiconductor Data Cable Specifications:
- Conductor: 26 AWG stranded (7x33) tinned copper
- Insulation Material: PVC
- Outer Shield Material: Aluminum/Polyester foil, Tinned copper spiral shield
- Outer Jacket Material: Oil-resistant PVC
- Overall Diameter: 4.775 mm
- Bulk Cable Weight: 32.740 kg/km
- Max. Recommended Pulling Tension: 47.596 N
- Minimum Bend Radius (Continuous Flexing): 38.100 mm
- Flex Cycle Rating: 6 Million Flexes
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Applicable Standards & Environmental: UL, CEC, RoHS II, REACH, Prop 65
- Flame Test: CSA FT4
- Suitable for burial: Yes
- Nominal Capacitance: not specified
- Nominal Inductance: not specified
- Nominal Conductor DC Resistance: not specified
- Outer Shield DC Resistance: not specified
- Max Operating Voltage: 300V
Buy the Buy Belden 76000WS Data Cable Part Number 76103WS008100 Online
Order the Belden 76000WS multiconductor data cable online now for reliable, flexible data transmission in industrial automation. Built for continuous flexing and high durability, this shielded cable features foil and spiral shielding, oil-resistant PVC jacket, and is rated at 300V. It supports demanding factory automation, process control, and instrumentation applications. With a diameter of approximately 4.775 mm and weight of 32.740 kg/km, it ensures excellent performance in space-constrained environments. Purchase today for quality, durability, and ease of online shopping.
Get Belden 76000WS cable today—designed for continuous flexing up to 6 million cycles, ensuring long-lasting durability in industrial automation environments.
Frequently Asked Questions
Where can I buy BELDEN 76103WS008100?
You can click on the BUY or RFQ button to purchase 76103WS008100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76103WS008100?
You can download the 76103WS008100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76103WS008100?
BELDEN
