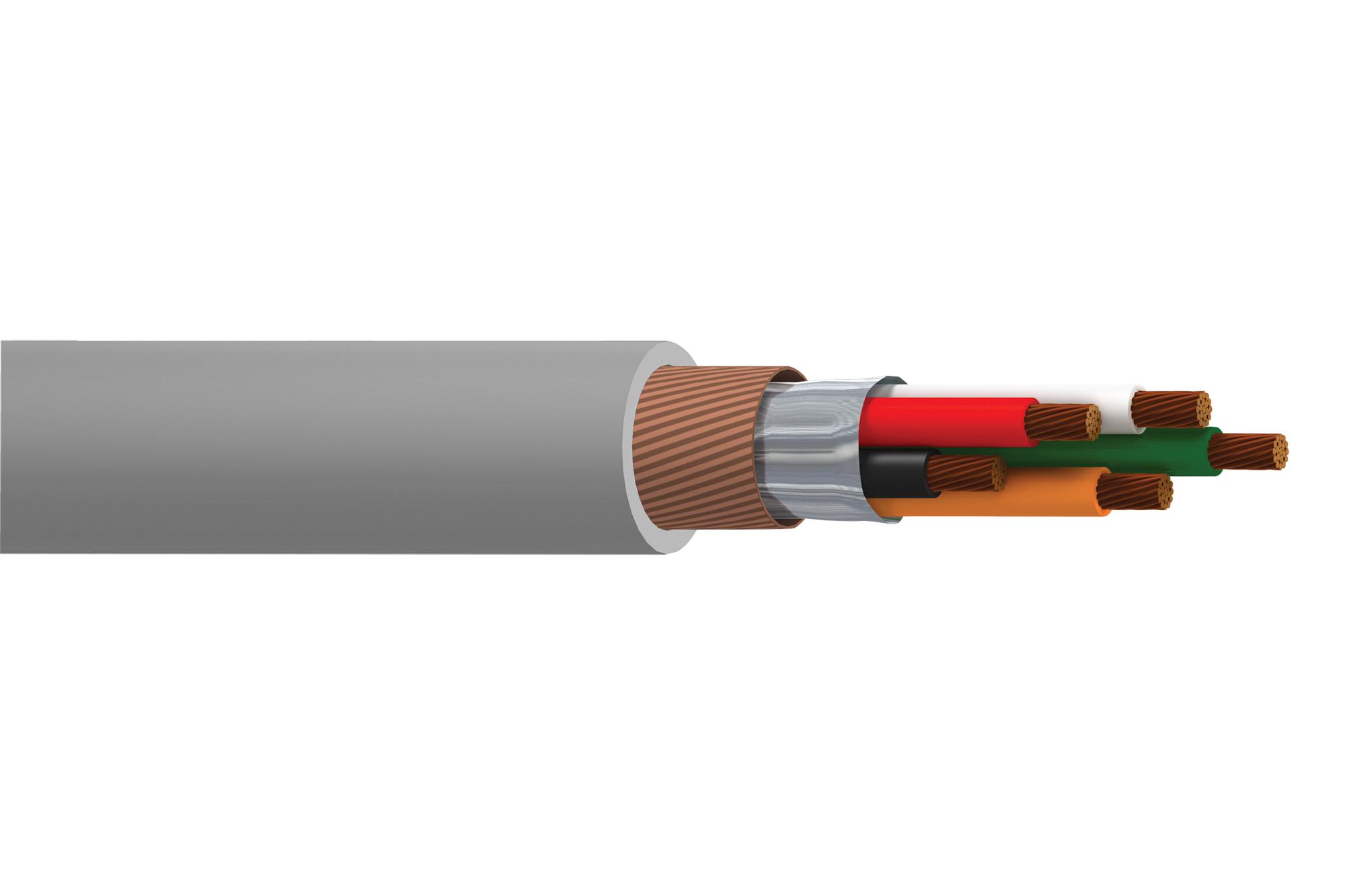

BELDEN 76112WS0081000 Multiconductor Data Cable
The MachFlex™ 76000WS Series Multiconductor Foil/Spiral Shielded Data Cable is designed for industrial applications requiring flexible wiring and efficient space utilization. It features 26 AWG stranded tinned copper conductors, PVC insulation, aluminum/polyester foil shielding, and a tinned copper spiral shield with 90% coverage for excellent EMI protection. The oil-resistant PVC jacket supports continuous flexing up to 6 million cycles, with a temperature range of -10°C to 105°C static and +5°C to 105°C dynamic. Rated at 300V, this cable is ideal for automation, control, and data communication in rugged industrial environments.
BELDEN 76112WS0081000 Multiconductor Data Cable Specifications:
- Conductors: 26 AWG stranded (7x33) tinned copper
- Insulation Material: PVC
- Outer Shield: Aluminum/Polyester foil, 90% coverage, Tinned copper spiral shield
- Outer Jacket: Oil-resistant PVC
- Overall Diameter: 0.303 inches
- Flex Life: Up to 6 million cycles
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Voltage Rating: 300V
- Max. Pulling Tension: 33 lbs.
- Min. Bend Radius: 2.400 inches
- CSA Flame Test: FT4
- Applicable Standards: UL, CEC, RoHS, REACH
- Applicable for burial: Yes
- Bulk Weight: 54 lbs/1000 ft
- Nominal Inductance: Not specified
- Conductor Resistance: 42.000 Ω/km
- Outer Shield Resistance: 3.300 Ω/km
Buy the Belden 76112WS – Reliable Data Cable for Industrial Applications
Purchase the Belden 76112WS series multiconductor data cable online today to ensure high-quality, flexible shielding for your industrial automation and control projects. Designed for continuous flexing up to 6 million cycles, it features foil and spiral copper shields for excellent EMI protection, durable oil-resistant PVC jacket, and operational voltage of 300V. This cable meets industry standards including UL FT4 flame test and RoHS compliance, making it ideal for rugged environments with demanding electrical and mechanical requirements. Boost your system’s reliability now!
Order your Belden 76112WS series flexible multiconductor shielded data cable today and enhance the reliability of your industrial communication systems.
