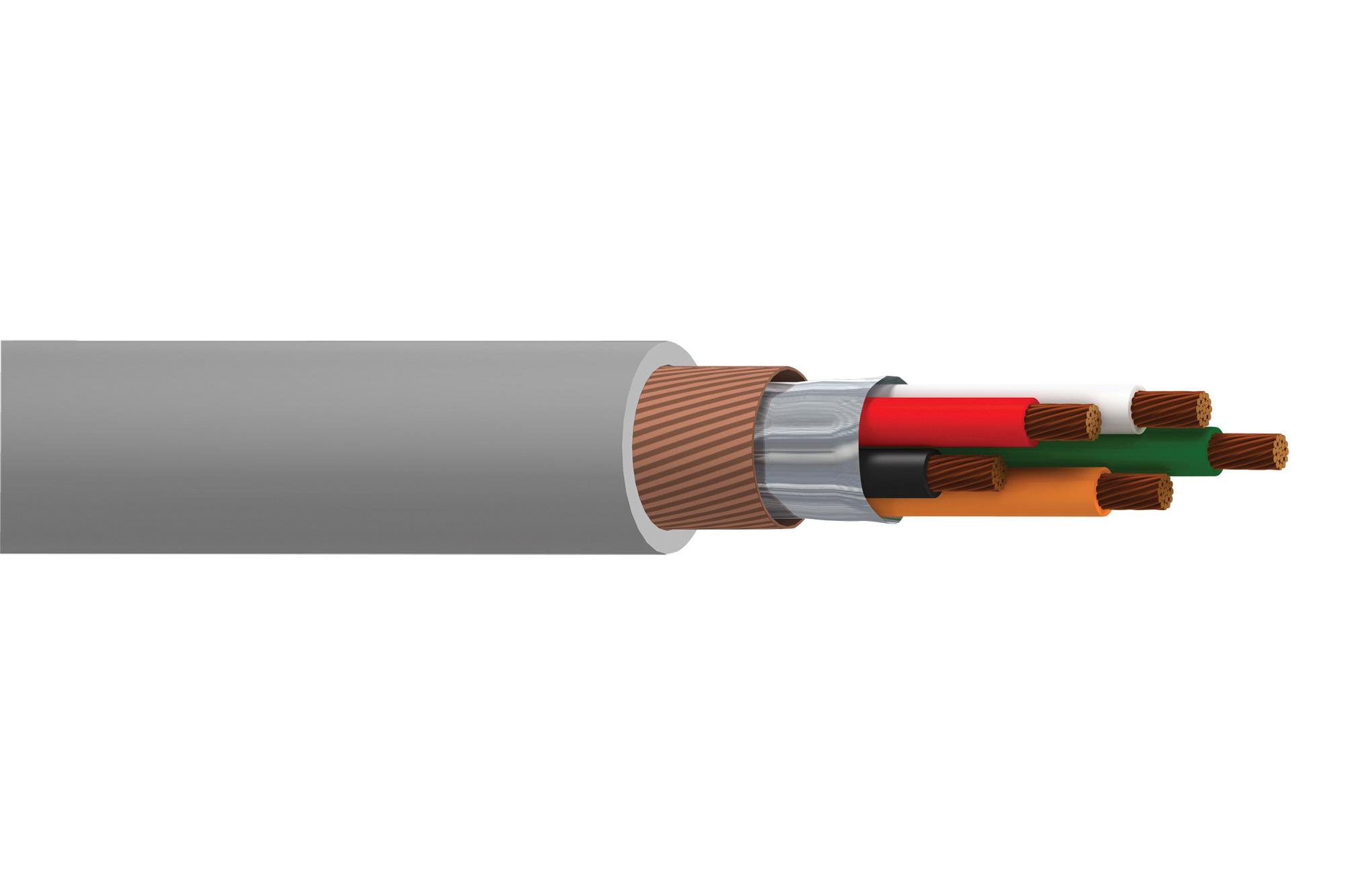

BELDEN 76203WS0081000 Flexible Data Cable
The MachFlex™ 76000WS Series Multiconductor Foil/Spiral Shielded Data Cable is designed for flexible motion and space-constrained industrial applications. It supports continuous flexing up to 6 million cycles, featuring flexible conductor, insulation, and jacket materials. The cable offers good shield effectiveness, an oil-resistant PVC jacket, and a temperature range from -10°C to 105°C for static conditions and +5°C to 105°C during dynamic flexing. Voltage rating is 300V, making it ideal for industrial automation, factory automation, and control systems requiring durable, reliable wiring solutions.
BELDEN 76203WS0081000 Flexible Data Cable Specifications:
- Conductor: 24 AWG stranded (10x34) tinned copper
- Insulation Material: PVC
- Outer Shield: Aluminum/Polyester Foil, Tinned copper spiral shield with 90% coverage
- Outer Jacket Material: Oil-resistant PVC
- Overall Diameter: 5.055 mm
- Bulk Cable Weight: 38.698 Kg/km
- Max Pulling Tension: 61.385 N
- Minimum Bend Radius: 40.640 mm
- Flex Cycle Rating: 6 Million flexes
- Temperature Range: -10°C to 105°C static, +5°C to 105°C dynamic
- Voltage Rating: 300V
- Applicable Standards: UL, CE, RoHS, CSA, REACH
- Flame Test: CSA FT4
- Suitability: Burial yes
- Nominal Capacitance and Resistance values: specified per standards
- Electrical Resistance and inductance: aligned with industry norms
Buy the Belden 76203WS – Reliable Flexible Data Cable for Industrial Applications
Purchase the Belden 76203WS flexible data cable online today to ensure robust communication in industrial automation environments. Designed for continuous flexing with a lifetime of 6 million cycles, this shielded multiconductor cable supports demanding applications requiring durability, flexibility, and high performance. Featuring oil-resistant PVC and comprehensive standards compliance, it guarantees safety, longevity, and excellent signal integrity. Ideal for factory automation and control systems, order online now and enhance your industrial wiring with trusted quality and seamless reliability.
Buy Belden 76203WS now and experience unmatched reliability and performance in industrial automation and control systems.
