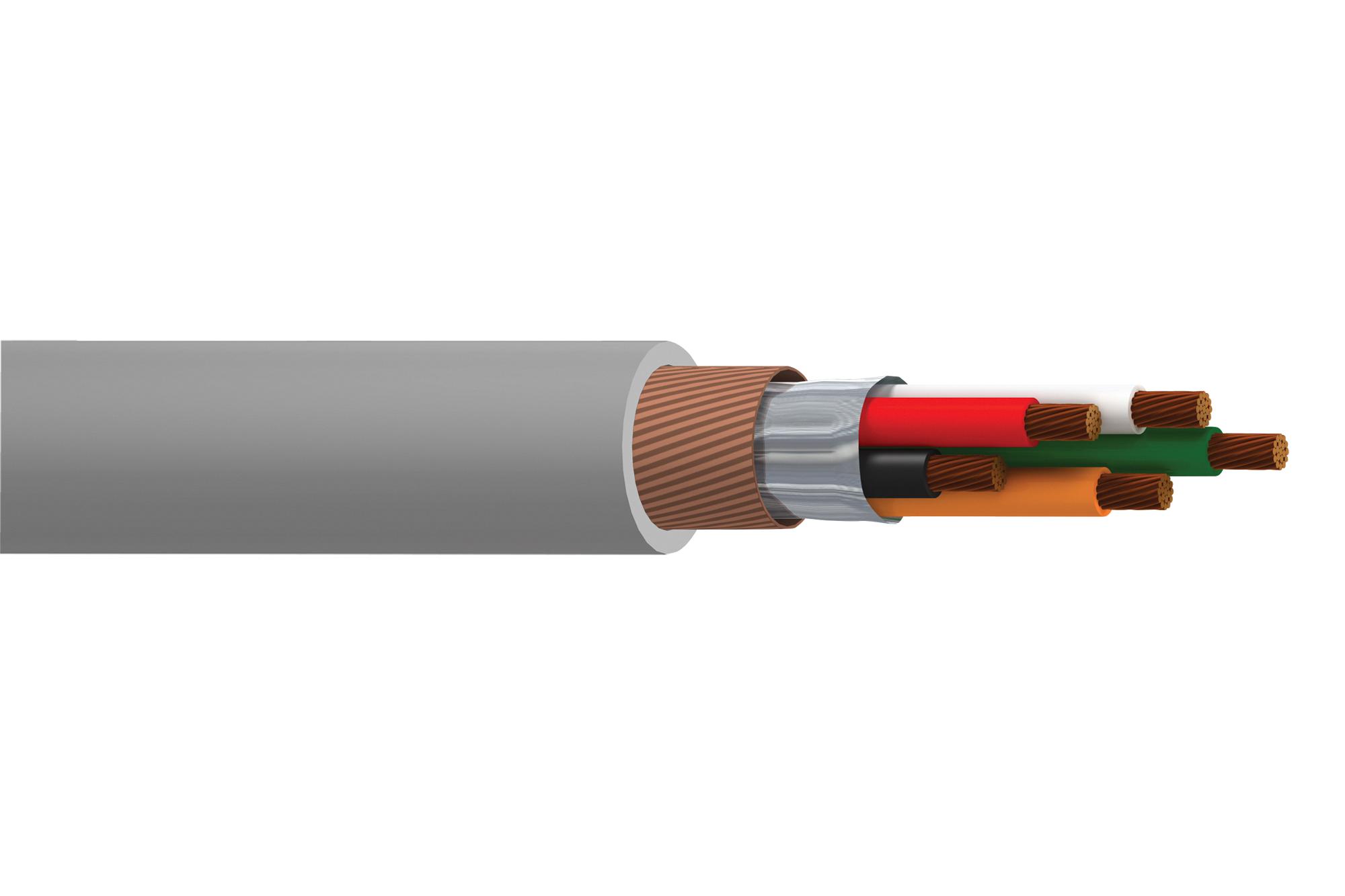

BELDEN 76207WS0081000 High Flex Multiconductor Data Cable
The MachFlex 76000WS Series multiconductor data cable is engineered for industrial environments demanding high flexibility and durability. It features 24 AWG stranded tinned copper conductors, PVC insulation, aluminum/polyester foil shield, and a tinned copper spiral shield with 90% coverage. Suitable for continuous flexing up to 6 million cycles, the cable's oil-resistant PVC jacket ensures longevity under harsh conditions. Operating from -10°C to 105°C (static) and +5°C to 105°C (dynamic), with a voltage rating of 300V, it’s ideal for automation, factory, and process control applications requiring reliable noise suppression and flexible wiring solutions.
BELDEN 76207WS0081000 High Flex Multiconductor Data Cable Specifications:
- Conductor: 24 AWG stranded (10x34) tinned copper
- Insulation Material: PVC
- Outer Shield Material: Aluminum/Polyester Foil, Tinned Copper Spiral Shield with 90% coverage
- Outer Jacket Material: Oil-resistant PVC
- Overall Nominal Diameter: 6.426 mm
- Bulk Cable Weight: 59.528 kg/km
- Maximum Recommended Pulling Tension: 120.101 N
- Minimum Bend Radius: 50.800 mm
- Flex Cycle Rating: 6 million flexes
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Applicable Standards & Compliance: UL, RoHS, CSA Flame Test, EU Directive 2011/65/EU
- Maximum Operating Voltage: 300V
- Electrical Resistance, Capacitance, and Inductance are within industry standards for high-flex data cables
Buy the Belden Series 76000WS Multiconductor Data Cable: 76207WS
Discover the high-flex multiconductor data cable from Belden’s Series 76000WS. Designed for demanding industrial applications, it features foil and spiral shielding for excellent noise reduction, flexible conductors, and an oil-resistant PVC jacket for durability. Capable of withstanding 6 million flex cycles, this cable supports continuous dynamic environments while operating safely within a temperature range of -10°C to 105°C. With a voltage rating of 300V, it’s perfect for automation, factory, and process control systems requiring reliable and flexible wiring solutions.
Order your Belden Series 76000WS 76207WS high-flex multiconductor data cable today and ensure your industrial projects benefit from superior durability, noise immunity, and reliable performance.
Frequently Asked Questions
Where can I buy BELDEN 76207WS0081000?
You can click on the BUY or RFQ button to purchase 76207WS0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 76207WS0081000?
You can download the 76207WS0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 76207WS0081000?
BELDEN
