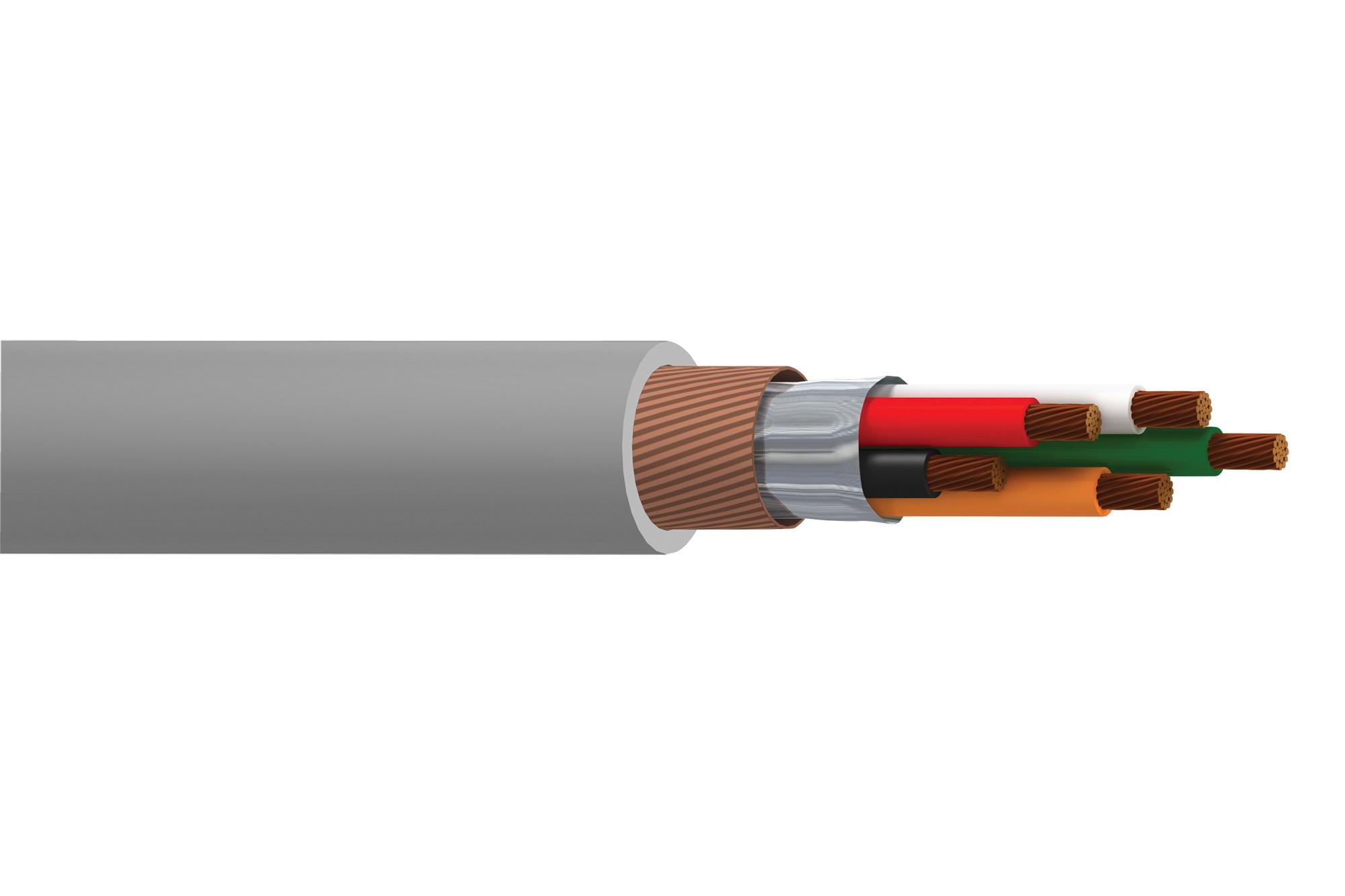

BELDEN 76212WS0081000 Flexible Data Cable
The MachFlex™ 76000WS Series Multiconductor Foil/Spiral Shielded Data Cable is designed for industrial and automation applications requiring flexible, space-efficient cabling. It supports continuous flexing up to 6 million cycles, featuring a flexible conductor, insulation, and jacket materials. The cable offers effective shielding, a durable oil-resistant PVC jacket, and a temperature range from -10°C to 105°C in static conditions and +5°C to 105°C in dynamic conditions. Its voltage rating is 300V, making it suitable for various industrial automation and process control environments.
BELDEN 76212WS0081000 Flexible Data Cable Specifications:
- Conductor: 24 AWG stranded (10x34) tinned copper
- Insulation Material: PVC
- Outer Shield: Aluminum/Polyester foil, Tinned copper spiral shield, 90% coverage
- Outer Jacket Material: Oil-resistant PVC
- Overall Diameter: 8.306 mm
- Bulk Cable Weight: 89.292 kg/km
- Max Pulling Tension: 200.169 N
- Bond Radius (static and dynamic): 66.040 mm
- Flex Cycle Rating: 6 Million flexes
- Flame Test: CSA FT4
- Suitability for Burial: Yes
- Temperature Range: -10°C to 105°C static, +5°C to 105°C dynamic
- Voltage Rating: 300V
- Standards: UL, RoHS, REACH, CSA AWM II A/B
- Environmental Compliance: EU Directive 2011/65/EU (RoHS2), China RoHS
- Applicable Agencies: UL, CSA
- Color Code: Various per specifications
Buy the Buy Belden 76212WS Part Number 76212WS0081000 Online
Purchase the Belden 76212WS flexible data cable online today to ensure reliable, space-efficient, and durable wiring for industrial automation projects. Designed for continuous flexing up to 6 million cycles, this shielded cable features a PVC jacket and high-quality tinned copper conductors. Its effective foil and spiral shielding provide excellent interference protection, making it ideal for critical industrial applications. With a voltage rating of 300V and operating temperatures from -10°C to 105°C, it guarantees long-lasting performance, durability, and compliance with major safety standards. Order now for fast delivery and trusted quality.
Get Belden 76212WS today—built for continuous flexing and industrial ruggedness.
