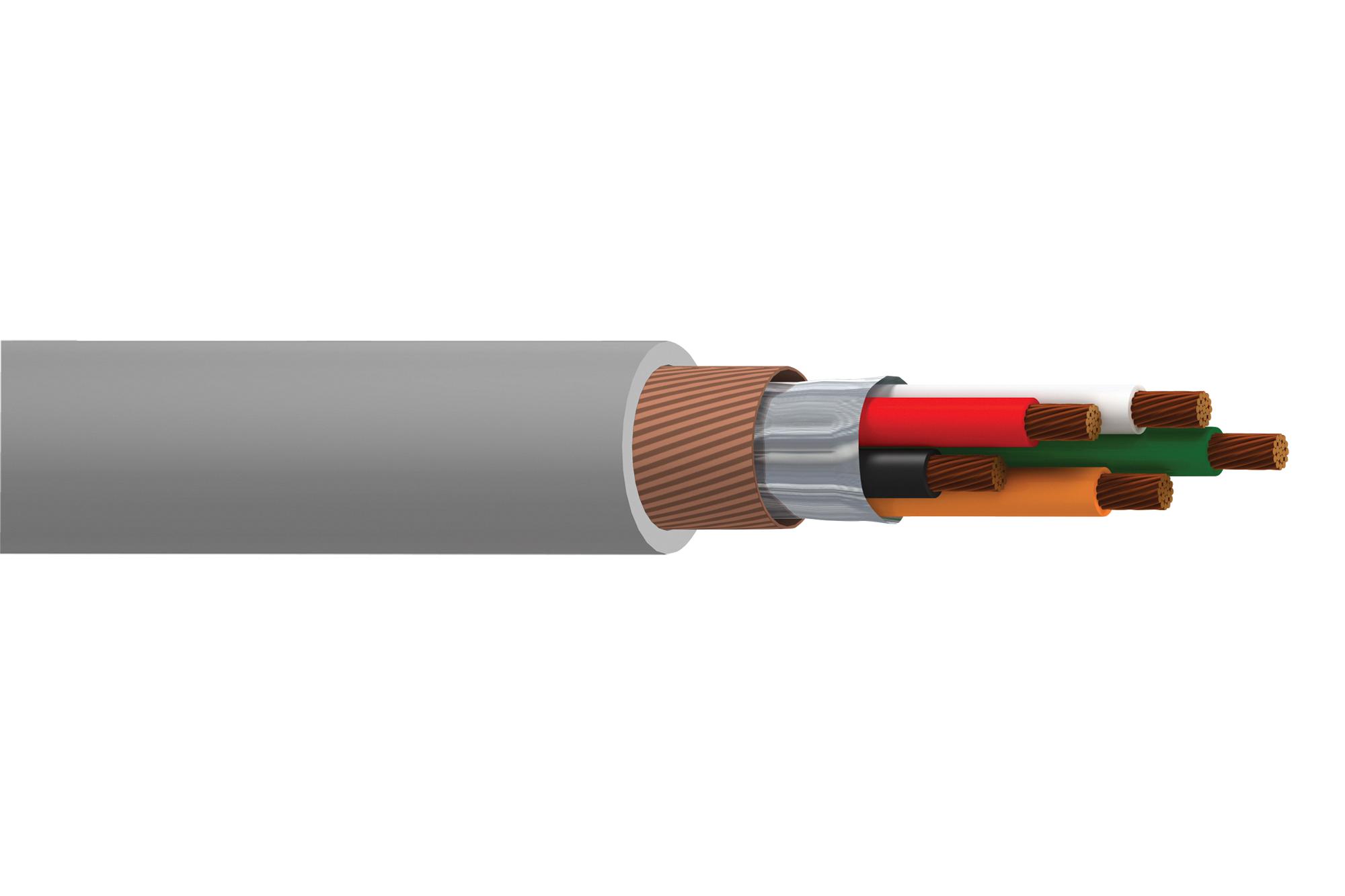

BELDEN 76225WS008100 Flexible Data Cable
The 76225WS cable is a multi-conductor, flexible data cable rated for 300V, featuring a foil/spiral shield with 90% coverage, suitable for continuous flexing applications with a life cycle of up to 6 million flexes. It comprises 24 AWG stranded tinned copper conductors with PVC insulation, an aluminum/polyester foil shield, and a tin-plated copper spiral shield. The oil-resistant PVC jacket provides durability in demanding environments. Designed for data transmission, automation, and control systems, it ensures excellent electrical performance and high flexibility for industrial applications.
BELDEN 76225WS008100 Flexible Data Cable Specifications:
- Conductor: 24 AWG stranded (10x34) tinned copper
- Insulation: PVC, color-coded
- Outer Shield: Aluminum/Polyester foil with 90% coverage, tin-plated copper spiral shield
- Outer Jacket Material: Oil-resistant PVC
- Jacket Outer Diameter: 10.058 mm
- Mechanical Characteristics: Bulk weight 144.355 Kg/km, max pulling tension 382.545 N, minimum bend radius 81.280 mm
- Electrical Characteristics: Nominal inductance 0.623 μH, conduction resistance varies, capacitance and shield resistance specified
- Voltage Rating: 300V, UL/CSA flame test FT4
- Flex Cycle Rating: 6 million flexes
- Temperature Range: -10°C to +105°C static, +5°C to +105°C dynamic
- Compliance: RoHS 2, REACH, CE, UL, CSA, China RoHS
Buy the Belden 76225WS – Reliable Data Cable for Industrial Applications
Choose the Belden 76225WS flexible data cable for your industrial applications. Featuring 24 AWG stranded copper conductors, foil/spiral shield, and oil-resistant PVC jacket, it offers excellent flexibility and electrical performance for continuous flexing and demanding environments. Suitable for data transmission, automation, and control systems, this cable ensures reliable signal integrity and high durability. Easy to order online, it’s an ideal choice for professionals seeking quality and performance in industrial wiring solutions.
Order your Belden 76225WS multi-conductor flexible data cable today and ensure high performance and durability in your industrial projects.
