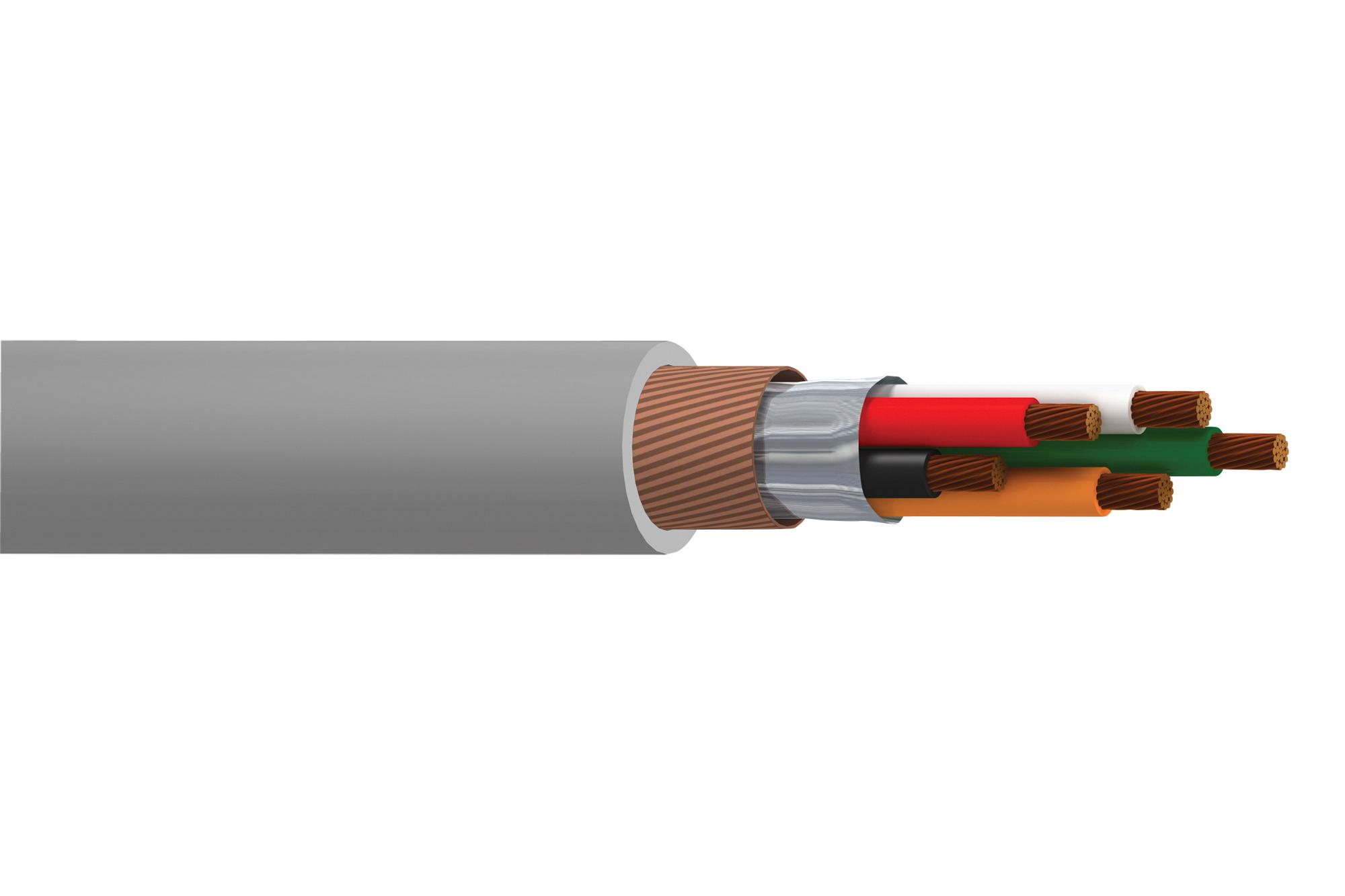

BELDEN 76303WS008100 Multi-Conductor Cable
The BELDEN 76303WS is a multi-conductor cable ideal for data applications requiring flexibility and durability. Constructed with 22 AWG stranded tinned copper conductors, PVC insulation, and a robust aluminum/polyester foil and tinned copper spiral shield, this cable provides excellent signal integrity and protection against electromagnetic interference. Its oil-resistant PVC jacket and ability to withstand up to 6 million flex cycles make it suitable for demanding environments. Common applications include dynamic data transmission, robotics, and industrial automation where continuous flexing is required.
BELDEN 76303WS008100 Multi-Conductor Cable Specifications:
- Conductor AWG: 22
- Number of Conductors: 3
- Conductor Stranding: 19x34
- Conductor Material: TC - Tinned Copper
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.254
- Insulation Color Code: Black, Red, White
- Outer Shield Material (Tape): Aluminum/Mylar
- Outer Shield Coverage (Tape): 100.000%
- Outer Shield Material (Serve): TC - Tinned Copper
- Outer Shield Coverage (Serve): 90.000%
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Wall Thickness (mm): 1.016
- Overall Nominal Diameter: 5.512 mm
- Bulk Cable Weight: 50.599 Kg/Km
- Max Recommended Pulling Tension: 100.529 N
- Min Bend Radius/Minor Axis: 43.180 mm
- Min Bend/Installation: 43.180 mm
- Min Bend Radius (Continuous Flexing): 43.180 mm
- Flex Cycle Rating: 6 Million Flexes
- NEC/UL Specification: CM
- CEC/C(UL) Specification: CMG
- EU Directive 2011/65/EU (ROHS II): Yes
- MII Order #39 (China RoHS): Yes
- Customer Part Number Reference Specification: AWM/STYLE 10002, AWM/STYLE 2661, CSA AWM I/II A/B
- CSA Flame Test: FT4
- Suitability - Burial: Yes
- Nominal Inductance (µH/m): 0.558
- DCR @ 20°C (Ohm/km) Conductor: 50.199
- DCR @ 20°C (Ohm/km) Outer Shield: 20.014
- Max Operating Voltage - UL: 300V
- Nominal Capacitance Conductor to Conductor (pF/m) @ 0.001 MHz: 124.678
- Temperature Range (static): -10 to 105°C
- Temperature Range (dynamic): +5 to 105°C
